SPECjbb2015 Report for jbb2015-20210728-00697 : 185453 max-jOPS ; 76686 critical-jOPS

SUT Description

Hardware hw_1
Name	NF3180A6
Vendor	Inspur Corporation
Vendor URL	http://www.inspur.com/
Available	Aug-2021
Model	NF3180A6
Form Factor	1U
CPU Name	AMD EPYC 7713P
CPU Characteristics	64 core, 2.0GHz, 256MB L3 Cache (Max Boost Clock up to 3.675 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	1.6.1 released Jun-2021
CPU Frequency (MHz)	2000
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	512KB (I+D) on chip per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480GB SATA SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32GB
Memory Details	16 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	1 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	4.18.0-193
Available	Apr-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 16.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 16.0.2
Available	Jul-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning L1 Stream HW Prefetcher=Disabled L2 Stream HW Prefetcher=Disabled NUMA Nodes per socket=NPS4 cTDP Control=Manual cTDP=240
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 655360 tuned-adm profile throughput-performance echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xmx29g -Xms29g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2
Tuning	numactl used to affinitize each Backend JVM to a single NUMA node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	numactl used to affinitize each TxInjector JVM to a single NUMA node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	183480	185453	187425	189398	191371

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	54583	60173	75956	93712	113441	76686

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973
1000us	1973 / 3946	1973 / 3946	1973 / 3946	1973 / 3946	- / 1973	- / 1973
5000us	169669 / 171642	157832 / 159805	114428 / 25648	57214 / 15783	11837 / 13810	- / 1973
10000us	171642 / 173615	159805 / 161778	132184 / 134157	108509 / 106537	57214 / 53268	1973 / 3946
25000us	173615 / 175588	163751 / 165724	147967 / 149940	128238 / 130211	61160 / 59187	3946 / 5919
50000us	175588 / 177561	165724 / 167696	149940 / 151913	136130 / 138103	74970 / 76943	3946 / 5919
75000us	175588 / 177561	169669 / 171642	153886 / 155859	142049 / 144022	92726 / 94699	3946 / 5919
100000us	175588 / 177561	169669 / 171642	157832 / 159805	147967 / 149940	114428 / 112455	3946 / 5919
200000us	177561 / 179534	173615 / 175588	161778 / 163751	159805 / 161778	153886 / 155859	118374 / 7892
500000us	181507 / 183480	177561 / 179534	173615 / 175588	169669 / 171642	165724 / 167696	159805 / 161778
1000000us	185453 / -	181507 / 183480	179534 / 181507	179534 / 181507	175588 / 177561	169669 / 167696

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

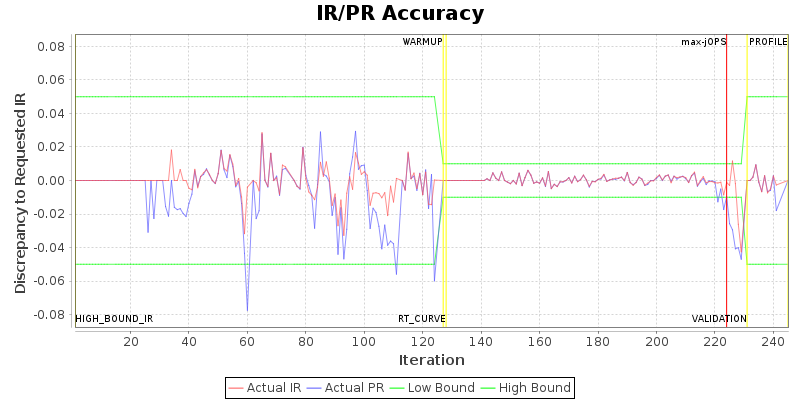

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	224
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.worker.pool.max	256	112
specjbb.comm.connect.worker.pool.min	1	64
specjbb.forkjoin.workers	128	{Tier1=100, Tier2=1, Tier3=20}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	128	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 197290 IR

High-bound (settled) is 190974 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Inspur Corporation NF3180A6	185453 SPECjbb2015-MultiJVM max-jOPS 76686 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation	Test Sponsor: Inspur Corporation	Test location: Jinan, China	Test date: Jul 26, 2021
SPEC license #: 3358	Hardware Availability: Aug-2021	Software Availability: Jul-2021	Publication: Fri Aug 13 11:52:56 EDT 2021
