SPECjbb2015 Report for jbb2015-20210701-00692 : 420774 max-jOPS ; 165211 critical-jOPS

SUT Description

Hardware hw_1
Name	RS700A-E11-RS12U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Mar-2021
Model	RS700A-E11-RS12U
Form Factor	1U
CPU Name	AMD EPYC 7763
CPU Characteristics	64 Core, 2.45 GHz, 256 MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	Version 0404
CPU Frequency (MHz)	2450
Primary Cache	32 KB(I) + 32 KB(D) per core
Secondary Cache	512 KB (I+D) per core
Tertiary Cache	256 MB (I+D) per chip
Other Cache	None
Disk	1 x 1 TB SATA SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP2
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.3.18-22-default
Available	Jul-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 16.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 16.0.1
Available	Apr-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Engine Boost = Enabled L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable Enhanced REP MOVSB/STOSB = Disabled Fast Short REP MOVSB = Disabled DLWM Support = Disabled NUMA nodes per socket = NPS4 Memory Interleaving = Disabled ACPI SRAT L3 Cache as NUMA Domain = Enabled APBDIS = 1 Fix SOC P-state = P0
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 655360 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000
Tuning	Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,128-135 --localalloc numactl --physcpubind=8-15,136-143 --localalloc numactl --physcpubind=16-23,144-151 --localalloc numactl --physcpubind=24-31,152-159 --localalloc numactl --physcpubind=32-39,160-167 --localalloc numactl --physcpubind=40-47,168-175 --localalloc numactl --physcpubind=48-55,176-183 --localalloc numactl --physcpubind=56-63,184-191 --localalloc numactl --physcpubind=64-71,192-199 --localalloc numactl --physcpubind=72-79,200-207 --localalloc numactl --physcpubind=80-87,208-215 --localalloc numactl --physcpubind=88-95,216-223 --localalloc numactl --physcpubind=96-103,224-231 --localalloc numactl --physcpubind=104-111,232-239 --localalloc numactl --physcpubind=112-119,240-247 --localalloc numactl --physcpubind=120-127,248-255 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,128-135 --localalloc numactl --physcpubind=8-15,136-143 --localalloc numactl --physcpubind=16-23,144-151 --localalloc numactl --physcpubind=24-31,152-159 --localalloc numactl --physcpubind=32-39,160-167 --localalloc numactl --physcpubind=40-47,168-175 --localalloc numactl --physcpubind=48-55,176-183 --localalloc numactl --physcpubind=56-63,184-191 --localalloc numactl --physcpubind=64-71,192-199 --localalloc numactl --physcpubind=72-79,200-207 --localalloc numactl --physcpubind=80-87,208-215 --localalloc numactl --physcpubind=88-95,216-223 --localalloc numactl --physcpubind=96-103,224-231 --localalloc numactl --physcpubind=104-111,232-239 --localalloc numactl --physcpubind=112-119,240-247 --localalloc numactl --physcpubind=120-127,248-255 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	416200	420774	425348	429921	434495

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	112054	125775	171511	208100	244689	165211

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 4574	- / 4574	- / 4574	- / 4574	- / 4574	- / 4574
1000us	4574 / 9147	4574 / 9147	- / 4574	- / 4574	- / 4574	- / 4574
5000us	365890 / 370464	297286 / 301860	82325 / 86899	73178 / 77752	45736 / 50310	- / 4574
10000us	370464 / 375038	333875 / 338449	242402 / 246976	196666 / 201240	109767 / 114341	18295 / 9147
25000us	375038 / 379611	356743 / 361317	301860 / 306433	265271 / 269844	123488 / 128062	18295 / 9147
50000us	384185 / 388759	365890 / 370464	320154 / 324728	283565 / 288139	169224 / 173798	18295 / 9147
75000us	384185 / 388759	370464 / 375038	329301 / 333875	297286 / 301860	205813 / 210387	18295 / 9147
100000us	388759 / 393332	375038 / 379611	343022 / 347596	315580 / 320154	242402 / 246976	18295 / 9147
200000us	397906 / 402479	384185 / 388759	361317 / 365890	352170 / 356743	315580 / 320154	18295 / 9147
500000us	416200 / 420774	402479 / 407053	388759 / 393332	384185 / 388759	379611 / 384185	315580 / 306433
1000000us	420774 / -	416200 / 420774	411627 / 416200	411627 / 416200	402479 / 407053	379611 / 384185

Number of probes

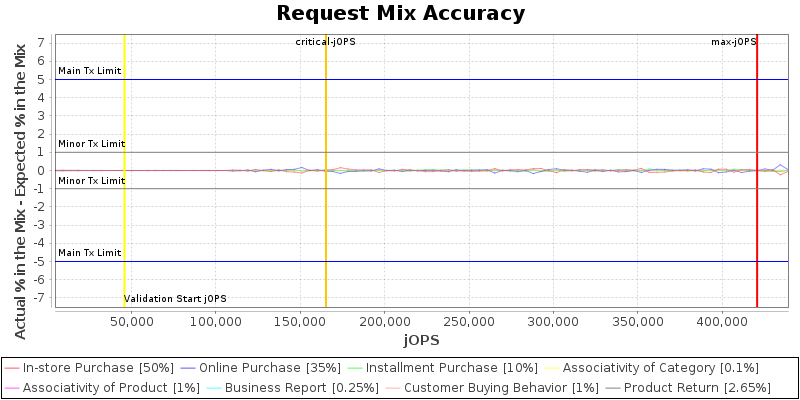

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

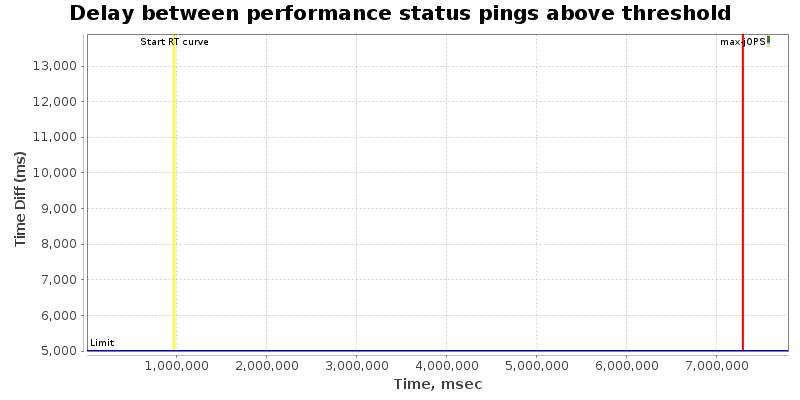

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	128	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	4	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	128	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111
specjbb.comm.connect.worker.pool.min	1	32	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64
specjbb.forkjoin.workers	256	{Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	256	32
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 457363 IR

High-bound (settled) is 442743 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

ASUSTeK Computer Inc. RS700A-E11-RS12U	420774 SPECjbb2015-MultiJVM max-jOPS 165211 SPECjbb2015-MultiJVM critical-jOPS
Tested by: ASUSTeK Computer Inc.	Test Sponsor: ASUSTeK Computer Inc.	Test location: Taipei, Taiwan	Test date: June 28, 2021
SPEC license #: 9016	Hardware Availability: Mar-2021	Software Availability: Apr-2021	Publication: Thu Jul 29 14:19:44 EDT 2021
