SPECjbb2015
Copyright © 2015-2021 Standard Performance Evaluation Corporation
Supermicro Supermicro X12DPG-QT6 Server 255529 SPECjbb2015-MultiJVM max-jOPS
198666 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: Jun 06, 2021
SPEC license #: 001176 Hardware Availability: Apr-2021 Software Availability: May-2021 Publication: Fri Jul 2 12:59:05 EDT 2021
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

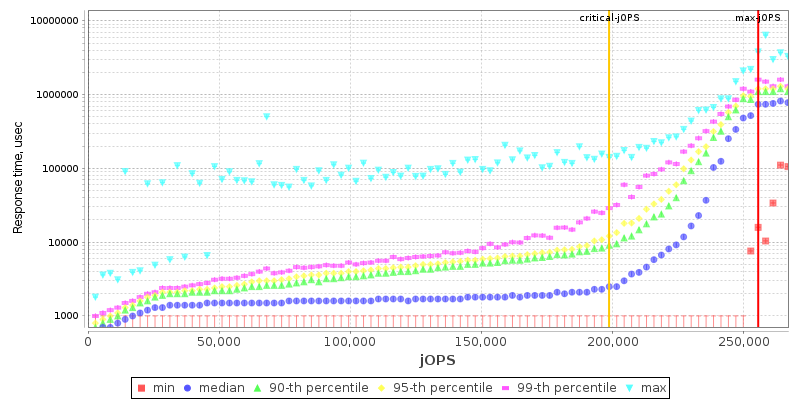

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSupermicro X12DPG-QT6
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableApr-2021
ModelX12DPG-QT6
Form Factor1U
CPU NameIntel(R) Xeon(R) Platinum 8380 CPU @ 2.30GHz
CPU Characteristics40core, 2.3GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.4GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
VersionV1.1 05/11/2021
CPU Frequency (MHz)2300
Primary Cache32KB(I)+48KB(D) per core
Secondary Cache1280KB (I+D) per core
Tertiary Cache61440KB (I+D) on chip per chip
Other CacheNone
Disk1 x Intel 200GB SSD
File Systembtrfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB
Memory Details64GB 2Rx4 RDIMM PC4-3200AA-RB4-12
# and type of Network Interface Cards (NICs)2 x 10 GbE NIC
Power Supply Quantity and Rating (W)2 x 2200w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 8.3
VendorRed Hat
Vendor URLhttp://www.redhat.com
Version4.18.0-240.el8.x86_64
AvailableNov-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • MLC Streamer Prefetching = Enabled
  • MLC Spatial Prefetching = Enabled
  • DCU Streamer Prefetching = Disabled
  • DCU IP Prefetching = Enabled
  • HT Enabled
  • Turbo Enabled
  • SNC Disabled
  • Memory Patrol Scrub Disabled
  • Energy Performance set to Performance
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning

  • ulimit -n 1024000
  • echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us
  • echo 0 > /proc/sys/kernel/sched_child_runs_first
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 9 > /proc/sys/kernel/sched_nr_migrate
  • echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms
  • echo 1000000 > /proc/sys/kernel/sched_rt_period_us
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/sched_schedstats
  • echo 1 > /proc/sys/kernel/sched_tunable_scaling
  • echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/dafrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
  • echo 274877906944 > /proc/sys/kernel/shmmax
  • echo 274877906944 > /proc/sys/kernel/shmallecho
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning None
Notes

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms225g -Xmx225g -Xmn215g -XX:ParallelGCThreads=40 -XX:-PrintGCDetails
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 252690 255529 258368 261207 264047
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 166093 194485 205842 211521 220038 198666
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 5678 / 8518 2839 / 5678 - / 2839 - / 2839 - / 2839 - / 2839
1000us 198745 / 201584 17035 / 19874 11357 / 14196 8518 / 11357 2839 / 5678 - / 2839
5000us 235654 / 238494 212941 / 215780 147639 / 150478 130604 / 133443 102212 / 99372 25553 / 14196
10000us 235654 / 238494 224298 / 227137 201584 / 204423 190227 / 193066 164674 / 167513 45427 / 14196
25000us 241333 / 244172 232815 / 235654 218619 / 221458 210102 / 212941 195905 / 193066 45427 / 14196
50000us 241333 / 244172 235654 / 238494 224298 / 227137 221458 / 224298 207262 / 204423 45427 / 14196
75000us 241333 / 244172 235654 / 238494 227137 / 229976 224298 / 227137 210102 / 212941 107890 / 14196
100000us 244172 / 247011 235654 / 238494 229976 / 232815 227137 / 229976 218619 / 221458 153317 / 34071
200000us 247011 / 249850 241333 / 244172 235654 / 238494 235654 / 238494 227137 / 229976 212941 / 68141
500000us 255529 / - 249850 / 252690 241333 / 244172 241333 / 244172 238494 / 241333 229976 / 68141
1000000us 255529 / - 255529 / - 252690 / 255529 252690 / 255529 247011 / 249850 244172 / 247011
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

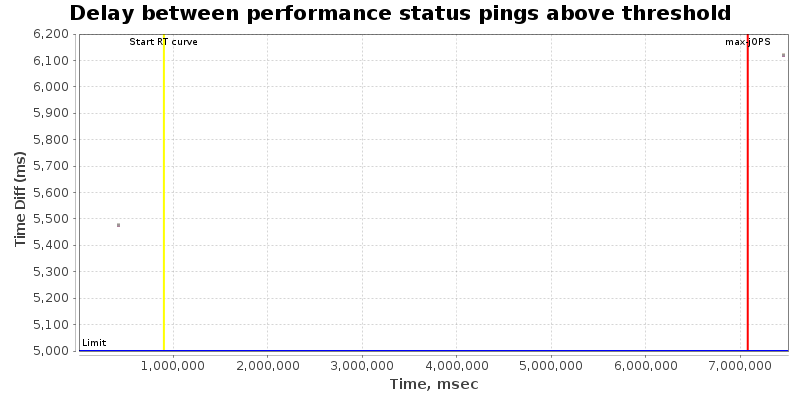

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM Group3.Backend.beJVM Group4.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 232
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24 1 1 1 1
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.customerDriver.threads 64 {probe=75, saturate=85}
specjbb.forkjoin.workers 160 {Tier1=248, Tier2=8, Tier3=50}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 160 223
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 283921 IR
High-bound (settled) is 268467 IR
