Cisco Systems Cisco UCS C245 M6 411627 SPECjbb2015-MultiJVM max-jOPS
194793 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: May 29, 2021
SPEC license #: 9019 Hardware Availability: June-2021 Software Availability: April-2021 Publication: Thu Jun 17 13:36:44 EDT 2021
Benchmark Results Summary

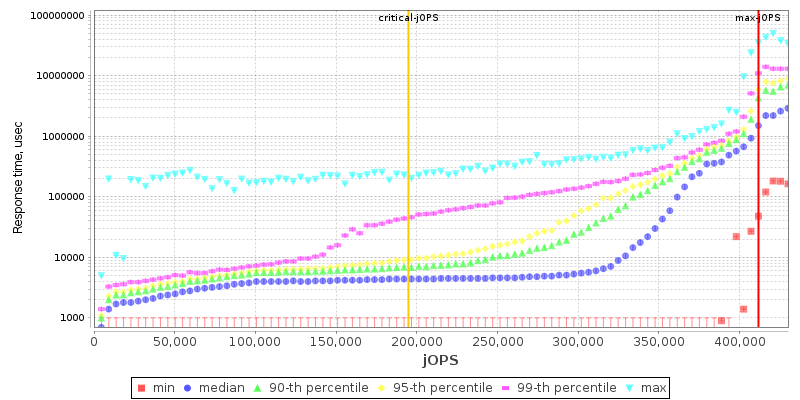

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttps://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C245 M6
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableJune-2021
ModelCisco UCS C245 M6
Form Factor2U Rack
CPU NameAMD EPYC 7763
CPU Characteristics64-Core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionC245M6.4.2.200.3.0518212014
CPU Frequency (MHz)2450
Primary Cache32 KB I+32 KB D per core
Secondary Cache512 KB I+D per core
Tertiary Cache256 MB I+D per chip
Other CacheNone
Disk1 x 960 GB M.2 SSD SATA
File SystemXFS
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128 GB 4Rx4
Memory Details128 GB 4Rx4 PC4-3200V-L
# and type of Network Interface Cards (NICs)2x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18-22-default
AvailableJuly-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 16.0.1
AvailableApril-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • L1 Stream HW Prefetcher: Disable
  • L2 Stream HW Prefetcher: Disable
  • Global C-state Control: Enabled
  • Enhanced REP MOVSB/STOSB: Disabled
  • Fast Short REP MOVSB: Disabled
  • NUMA Nodes per socket: NPS4
  • ACPI SRAT L3 Cache As NUMA Domain: Disabled
  • 4 Link xGMI max speed: 18Gbps
  • Determinism Control: Manual
  • Determinism Slider: Power
  • EDC Control: Manual
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • ulimit -u 4078332
  • ulimit -n 1024000
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000
Tuning Used numactl to affinitize each Backend JVM to 8 Cores per 16 Threads. For example:
  • numactl --physcpubind=0-7,128-135 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to affinitize each Transaction Injector JVM to 8 Cores per 16 Threads. For example:
  • numactl --physcpubind=0-7,128-135 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 407053 411627 416200 420774 425348
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 134922 162364 198953 244689 262984 194793
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4574 / 9147 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
1000us 4574 / 9147 4574 / 9147 4574 / 9147 - / 4574 - / 4574 - / 4574
5000us 352170 / 356743 283565 / 288139 86899 / 91473 77752 / 82325 54884 / 50310 4574 / 9147
10000us 356743 / 361317 324728 / 329301 242402 / 246976 205813 / 210387 132635 / 137209 18295 / 9147
25000us 361317 / 365890 343022 / 347596 297286 / 301860 274418 / 278991 164651 / 160077 18295 / 9147
50000us 365890 / 370464 352170 / 356743 320154 / 324728 297286 / 301860 196666 / 201240 18295 / 9147
75000us 365890 / 370464 356743 / 361317 329301 / 333875 311007 / 315580 242402 / 246976 18295 / 9147
100000us 370464 / 375038 361317 / 365890 333875 / 338449 320154 / 324728 260697 / 265271 18295 / 9147
200000us 388759 / 393332 365890 / 370464 356743 / 361317 347596 / 352170 329301 / 333875 182945 / 36589
500000us 402479 / 407053 393332 / 397906 375038 / 379611 375038 / 379611 365890 / 370464 329301 / 333875
1000000us 411627 / - 407053 / 411627 397906 / 402479 397906 / 402479 388759 / 393332 370464 / 361317

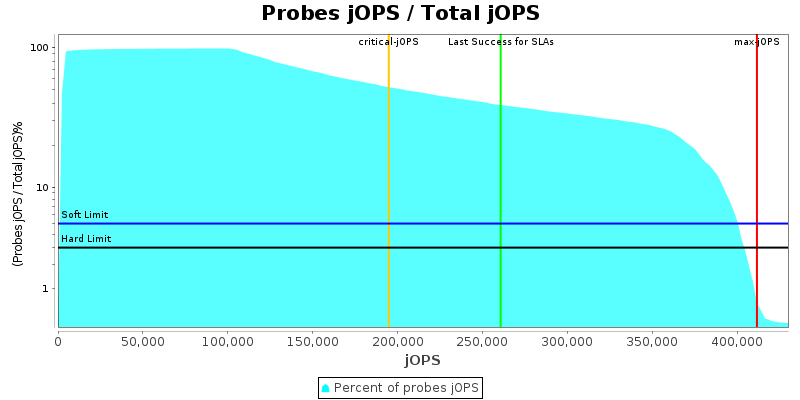

Probes jOPS / Total jOPS

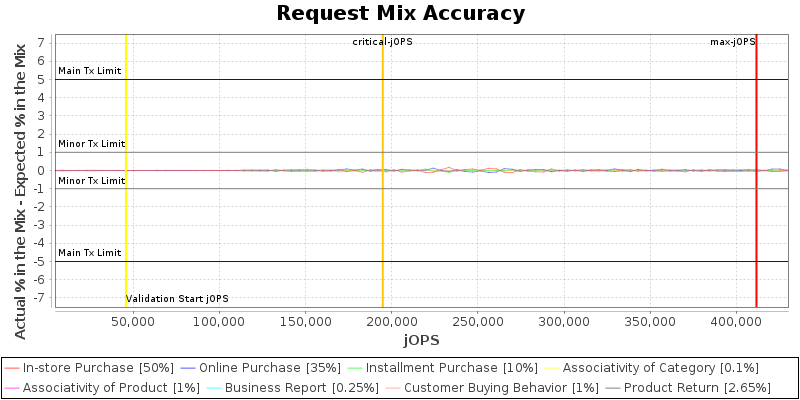

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 128 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 128 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111
specjbb.comm.connect.worker.pool.min 1 32 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64
specjbb.forkjoin.workers 256 {Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 457363 IR
High-bound (settled) is 432520 IR
