Lenovo Global Technology ThinkSystem SR655 141178 SPECjbb2015-Composite max-jOPS
124799 SPECjbb2015-Composite critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: May 19, 2021
SPEC license #: 9017 Hardware Availability: Jun-2021 Software Availability: May-2021 Publication: Fri Jun 11 14:27:30 EDT 2021
Benchmark Results Summary

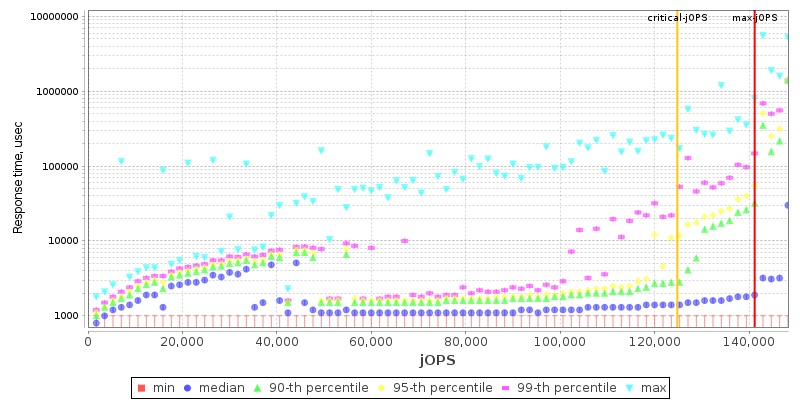

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads64
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR655
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableJun-2021
ModelThinkSystem SR655
Form Factor2U
CPU NameAMD EPYC 7763
CPU Characteristics64 core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System64
Threads Per Core1
VersionCFE125S
CPU Frequency (MHz)2450
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 2Rx4 PC4-3200AA-R, running at 2933
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1100W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.1935)
AvailableMay-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SMT Mode set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms800g -Xmx800g -Xmn795g -XX:SurvivorRatio=50 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=64
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 139414 141178 142943 144708 146473
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 106766 122354 126472 134413 136325 124799
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 77648 / 3529 - / 1765 - / 1765 - / 1765 - / 1765 - / 1765
1000us 141178 / 12353 3529 / 5294 1765 / 3529 - / 1765 - / 1765 - / 1765
5000us 141178 / - 141178 / 44118 127061 / 31765 121766 / 30000 109413 / 26471 42354 / 7059
10000us 141178 / - 141178 / - 128825 / 130590 121766 / 120002 109413 / 104119 42354 / 7059
25000us 141178 / - 141178 / - 137649 / 139414 134119 / 135884 123531 / 120002 51177 / 7059
50000us 141178 / - 141178 / - 141178 / - 139414 / 141178 128825 / 125296 75883 / 7059
75000us 141178 / - 141178 / - 141178 / - 141178 / - 135884 / 127061 91766 / 7059
100000us 141178 / - 141178 / - 141178 / - 141178 / - 139414 / 127061 109413 / 7059
200000us 141178 / - 141178 / - 141178 / - 141178 / - 141178 / - 125296 / 104119
500000us 141178 / - 141178 / - 141178 / - 141178 / - 141178 / - 139414 / 127061
1000000us 141178 / - 141178 / - 141178 / - 141178 / - 141178 / - 141178 / 134119
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

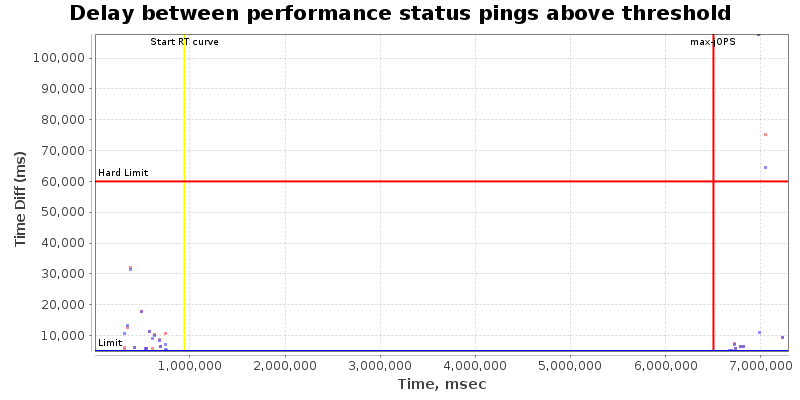

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 12
specjbb.forkjoin.workers 64 {Tier1=180, Tier2=1, Tier3=17}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 176473 IR
High-bound (settled) is 147284 IR
