SPECjbb2015 Report for jbb2015-20210210-00595 : 359630 max-jOPS ; 310694 critical-jOPS

SUT Description

Hardware hw_1
Name	Superdome Flex 280
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Dec-2020
Model	Superdome Flex 280
Form Factor	5U Rack
CPU Name	Intel Xeon Platinum 8380H CPU
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	1.0.176
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 1 TB 7200 RPM SATA
File System	XFS
Memory Amount (GB)	3072
# and size of DIMM(s)	24 x 128 GB
Memory Details	128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	4 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	April-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 15.0.2
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL:http://bugs.openjdk.java.net/secure/Dashboard.jspa/
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Memory Patrol Scrubbing=Disabled Snoop Throttle Configuration=Disabled Enhanced Processor Performance=Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	SELinux=disabled tuned-adm profile=latency-performance ulimit -n 655350 echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 155000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:UseAVX=0
Tuning	Used numactl to affinitize each Backend JVM to each NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	351456	355543	359630	363716	367803

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	247245	324892	324892	333066	333066	310694

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4087 / 8173	- / 4087	- / 4087	- / 4087	- / 4087	- / 4087
1000us	237029 / 241115	12260 / 16347	8173 / 12260	4087 / 8173	4087 / 8173	- / 4087
5000us	347369 / 351456	331023 / 335109	216595 / 220682	175728 / 179815	118514 / 114428	- / 4087
10000us	351456 / 355543	343283 / 347369	314676 / 318763	294242 / 298329	245202 / 249289	20433 / 24520
25000us	351456 / 355543	343283 / 347369	339196 / 343283	331023 / 335109	322849 / 326936	32694 / 24520
50000us	351456 / 355543	343283 / 347369	339196 / 343283	331023 / 335109	322849 / 326936	89907 / 24520
75000us	355543 / 359630	347369 / 351456	339196 / 343283	339196 / 335109	331023 / 335109	187988 / 53127
100000us	355543 / 359630	347369 / 351456	339196 / 343283	339196 / 343283	331023 / 335109	241115 / 77647
200000us	355543 / 359630	347369 / 351456	339196 / 343283	339196 / 343283	331023 / 335109	318763 / 314676
500000us	359630 / -	351456 / 355543	343283 / 347369	343283 / 347369	339196 / 343283	331023 / 326936
1000000us	359630 / -	359630 / -	355543 / 359630	351456 / 355543	351456 / 355543	339196 / 343283

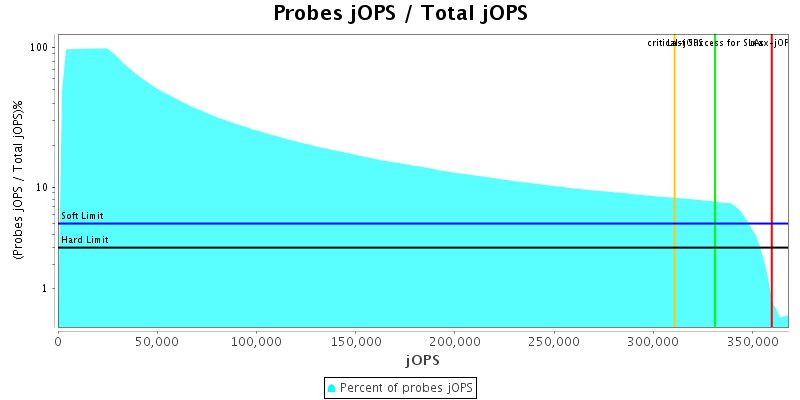

Number of probes

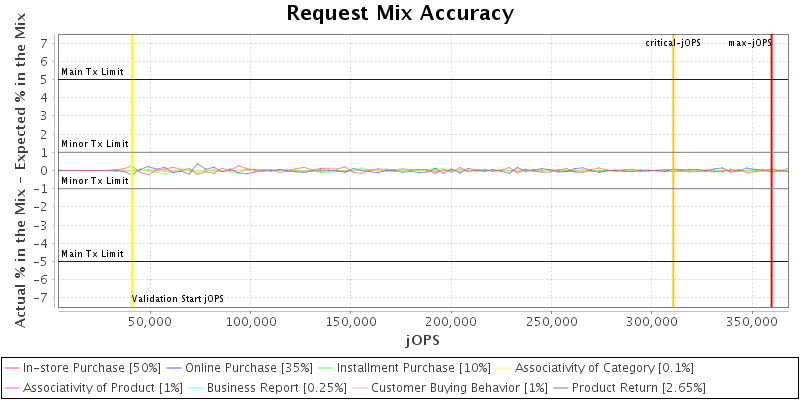

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

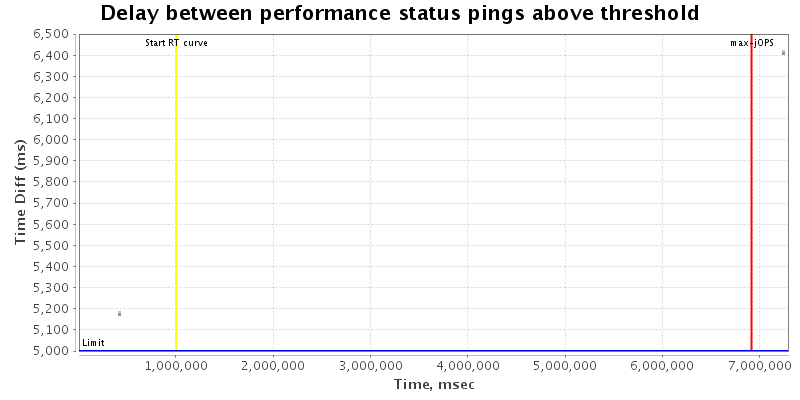

Delay between performance status pings during RT Curve (Response-Throughput Curve)

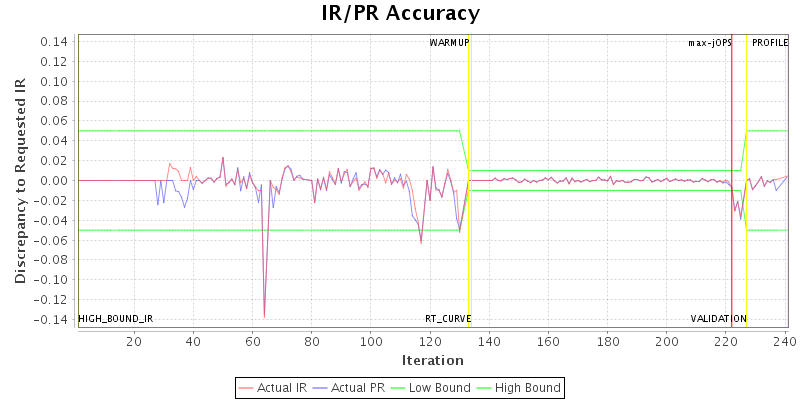

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	12
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	224	{Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count	1	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 408670 IR

High-bound (settled) is 378784 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise Superdome Flex 280	359630 SPECjbb2015-MultiJVM max-jOPS 310694 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Fort Collins, Colorado	Test date: January 26, 2021
SPEC license #: 3	Hardware Availability: Dec-2020	Software Availability: Jan-2021	Publication: Thu Feb 25 14:36:03 EST 2021

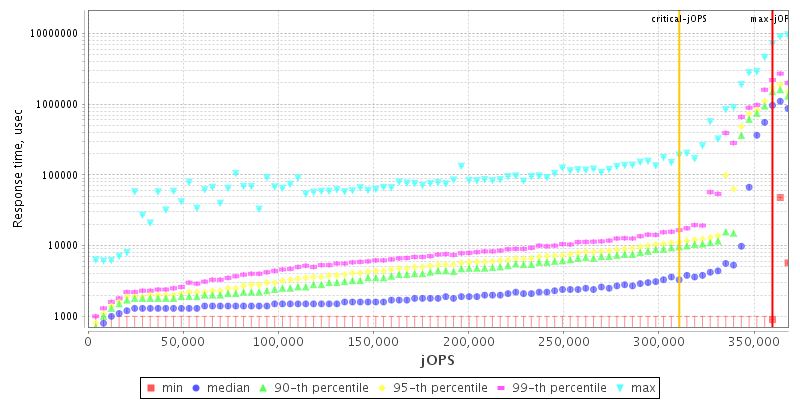

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
