Inspur Corporation NF8480M6 296475 SPECjbb2015-Composite max-jOPS
164224 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Jan 25, 2021
SPEC license #: 3358 Hardware Availability: Nov-2020 Software Availability: Jan-2021 Publication: Fri Feb 19 11:15:53 EST 2021
Benchmark Results Summary

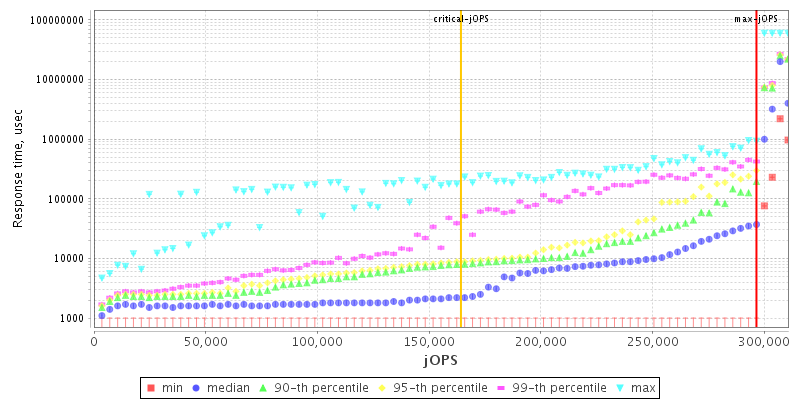

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF8480M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableNov-2020
ModelInspur NF8480M6
Form Factor4U
CPU NameIntel Xeon Platinum 8380H
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version4.09.08
CPU Frequency (MHz)2900
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 2TB NVMe SSD
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32GB
Memory Details48 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-193
AvailableApr-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 15.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 15.0.2
AvailableJan-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Sub-NUMA Clustering enabled
  • Energy Performance set to Performance
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • tuned-adm profile throughput-performance
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms650g -Xmx650g -Xmn600g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=112 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 292945 296475 300004 303534 307063
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 114119 157649 167649 192355 205885 164224
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3529 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
1000us 225885 / 229415 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
5000us 268239 / 271768 187061 / 190591 116472 / 120002 95295 / 98825 63530 / 67060 3529 / 7059
10000us 285886 / 289416 250592 / 254121 201179 / 204709 183532 / 187061 116472 / 109413 21177 / 17647
25000us 296475 / - 278827 / 282357 247062 / 250592 240003 / 236474 169414 / 151767 49412 / 24706
50000us 296475 / - 296475 / - 268239 / 271768 250592 / 254121 169414 / 165885 74119 / 24706
75000us 296475 / - 296475 / - 275298 / 278827 250592 / 254121 194120 / 190591 127061 / 24706
100000us 296475 / - 296475 / - 282357 / 285886 264709 / 268239 208238 / 201179 141178 / 24706
200000us 296475 / - 296475 / - 296475 / - 282357 / 285886 247062 / 250592 187061 / 137649
500000us 296475 / - 296475 / - 296475 / - 296475 / - 296475 / - 268239 / 271768
1000000us 296475 / - 296475 / - 296475 / - 296475 / - 296475 / - 296475 / -

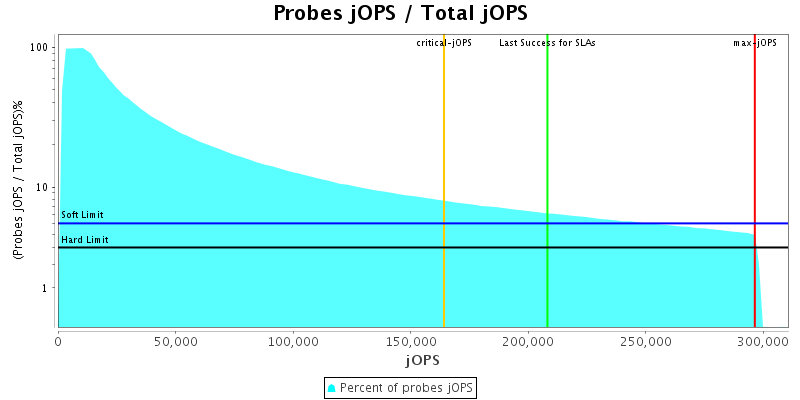

Probes jOPS / Total jOPS

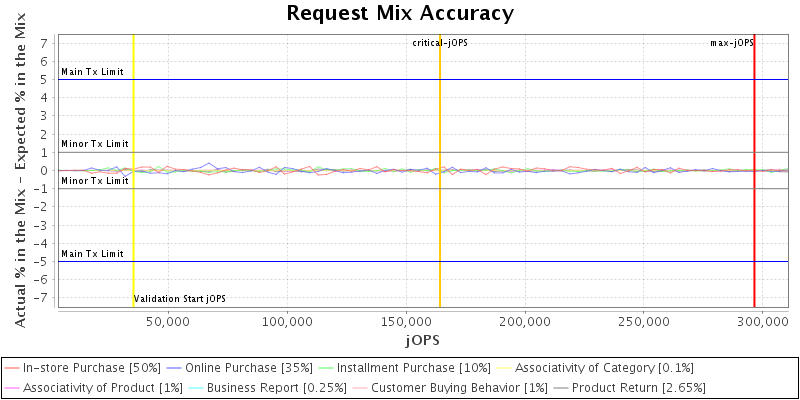

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

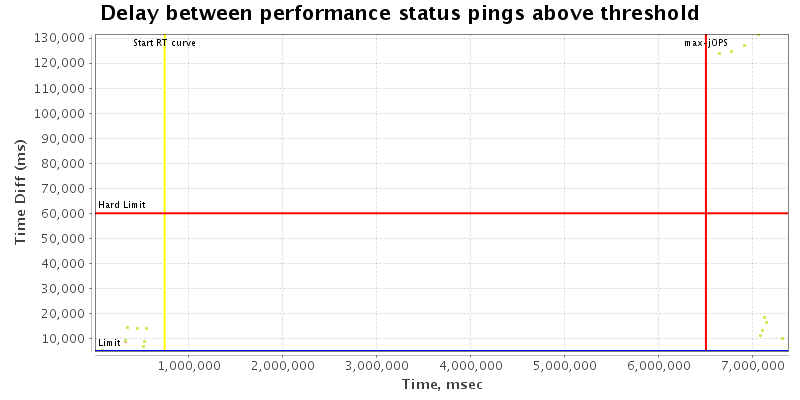

Delay between status pings

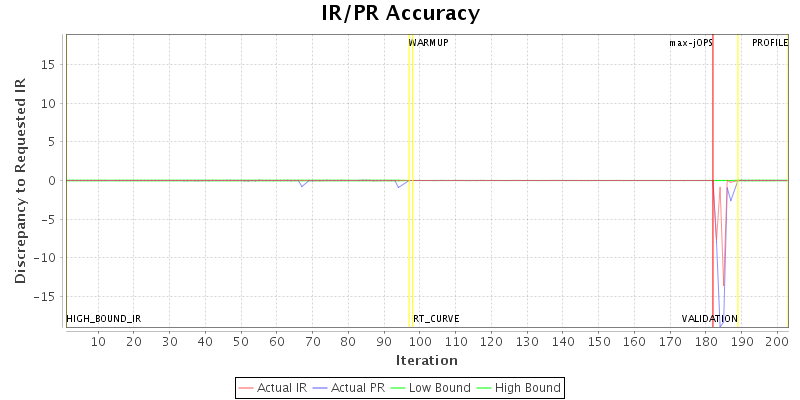

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 300
specjbb.customerDriver.threads 64 {probe=64, saturate=192, service=64}
specjbb.forkjoin.workers 224 {Tier1=200, Tier2=60, Tier3=30}
specjbb.group.count 1 2
specjbb.heartbeat.threshold 100000 800000
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 352946 IR
High-bound (settled) is 294155 IR
