Lenovo Global Technology ThinkSystem SR860 V2 339338 SPECjbb2015-MultiJVM max-jOPS
184937 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Dec 15, 2020
SPEC license #: 9017 Hardware Availability: Nov-2020 Software Availability: Nov-2020 Publication: Fri Jan 15 10:39:10 EST 2021
Benchmark Results Summary

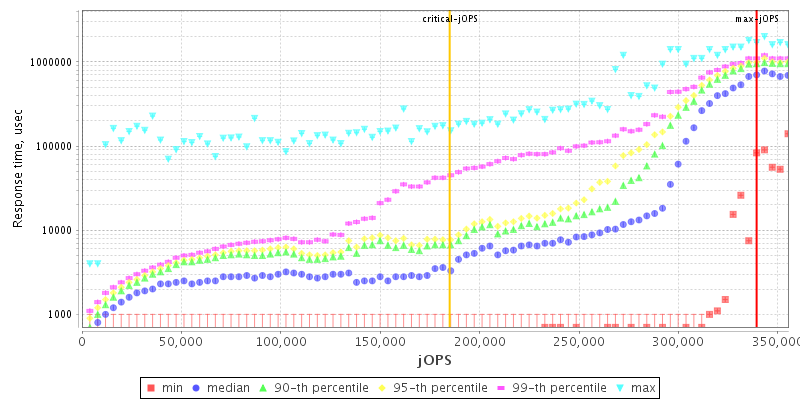

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR860 V2
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableNov-2020
ModelThinkSystem SR860 V2
Form Factor4U
CPU NameIntel Xeon Platinum 8380H
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionM5E107I
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)3072
# and size of DIMM(s)48 x 64 GB
Memory Details64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)2 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.1577)
AvailableNov-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 15.0.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 15.0.1
AvailableOct-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Enabled
  • Patrol Scrub set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+UseLargePages -Xms30g -Xmx30g -Xmn27g -XX:SurvivorRatio=28 -XX:InlineSmallCode=10k -XX:UseAVX=0 -XX:+UseRTMLocking -XX:TargetSurvivorRatio=95
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Affinitize each TxInjector JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 335392 339338 343284 347230 351175
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 132184 155859 191371 218991 250558 184937
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3946 / 7892 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 31566 / 27621 11837 / 15783 7892 / 11837 3946 / 7892 - / 3946 - / 3946
5000us 268314 / 272260 189398 / 193344 130211 / 74970 118374 / 67078 51295 / 55241 7892 / 11837
10000us 291988 / 295934 260422 / 264368 213073 / 197289 189398 / 193344 130211 / 134157 7892 / 11837
25000us 303826 / 307772 291988 / 295934 268314 / 272260 252531 / 256476 153886 / 157832 7892 / 11837
50000us 307772 / 311717 295934 / 299880 280151 / 284097 264368 / 268314 189398 / 193344 7892 / 11837
75000us 307772 / 311717 299880 / 303826 284097 / 288043 268314 / 272260 217018 / 220964 67078 / 11837
100000us 307772 / 311717 299880 / 303826 288043 / 291988 280151 / 284097 248585 / 252531 102591 / 11837
200000us 315663 / 319609 307772 / 311717 295934 / 299880 291988 / 295934 284097 / 288043 209127 / 35512
500000us 339338 / - 327501 / 331446 311717 / 315663 307772 / 311717 303826 / 307772 288043 / 268314
1000000us 339338 / - 339338 / - 339338 / - 339338 / - 331446 / 335392 303826 / 272260

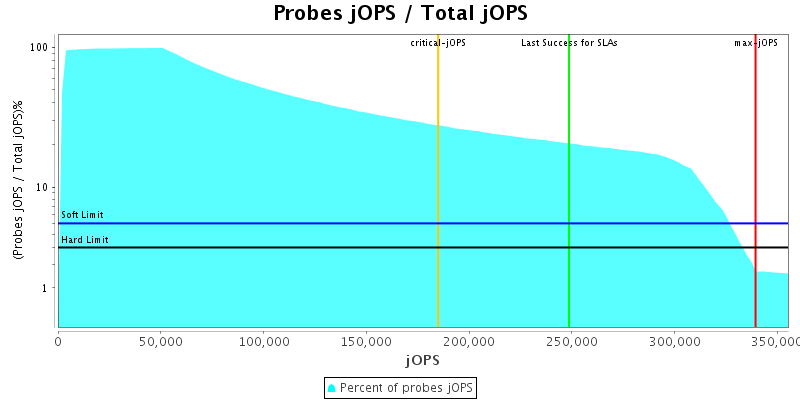

Probes jOPS / Total jOPS

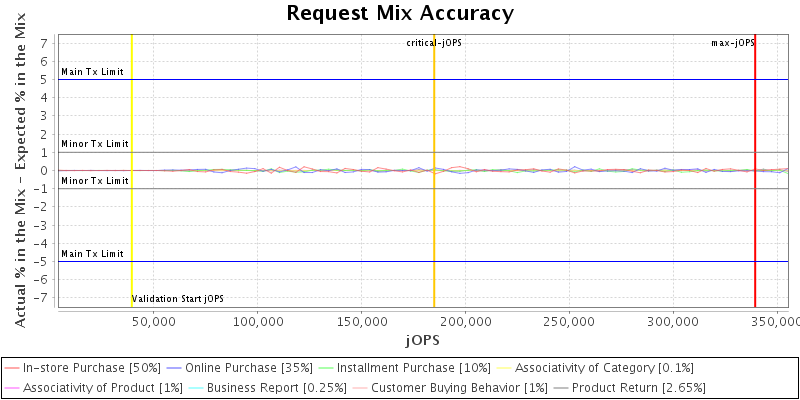

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

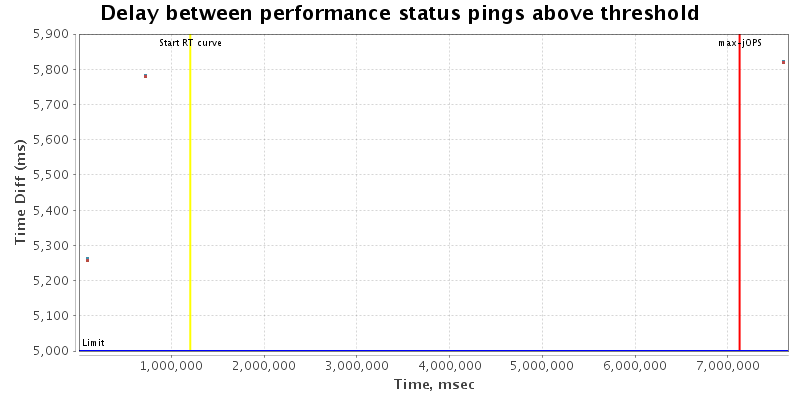

Delay between status pings

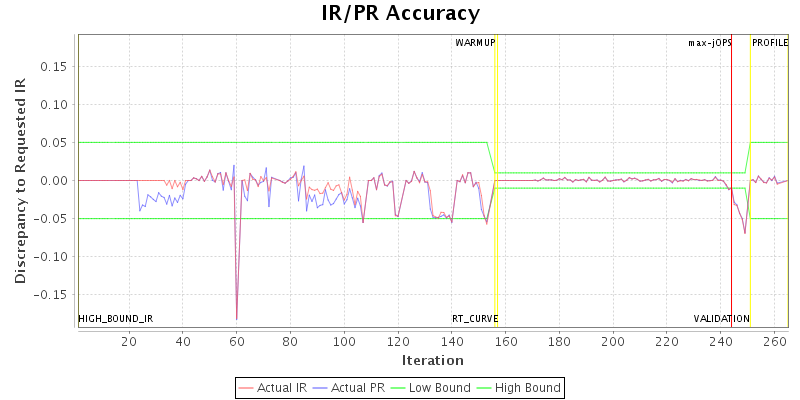

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 40
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 56 {Tier1=210, Tier2=18, Tier3=28}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 56 196
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 356498 IR
