Hewlett Packard Enterprise Superdome Flex 280 292945 SPECjbb2015-Composite max-jOPS
138893 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, Colorado Test date: October 14, 2020
SPEC license #: 3 Hardware Availability: Nov-2020 Software Availability: Sep-2020 Publication: Fri Nov 6 14:33:41 EST 2020
Benchmark Results Summary

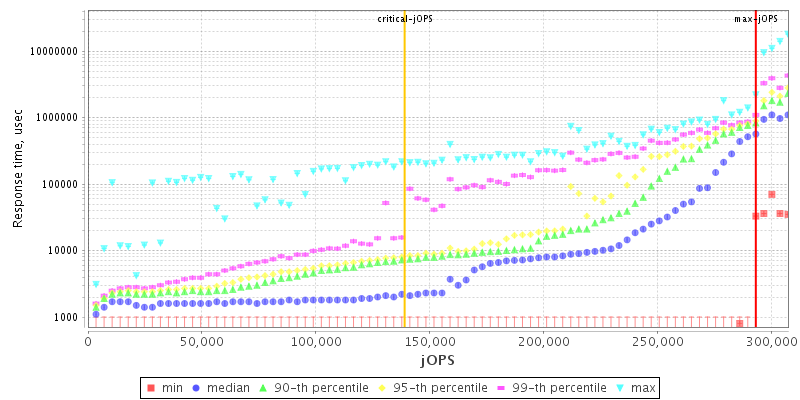

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationRack Mount Chassis
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSuperdome Flex 280
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2020
ModelSuperdome Flex 280
Form Factor5U Rack
CPU NameIntel Xeon Platinum 8380H CPU
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version1.0.140
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 1 TB 7200 RPM SATA
File SystemXFS
Memory Amount (GB)3072
# and size of DIMM(s)24 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRedHat
Vendor URLhttp://redhat.com/
Version4.18.0-193.el8.x86_64
AvailableApril-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 15
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 15
AvailableSep-2020
Bitness64
Notes

Community Support:

Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Sub-NUMA Clustering=Enabled
  • Memory Patrol Scrubbing=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 819200
  • ulimit -s 819200
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • sysctl net.core.wmem_max=12582912
  • sysctl net.core.rmem_max=12582912
  • sysctl net.ipv4.tcp_rmem='10240 87380 12582912'
  • sysctl net.ipv4.tcp_wmem='10240 87380 12582912'
  • sysctl net.core.netdev_max_backlog=655560
  • sysctl net.core.somaxconn=32768
  • sysctl net.ipv4.tcp_no_metrics_save=1
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 5000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-server -Xms530g -Xmx530g -Xmn500g -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=17 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:UseAVX=0

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 289416 292945 296475 300004 303534
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 100589 135296 142943 152472 174267 138893
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3529 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
1000us 194120 / 197650 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
5000us 240003 / 243533 165885 / 169414 102354 / 105884 91766 / 95295 60001 / 63530 21177 / 7059
10000us 254121 / 257651 222356 / 225885 183532 / 187061 165885 / 158826 98825 / 102354 21177 / 7059
25000us 264709 / 268239 247062 / 250592 218827 / 222356 208238 / 211768 137649 / 130590 31765 / 10588
50000us 275298 / 278827 261180 / 264709 236474 / 240003 218827 / 211768 155296 / 130590 88236 / 10588
75000us 278827 / 282357 264709 / 268239 243533 / 247062 229415 / 211768 155296 / 141178 95295 / 10588
100000us 282357 / 285886 271768 / 275298 247062 / 250592 236474 / 232944 183532 / 158826 95295 / 10588
200000us 282357 / 285886 275298 / 278827 257651 / 261180 243533 / 247062 208238 / 211768 134119 / 130590
500000us 292945 / - 285886 / 289416 275298 / 278827 271768 / 275298 257651 / 261180 240003 / 211768
1000000us 292945 / - 292945 / - 292945 / - 292945 / - 289416 / 292945 275298 / 278827

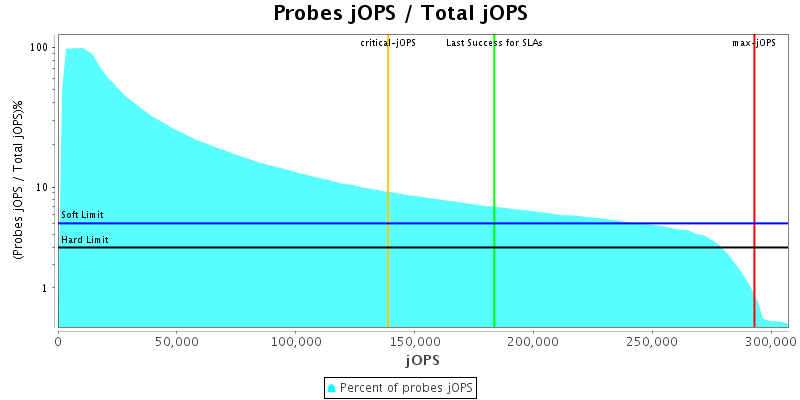

Probes jOPS / Total jOPS

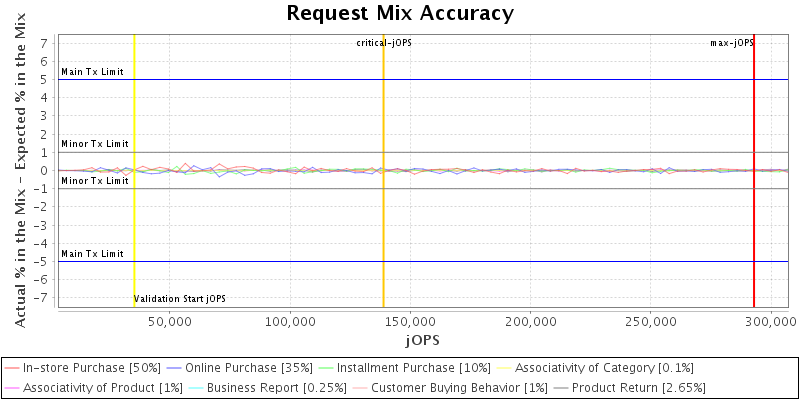

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

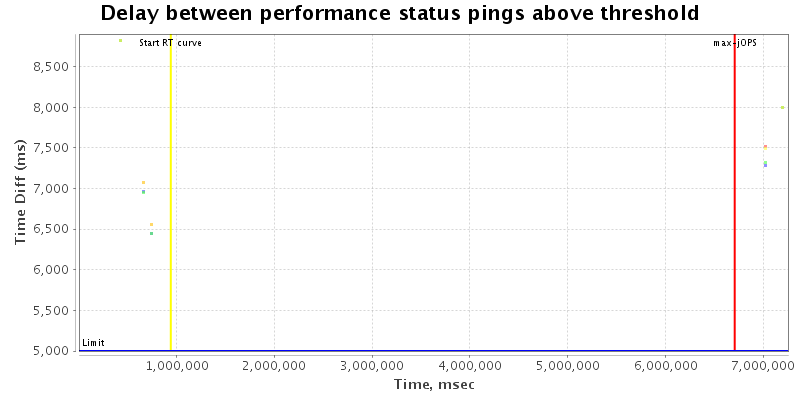

Delay between status pings

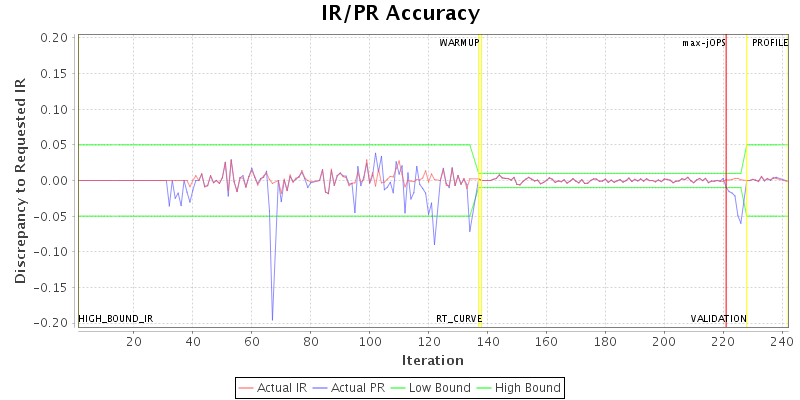

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.forkjoin.workers 224 {Tier1=224, Tier2=110, Tier3=55}
specjbb.group.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 352946 IR
High-bound (settled) is 321629 IR
