SPECjbb2015
Copyright © 2015-2020 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR635 149875 SPECjbb2015-MultiJVM max-jOPS
98075 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Mar 24, 2020
SPEC license #: 9017 Hardware Availability: Jun-2020 Software Availability: Mar-2020 Publication: Mon Apr 13 12:03:37 EDT 2020
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

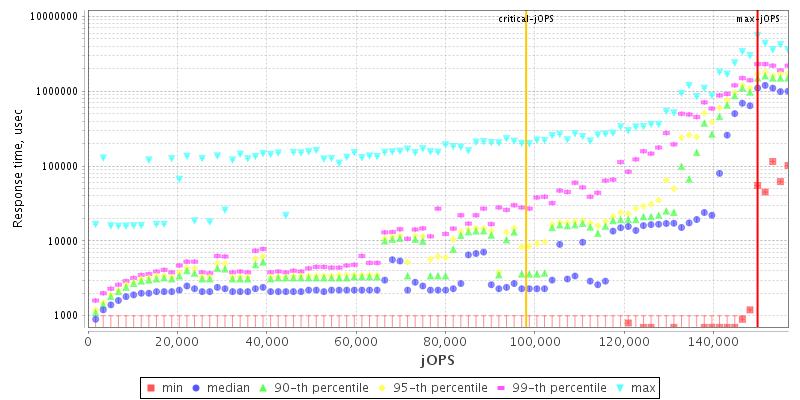

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR635
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableJun-2020
ModelThinkSystem SR635
Form Factor1U
CPU NameAMD EPYC 7H12
CPU Characteristics64 core, 2.6GHz, 256 MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionCFE111A
CPU Frequency (MHz)2600
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x 1 GbE OCP NIC
Power Supply Quantity and Rating (W)1 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.1098)
AvailableMar-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 13.0.2
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 13.0.2
AvailableJan-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Memory Speed set to 2933
  • NUMA Nodes per sockert = NPS2
  • cTDP = 280
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx400g -Xms400g -Xmn390g -XX:+UseParallelOldGC -XX:ParallelGCThreads=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc
Tuning affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms3g -Xmx3g -Xmn2g -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning affinitize each TxInjector JVM to a single memory node
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 148172 149875 151579 153282 154985
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 65570 87285 111555 118367 120070 98075
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1703 - / 1703 - / 1703 - / 1703 - / 1703 - / 1703
1000us 35766 / 8516 1703 / 3406 - / 1703 - / 1703 - / 1703 - / 1703
5000us 132844 / 120922 115813 / 68125 102188 / 39172 91969 / 37469 59610 / 22141 - / 1703
10000us 134547 / 120922 115813 / 117516 102188 / 68125 102188 / 66422 64719 / 66422 - / 1703
25000us 143063 / 144766 139657 / 141360 131141 / 132844 120922 / 122625 90266 / 78344 44281 / 3406
50000us 143063 / 144766 139657 / 141360 131141 / 132844 131141 / 129438 114110 / 109000 44281 / 3406
75000us 143063 / 144766 139657 / 141360 134547 / 132844 131141 / 132844 117516 / 119219 44281 / 3406
100000us 143063 / 144766 141360 / 143063 134547 / 136250 131141 / 132844 120922 / 119219 44281 / 3406
200000us 144766 / 146469 141360 / 143063 136250 / 137954 131141 / 132844 131141 / 129438 98782 / 86860
500000us 148172 / 149875 143063 / 144766 141360 / 143063 139657 / 137954 136250 / 137954 127735 / 129438
1000000us 149875 / - 148172 / 149875 148172 / 146469 144766 / 146469 143063 / 144766 139657 / 134547

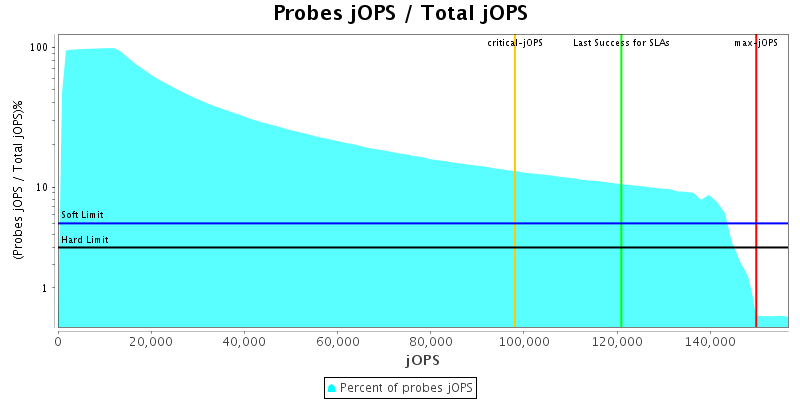

Number of probes
Probes jOPS / Total jOPS

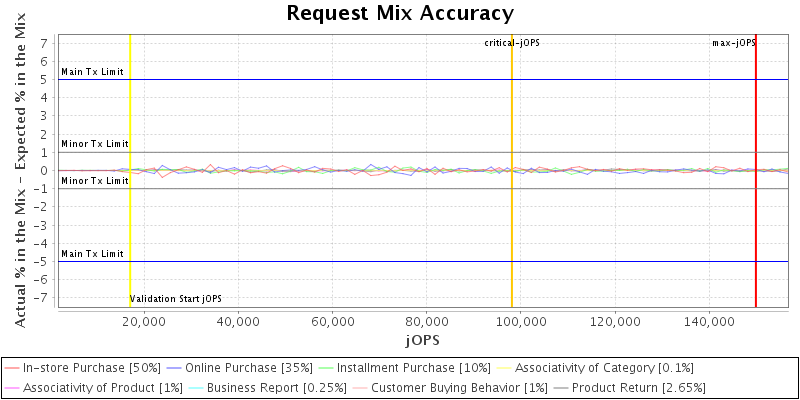

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

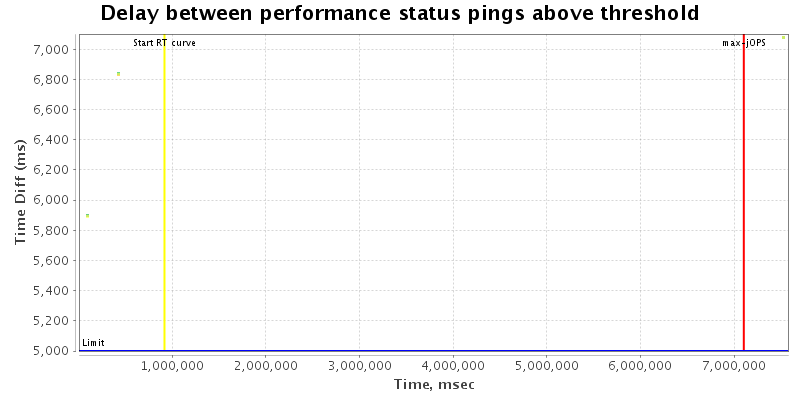

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

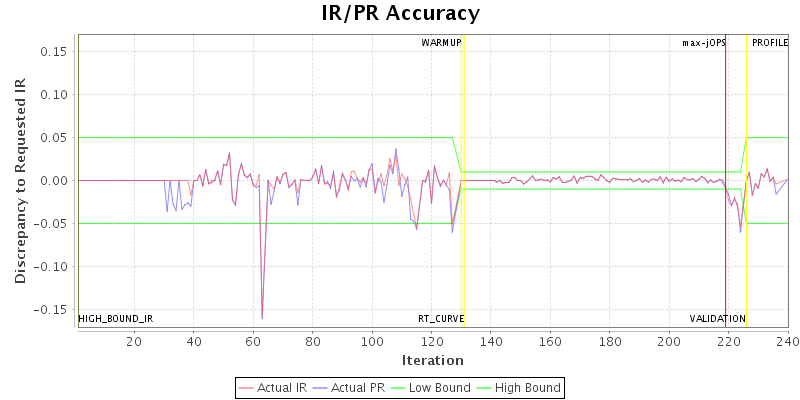

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 64 {Tier1=180, Tier2=1, Tier3=28}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 170313 IR
High-bound (settled) is 157860 IR
Copyright © 2015-2020 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
