SPECjbb2015 Report for jbb2015-20200325-00522 : 67072 max-jOPS ; 46694 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro A+ 2014TP-HTR Server
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Aug-2019
Model	H12SST-PS
Form Factor	2U
CPU Name	AMD EPYC 7F52
CPU Characteristics	16 core, 3.5GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.9GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	16
Cores Per Chip	16
Threads Per System	32
Threads Per Core	2
Version	T20190710213757 07/10/2019
CPU Frequency (MHz)	3500
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x Toshiba KXG50ZNV1T02 NVMe SSD 1TB
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64GB
Memory Details	64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 2000w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux 7.7 (Maipo)
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	3.10.0-1062.el7.x86_64
Available	Aug-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 13.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 13.0.2
Available	Jan-2020
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 Determinism Control = Manual Determinism Slider = Power cTDP Control = Manual cTDP = 240 Package Power Limit Control = Manual Package Power Limit = 240 Memory Clock Speed = 1600MHz L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns echo 50000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 50000 > /proc/sys/kernel/sched_migration_cost_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to interleave memory on all Nodes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms480g -Xmx480g -Xmn472g -server -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=4 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=32 -XX:-UseBiasedLocking -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:+UseTransparentHugePages -XX:InlineSmallCode=10k -XX:LoopUnrollLimit=1000 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:-UseAdaptiveNUMAChunkSizing
Tuning	None
Notes	Used numactl to affinitize Backend JVM to all Nodes numactl --cpunodebind=0-1 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize Transaction Injector JVM to all Nodes numactl --cpunodebind=0-1 --localalloc

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	66343	67072	67801	68530	69259

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	32442	47752	51298	52126	53584	46694

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 729	- / 729	- / 729	- / 729	- / 729	- / 729
1000us	5832 / 6561	729 / 1458	- / 729	- / 729	- / 729	- / 729
5000us	60510 / 61239	55407 / 56136	29891 / 30620	22600 / 23329	13852 / 14581	2187 / 2916
10000us	61968 / 62697	59052 / 59781	50304 / 51033	43013 / 43742	32807 / 32078	13123 / 4374
25000us	62697 / 63426	60510 / 61239	56865 / 57594	56136 / 55407	48846 / 46659	27704 / 4374
50000us	63426 / 64156	61239 / 61968	58323 / 59052	56865 / 57594	53949 / 46659	27704 / 4374
75000us	63426 / 64156	61239 / 61968	59052 / 59781	58323 / 59052	53949 / 50304	27704 / 4374
100000us	64156 / 64885	61968 / 62697	59052 / 59781	58323 / 59052	53949 / 53220	27704 / 4374
200000us	64156 / 64885	62697 / 63426	60510 / 61239	59781 / 60510	57594 / 58323	32807 / 28433
500000us	66343 / 67072	64156 / 64885	62697 / 63426	62697 / 63426	61968 / 62697	56136 / 50304
1000000us	67072 / -	66343 / 67072	64885 / 65614	64885 / 65614	64156 / 64885	59781 / 60510

Number of probes

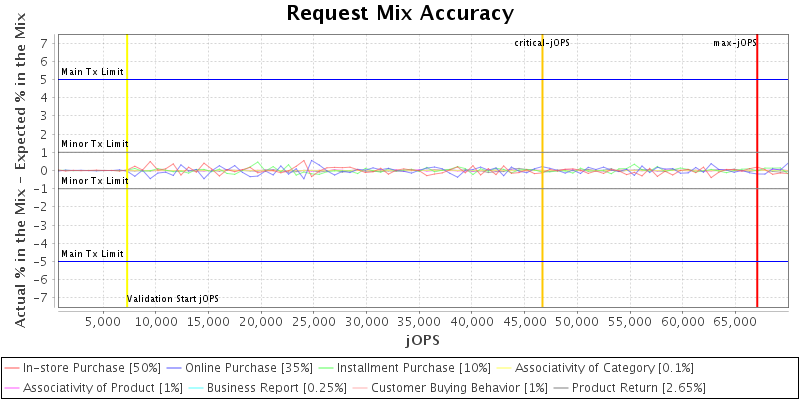

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

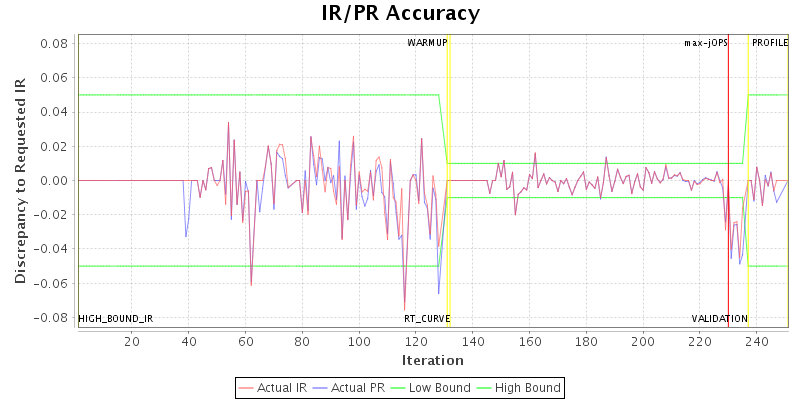

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	64	64
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	800000	600000	600000
specjbb.comm.connect.timeouts.read	60000	800000	600000	600000
specjbb.comm.connect.timeouts.write	60000	800000	600000	600000
specjbb.comm.connect.worker.pool.max	256	256	64	64
specjbb.customerDriver.threads	64	{saturate=95}
specjbb.forkjoin.workers	32	{Tier1=32, Tier2=4, Tier3=12}
specjbb.group.count	1	1
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 72904 IR

High-bound (settled) is 70615 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro A+ 2014TP-HTR Server	67072 SPECjbb2015-MultiJVM max-jOPS 46694 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: March 22, 2020
SPEC license #: 001176	Hardware Availability: Apr-2020	Software Availability: Jan-2020	Publication: Wed Apr 15 14:02:19 EDT 2020

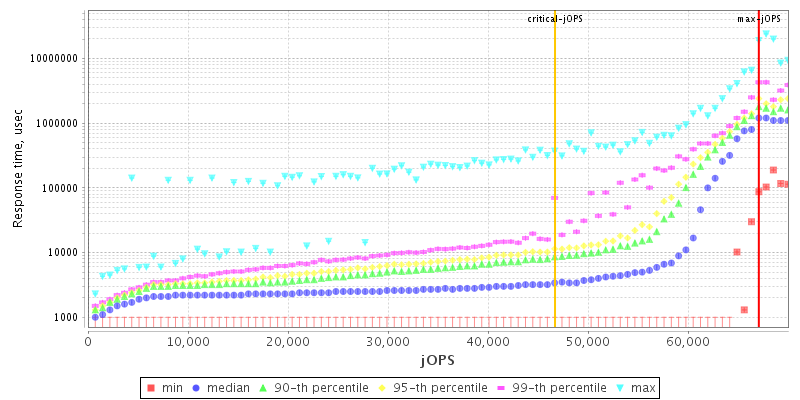

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 1) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
