Hewlett Packard Enterprise ProLiant DL325 Gen10 171631 SPECjbb2015-Distributed max-jOPS
27651 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: July 14, 2019
SPEC license #: 3 Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Wed Aug 7 19:56:20 EDT 2019
Benchmark Results Summary

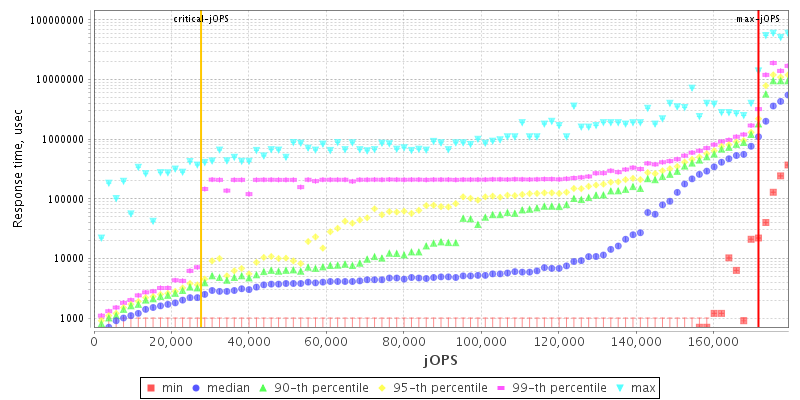

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL325 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableAug-2019
ModelProLiant DL325 Gen10
Form Factor1U Rack
CPU NameAMD EPYC 7702P
CPU Characteristics64 Core, 2.0 GHz, 256 MB L3 cache (Turbo Boost Technology up to 3.35 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionA41 07/04/2019
CPU Frequency (MHz)2000
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB L3 cache per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)8 x 64 GB
Memory Details64 GB 4Rx4 PC4-2933Y-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.12.14-195-default
AvailableJun-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 12.0.1
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 12.0.1
AvailableApr-2019
Bitness64
NotesCommunity Support:
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameProLiant DL385 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableAug-2019
ModelProLiant DL385 Gen10
Form Factor2U Rack
CPU NameAMD EPYC 7702
CPU Characteristics64 Core, 2.00 GHz, 16 MB L3 cache per 4 core (Turbo Boost Technology up to 3.35 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionA40 07/04/2019
CPU Frequency (MHz)2000
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB L3 cache per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 4Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 15 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.12.14-195-default
AvailableJun-2019
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOpenJDK 12.0.1
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 12.0.1
AvailableApr-2019
Bitness64
NotesCommunity Support:
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • NUMA memory domains per socket=Four memory domains per socket
  • Last-Level Cache(LLC) As NUMA Node= Enabled
  • Maximum memory Bus Frequency=2933
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 655350
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000

Tuning None
Notes

Used numactl to affinitize each Backend JVM to two NUMA nodes.

  • numactl --cpunodebind=0,1 --localalloc
  • numactl --cpunodebind=2,3 --localalloc
  • numactl --cpunodebind=4,5 --localalloc
  • numactl --cpunodebind=6,7 --localalloc
  • numactl --cpunodebind=8,9 --localalloc
  • numactl --cpunodebind=10,11 --localalloc
  • numactl --cpunodebind=12,13 --localalloc
  • numactl --cpunodebind=14,15 --localalloc
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • NUMA memory domains per socket=Four memory domains per socket
  • Processor Power and Utilization Monitoring = Disabled
  • Memory Pre-Failure Notification = Disabled
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 655350
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2

Tuning None
Notes

numactl --interleave=all

JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line

-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 169724 171631 173538 175445 177352
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 27651 27651 27651 27651 27651 27651
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1907 / 3814 - / 1907 - / 1907 - / 1907 - / 1907 - / 1907
1000us 26698 / 24791 7628 / 9535 3814 / 5721 1907 / 3814 - / 1907 - / 1907
5000us 141119 / 143026 93443 / 95350 40047 / 30512 28605 / 30512 22884 / 24791 - / 1907
10000us 144933 / 146840 125863 / 127770 70559 / 72466 53396 / 43861 26698 / 28605 - / 1907
25000us 148747 / 150654 139212 / 141119 93443 / 95350 59117 / 61024 26698 / 28605 1907 / 3814
50000us 150654 / 152561 141119 / 143026 101072 / 102979 70559 / 72466 26698 / 28605 15256 / 3814
75000us 152561 / 154468 144933 / 146840 120142 / 122049 91536 / 85815 26698 / 28605 15256 / 3814
100000us 154468 / 156375 148747 / 150654 125863 / 123956 99165 / 95350 26698 / 28605 15256 / 3814
200000us 162096 / 164003 152561 / 154468 141119 / 143026 135398 / 137305 66745 / 30512 15256 / 11442
500000us 169724 / 171631 164003 / 165910 156375 / 158282 154468 / 156375 150654 / 152561 49582 / 32419
1000000us 171631 / - 169724 / 171631 167817 / 169724 167817 / 169724 164003 / 165910 104886 / 106793

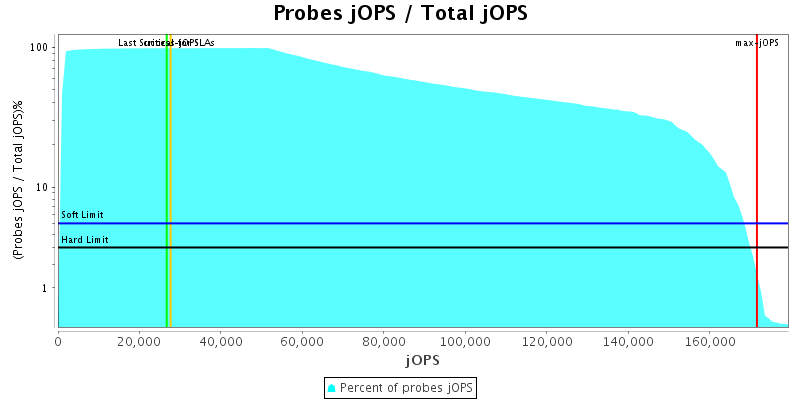

Probes jOPS / Total jOPS

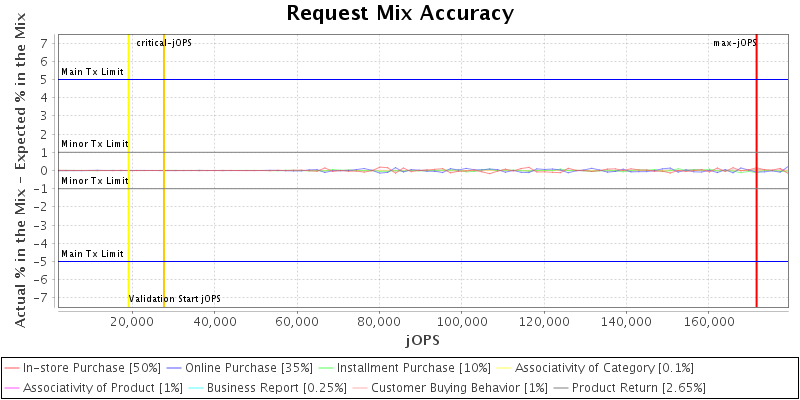

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

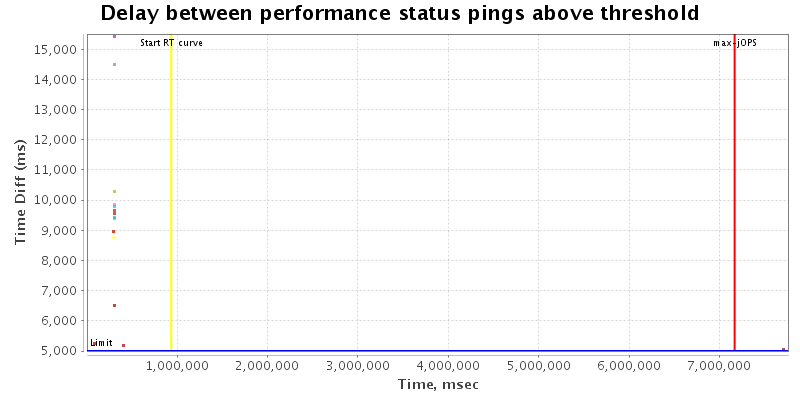

Delay between status pings

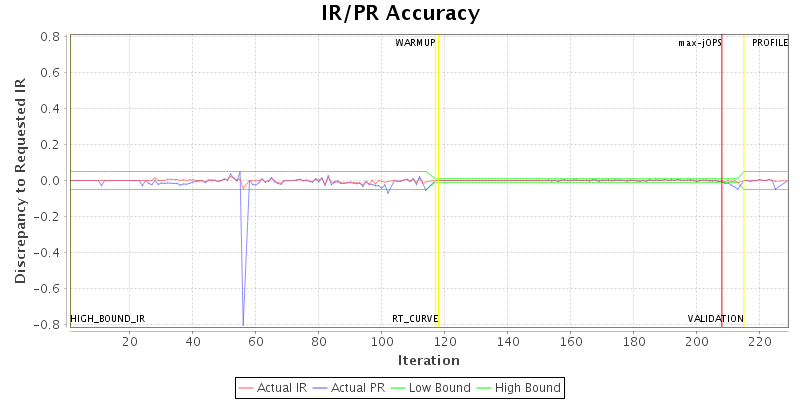

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.TxInjector.txiJVM1 Group2.TxInjector.txiJVM1 Group3.TxInjector.txiJVM1 Group4.TxInjector.txiJVM1 Group5.TxInjector.txiJVM1 Group6.TxInjector.txiJVM1 Group7.TxInjector.txiJVM1 Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 128 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 4 1 1 1 1 1 1 1 1
specjbb.comm.connect.timeouts.connect 60000 800000 700000 700000 700000 700000 700000 700000 700000 700000
specjbb.comm.connect.timeouts.read 60000 800000 700000 700000 700000 700000 700000 700000 700000 700000
specjbb.comm.connect.timeouts.write 60000 800000 700000 700000 700000 700000 700000 700000 700000 700000
specjbb.comm.connect.worker.pool.max 256 128 111 111 111 111 111 111 111 111
specjbb.comm.connect.worker.pool.min 1 32 64 64 64 64 64 64 64 64
specjbb.controller.host localhost 10.10.0.98
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 255 {Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 255 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 190701 IR
High-bound (settled) is 180350 IR
