Inspur PowerSystem FP5280G2 113934 SPECjbb2015-MultiJVM max-jOPS
48817 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur PowerSystem Corporation Test Sponsor: Inspur PowerSystem Corporation Test location: Beijing, PRC Test date: Mar 15, 2019
SPEC license #: 3358 Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Thu Apr 11 14:27:21 EDT 2019
Benchmark Results Summary

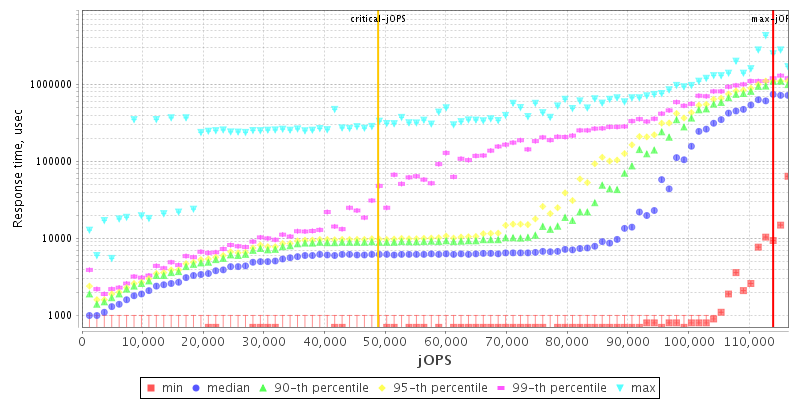

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur PowerSystem Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores22
Total Threads176
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFP5280G2
VendorInspur PowerSystem Corporation
Vendor URLhttp://www.inspur.com/
AvailableJan-2019
ModelFP5280G2
Form Factor2U
CPU NamePOWER9
CPU Characteristics22 Cores, 2.15 to 3.8GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System176
Threads Per Core4
Version4.0.01 01/23/2019
CPU Frequency (MHz)2752
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512 KB (I+D) per core
Tertiary Cache110MB (I+D) on chip per chip/ 22cores
Other CacheNone
Disk6 x 960GB SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)32 x 16GB
Memory Details32 x 16GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)1 x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes:The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes:The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes:The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.5
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version4.14.0-49.el7a.ppc64le
AvailableJun-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameIBM J9 VM
VendorIBM Corporation
Vendor URLhttp://www.ibm.com
VersionIBM J9 VM(build 8.0.5.27 - pxl6480sr5fp27-20190104_01(SR5 FP27))
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(6), jvm_TxInjector_1(6)
OS Image Description os_1
Tuning
  • cpufreq-set -g performance
  • echo 200000 > /proc/sys/vm/nr_hugepages
  • ppc64_cpu --dscr=3
  • ulimit -n 1048576
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 65000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 24000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -XX:-RuntimeInstrumentation -Xms1g -Xmx1g -Xmn800m -Xcompressedrefs -XX:-EnableHCR
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:-RuntimeInstrumentation -Xlp -Xms63g -Xmx63g -Xmn60g -Xcompressedrefs -Xtrace:none -Xconcurrentlevel0 -Xaggressive -XX:-EnableHCR
Tuning numactl used to affinitize each Backend JVM
  • numactl --physcpubind=0-27 --membind=0
  • numactl --physcpubind=28-55 --membind=0
  • numactl --physcpubind=56-83 --membind=0
  • numactl --physcpubind=88-115 --membind=8
  • numactl --physcpubind=116-143 --membind=8
  • numactl --physcpubind=144-171 --membind=8
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -XX:-RuntimeInstrumentation -Xlp -Xms2000m -Xmx2000m -Xmn1700m -Xcompressedrefs -Xtrace:none -Xconcurrentlevel0 -Xaggressive -XX:-EnableHCR
Tuning numactl used to affinitize each TxInjector JVM to a single processor
  • numactl --physcpubind=0-3 --membind=0
  • numactl --physcpubind=28-31 --membind=0
  • numactl --physcpubind=56-59 --membind=0
  • numactl --physcpubind=88-91 --membind=8
  • numactl --physcpubind=116-119 --membind=8
  • numactl --physcpubind=144-147 --membind=8
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 111484 112709 113934 115159 116384
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 31036 48595 50841 59621 60642 48817
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1225 - / 1225 - / 1225 - / 1225 - / 1225 - / 1225
1000us 6125 / 7351 2450 / 3675 - / 1225 - / 1225 - / 1225 - / 1225
5000us 93108 / 94333 30627 / 31853 20827 / 22052 18376 / 19602 15926 / 17151 - / 1225
10000us 96783 / 98008 88207 / 89432 68606 / 69831 56355 / 57580 31853 / 29402 4900 / 1225
25000us 99233 / 100458 94333 / 95558 83307 / 84532 78406 / 75956 50229 / 47779 18376 / 8576
50000us 100458 / 101683 96783 / 95558 88207 / 89432 80857 / 82082 50229 / 51454 18376 / 8576
75000us 101683 / 102908 96783 / 98008 89432 / 90657 83307 / 84532 61255 / 58805 18376 / 8576
100000us 102908 / 104133 96783 / 98008 90657 / 91882 84532 / 85757 61255 / 60030 18376 / 8576
200000us 105359 / 106584 100458 / 101683 94333 / 95558 90657 / 91882 77181 / 75956 18376 / 8576
500000us 113934 / - 109034 / 110259 102908 / 104133 100458 / 101683 96783 / 98008 83307 / 71056
1000000us 113934 / - 113934 / - 112709 / 113934 111484 / 112709 109034 / 110259 100458 / 101683
Probes jOPS / Total jOPS

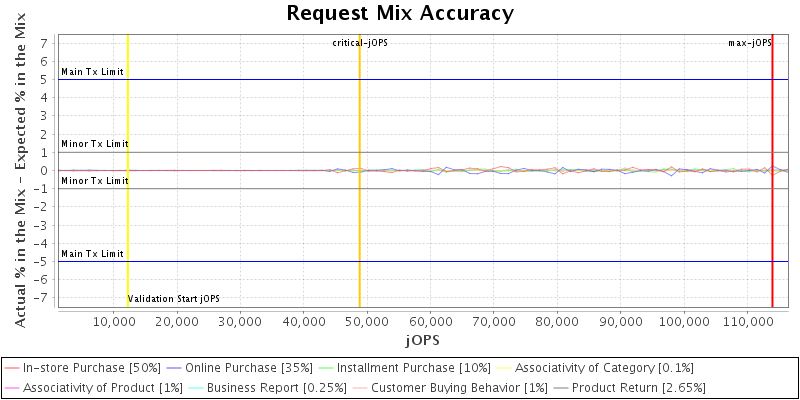

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

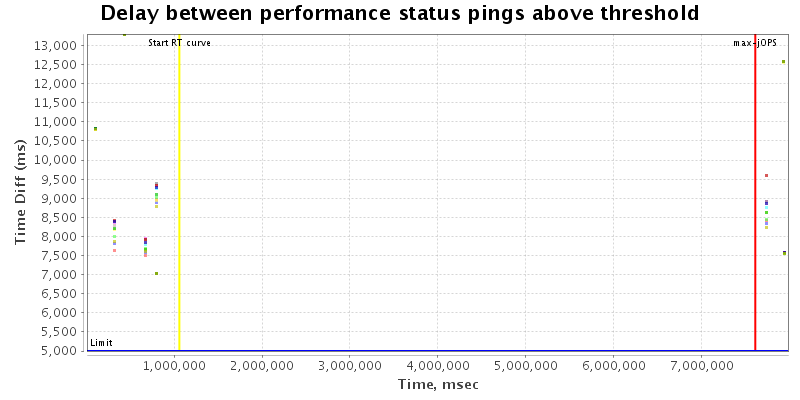

Delay between status pings

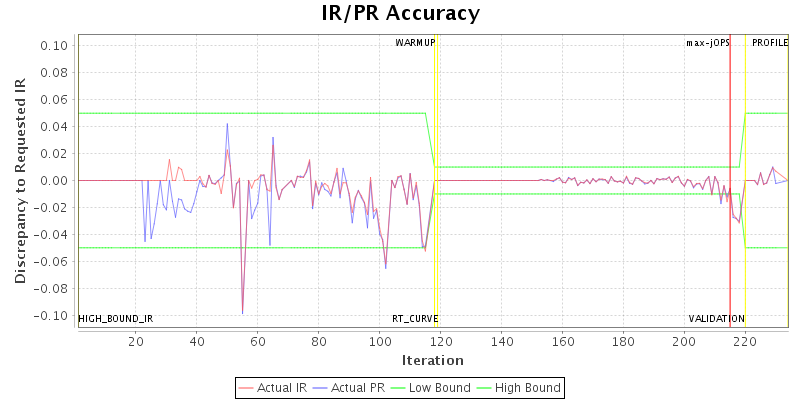

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 26
specjbb.comm.connect.worker.pool.min 1 1
specjbb.controller.handshake.period 5000 15000
specjbb.controller.handshake.timeout 600000 8000000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 176 {Tier1=145, Tier2=60, Tier3=25}
specjbb.group.count 1 6
specjbb.heartbeat.period 10000 20000
specjbb.heartbeat.threshold 100000 400000
specjbb.mapreducer.pool.size 176 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 122510 IR
High-bound (settled) is 118676 IR
