Fujitsu PRIMERGY RX2530 M5 160590 SPECjbb2015-Composite max-jOPS
103966 SPECjbb2015-Composite critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Mar 12, 2019
SPEC license #: 19 Hardware Availability: Apr-2019 Software Availability: Feb-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFujitsu Server PRIMERGY RX2530 M5
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableApr-2019
ModelFujitsu Server PRIMERGY RX2530 M5
Form Factor1U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionR1.0.0 02/18/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 240GB M.2 SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32 GB
Memory Details32GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Supported by Fujitsu
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.12.14-25.28-default
AvailableFeb-2019
Bitness64
NotesSupported by SUSE
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesSupported by Oracle
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Link Frequency Select set to 10.4 GT/s
Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • echo 0 > /proc/sys/kernel/numa_balancing
  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms690g -Xmx690g -Xmn660g -XX:SurvivorRatio=69 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+UseNUMA -XX:-UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=112 -verbose:gc -XX:+PrintGCDetails -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:InlineSmallCode=17k -XX:+UseStringDeduplication
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 158826 160590 162355 164120 165885
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 78530 103236 109854 113236 120443 103966
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 10588 / 7059 1765 / 3529 - / 1765 - / 1765 - / 1765 - / 1765
1000us 148237 / 150002 26471 / 28236 3529 / 5294 1765 / 3529 - / 1765 - / 1765
5000us 153532 / 155296 139414 / 141178 70589 / 67060 60001 / 56471 38824 / 40589 15883 / 5294
10000us 153532 / 155296 141178 / 142943 109413 / 105884 93531 / 95295 77648 / 79413 37059 / 12353
25000us 155296 / 157061 148237 / 150002 130590 / 132355 127061 / 128825 104119 / 102354 40589 / 12353
50000us 155296 / 157061 150002 / 151767 135884 / 137649 130590 / 132355 111178 / 105884 56471 / 12353
75000us 155296 / 157061 151767 / 153532 139414 / 137649 132355 / 134119 114707 / 105884 77648 / 12353
100000us 155296 / 157061 151767 / 153532 141178 / 142943 135884 / 137649 125296 / 105884 95295 / 31765
200000us 155296 / 157061 155296 / 157061 148237 / 146473 144708 / 142943 135884 / 130590 112943 / 74119
500000us 160590 / - 155296 / 157061 155296 / 157061 155296 / 153532 151767 / 146473 135884 / 130590
1000000us 160590 / - 160590 / - 158826 / 160590 157061 / 158826 155296 / 157061 155296 / 153532

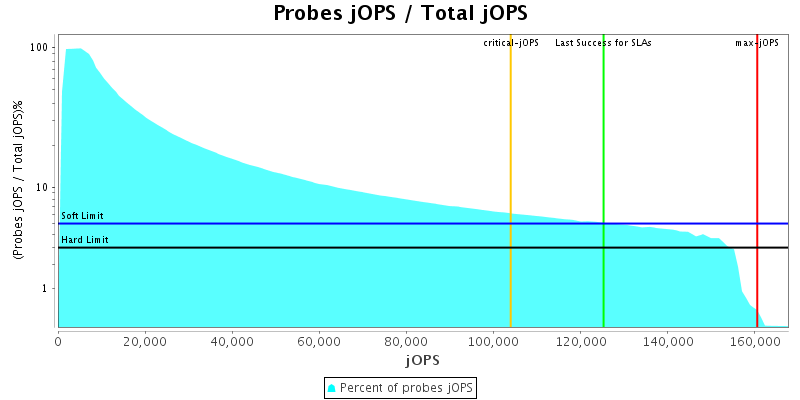

Probes jOPS / Total jOPS

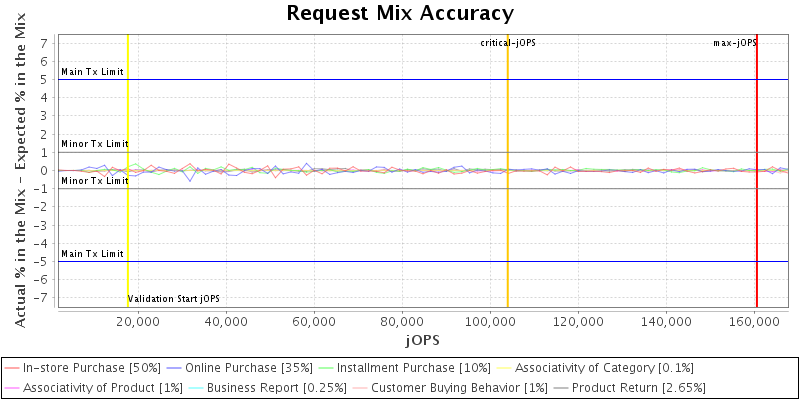

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

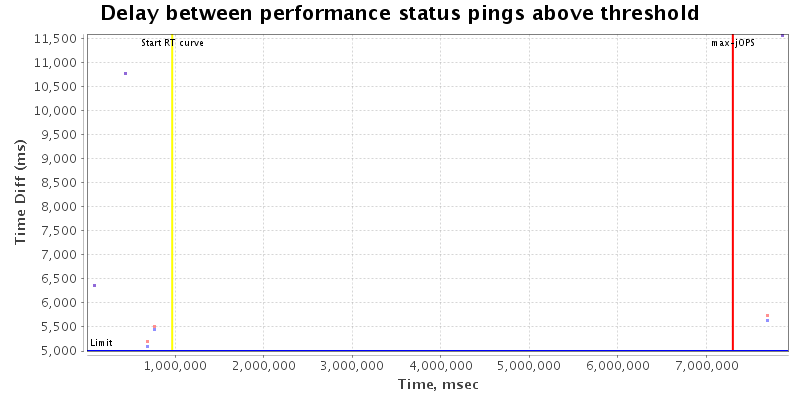

Delay between status pings

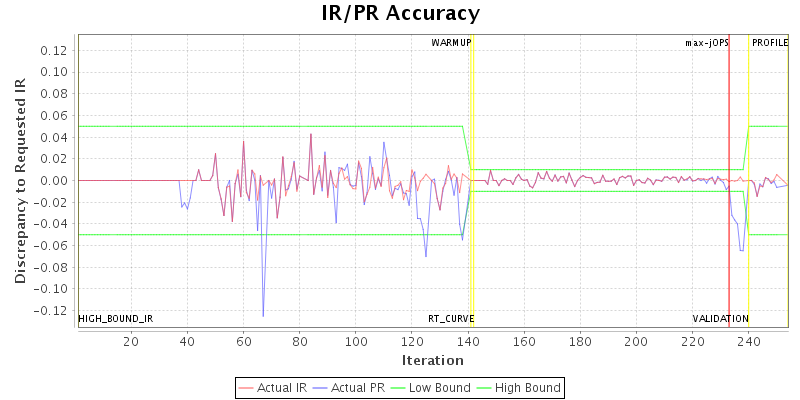

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 64
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 176473 IR
High-bound (settled) is 170815 IR
