SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Fujitsu PRIMERGY RX2530 M5 157061 SPECjbb2015-Composite max-jOPS
132521 SPECjbb2015-Composite critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Mar 11, 2019
SPEC license #: 19 Hardware Availability: Apr-2019 Software Availability: Feb-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

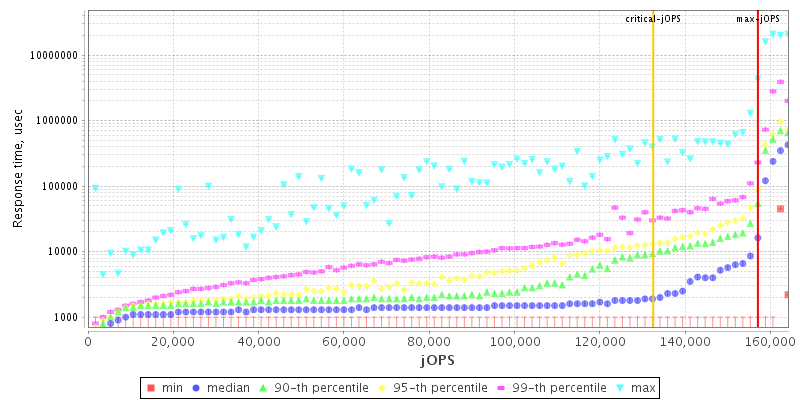

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameFujitsu Server PRIMERGY RX2530 M5
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableApr-2019
ModelFujitsu Server PRIMERGY RX2530 M5
Form Factor1U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionR1.0.0 02/18/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 240GB M.2 SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32 GB
Memory Details32GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Supported by Fujitsu
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.12.14-25.28-default
AvailableFeb-2019
Bitness64
NotesSupported by SUSE
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesSupported by Oracle
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Override OS Energy Performance set to Enabled
  • Energy Performance set to Performance
  • LlcDeadLineAlloc set to Disabled
  • StaleAtos set to Disabled
  • Uncore Frequency Override set to Maximum
  • Intel Virtualization Technology set to Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/numa_balancing
  • cpupower -c all frequency-set -g performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms690g -Xmx690g -Xmn660g -XX:SurvivorRatio=69 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+UseNUMA -XX:-UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=112 -verbose:gc -XX:+PrintGCDetails -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:-ShrinkHeapInSteps
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 155296 157061 158826 160590 162355
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 94413 124707 145590 154414 154414 132521
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 8824 / 10588 1765 / 3529 - / 1765 - / 1765 - / 1765 - / 1765
1000us 139414 / 141178 8824 / 10588 5294 / 7059 5294 / 7059 3529 / 5294 - / 1765
5000us 155296 / 157061 146473 / 148237 116472 / 118237 97060 / 98825 54707 / 56471 7059 / 1765
10000us 157061 / - 155296 / 157061 132355 / 134119 116472 / 118237 93531 / 95295 10588 / 1765
25000us 157061 / - 157061 / - 153532 / 155296 148237 / 150002 127061 / 123531 44118 / 1765
50000us 157061 / - 157061 / - 155296 / 157061 155296 / 157061 144708 / 146473 70589 / 1765
75000us 157061 / - 157061 / - 157061 / - 155296 / 157061 153532 / 155296 75883 / 1765
100000us 157061 / - 157061 / - 157061 / - 157061 / - 153532 / 155296 86472 / 45883
200000us 157061 / - 157061 / - 157061 / - 157061 / - 155296 / 157061 118237 / 79413
500000us 157061 / - 157061 / - 157061 / - 157061 / - 157061 / - 150002 / 123531
1000000us 157061 / - 157061 / - 157061 / - 157061 / - 157061 / - 153532 / 155296

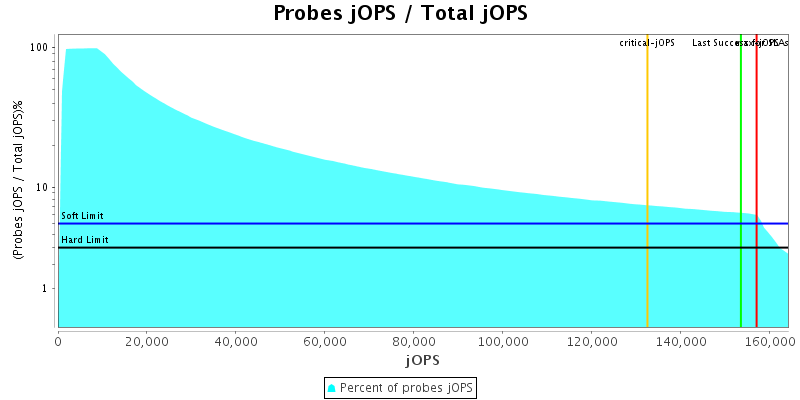

Number of probes
Probes jOPS / Total jOPS

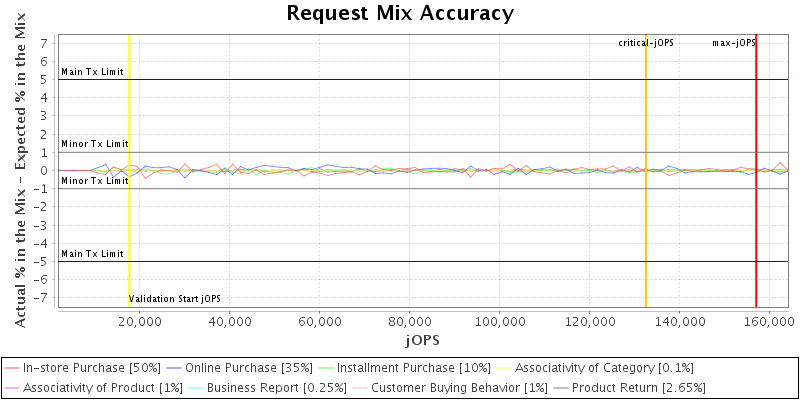

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

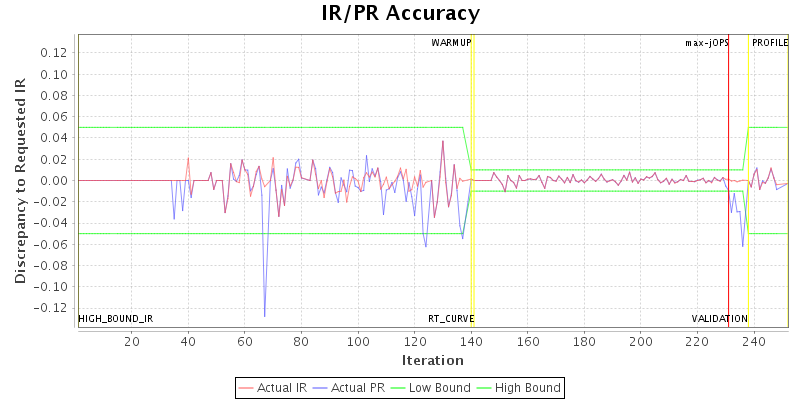

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {probe=95, saturate=64}
specjbb.forkjoin.workers 112 {Tier1=180, Tier2=1, Tier3=25}
specjbb.mapreducer.pool.size 112 112
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 176473 IR
High-bound (settled) is 166858 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
