SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Fujitsu PRIMERGY RX2540 M5 155295 SPECjbb2015-MultiJVM max-jOPS
81233 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Mar 13, 2019
SPEC license #: 19 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameFujitsu Server PRIMERGY RX2540 M5
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableApr-2019
ModelFujitsu Server PRIMERGY RX2540 M5
Form Factor2U
CPU NameIntel Xeon Platinum 8280M
CPU Characteristics28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionR1.2.0 28.02.2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5MB I+D on chip per chip
Other CacheNone
Disk1x 1.6TB SAS SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details32GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Supported by Fujitsu
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2016 Standard
VendorMicrosoft
Vendor URLhttp://www.microsoft.com/
VersionVersion 1607 (OS Build 14393.2580)
AvailableOct-2018
Bitness64
NotesSupported by Microsoft
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesSupported by Oracle
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Hardware Prefetcher set to Disabled
  • Adjacent Cache Line Prefetch set to Disabled
  • DCU Streamer Prefetcher set to Disabled
  • Intel Virtualization Technology set to Disabled
  • VT-d set to Disabled
  • Override OS Energy Performance set to Enabled
  • Energy Performance set to Performance
  • Link Frequency Select set to 10.4GT/s
  • Patrol Scrub set to Disable
  • SNC set to Disabled
  • Write CRC set to Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning none
Notes none
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=50 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15
Tuning Affinitized each Backend JVM to a NUMA node, eg:
  • /NODE %nodenumber% /b /AFFINITY 0xFFFFFFFFFFFFFF
Notes none
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -XX:ParallelGCThreads=56
Tuning Affinitized each TxInjector JVM to a NUMA node, eg:
  • /NODE %nodenumber% /b /AFFINITY 0xFFFFFFFFFFFFFF
Notes none
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 153251 155295 157338 159381 161425
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 27994 90588 107071 111362 116981 81233
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2043 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
1000us 2043 / 4087 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
5000us 116471 / 102167 85821 / 53127 18390 / 16347 14303 / 10217 6130 / 8173 - / 2043
10000us 134861 / 110341 98081 / 96037 67431 / 44954 49040 / 42910 40867 / 22477 - / 2043
25000us 145078 / 147121 136904 / 138948 116471 / 112384 106254 / 108298 91951 / 87864 30650 / 12260
50000us 149165 / 151208 140991 / 143034 126688 / 128731 124644 / 122601 110341 / 102167 30650 / 12260
75000us 149165 / 151208 143034 / 145078 134861 / 130774 124644 / 122601 110341 / 112384 30650 / 12260
100000us 149165 / 151208 143034 / 145078 134861 / 136904 124644 / 126688 118514 / 112384 53127 / 12260
200000us 151208 / 153251 145078 / 147121 136904 / 138948 134861 / 136904 124644 / 120558 108298 / 93994
500000us 155295 / - 149165 / 151208 143034 / 145078 143034 / 145078 134861 / 136904 122601 / 124644
1000000us 155295 / - 155295 / - 153251 / 155295 153251 / 155295 149165 / 151208 136904 / 138948

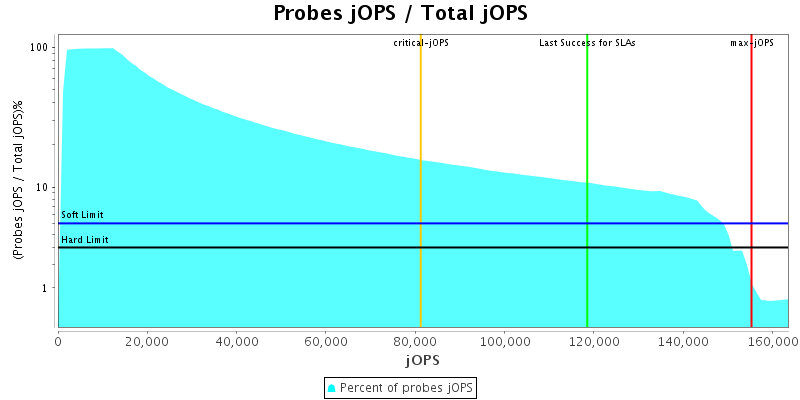

Number of probes
Probes jOPS / Total jOPS

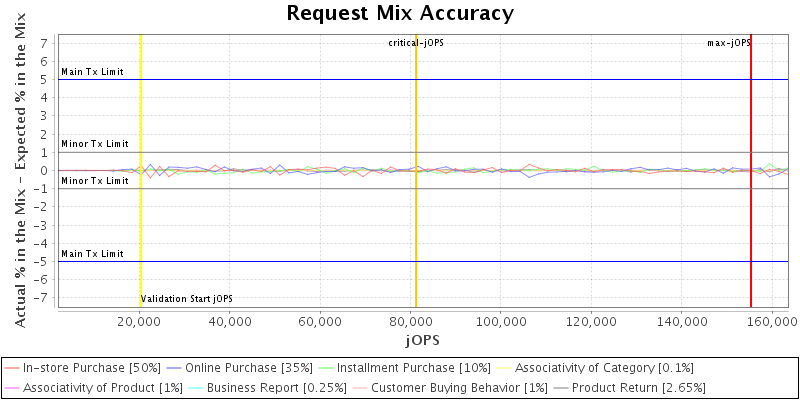

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

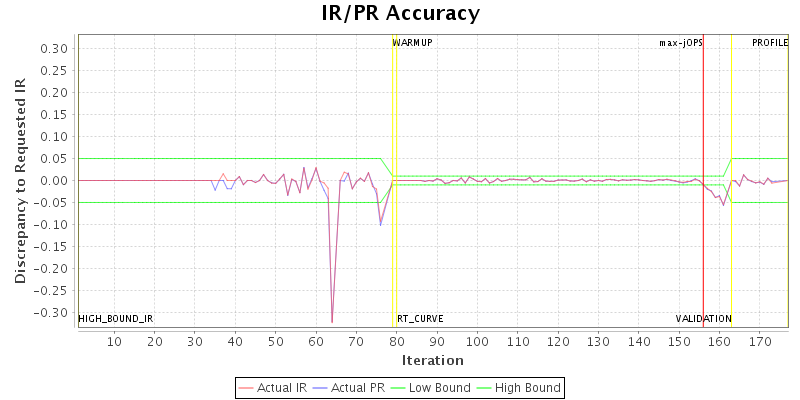

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 56 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 204335 IR
High-bound (settled) is 170313 IR
