Huawei Technologies Co., Ltd Huawei 2488H V5 355121 SPECjbb2015-MultiJVM max-jOPS
112974 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Hang Zhou,China Test date: Mar 9, 2019
SPEC license #: 3175 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

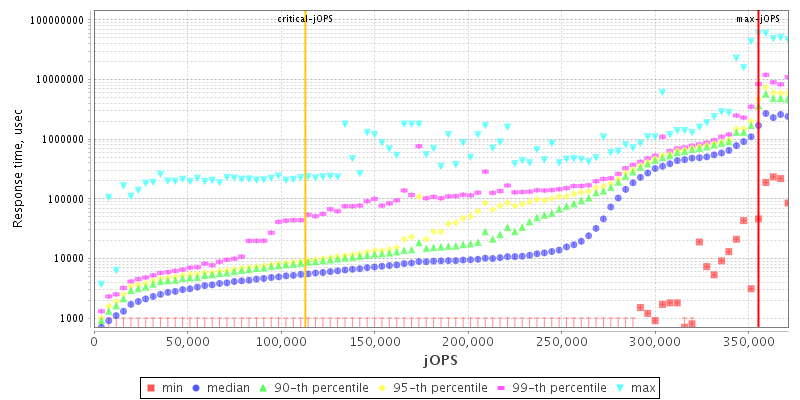

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei 2488H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
AvailableApr-2019
ModelHuawei 2488H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8280 CPU @ 2.70GHz
CPU Characteristics28Core, 2.70GHz, 39424KB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version636
CPU Frequency (MHz)2700
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1M (I+D) per core
Tertiary Cache38.5M (I+D) on chip per chip
Other CacheNone
Disk1x 1TB 10K RPM, see notes
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32GB
Memory Details1536 GB (48 x 32 GB 2Rx4 PC4-2933Y-R)
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)2 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.6
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.el7.x86_64
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.2+9-LTS, mixed mode)
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Power policy set to Performance
  • IMC level interleave set to 1-Way
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms3g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=9
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 351175 355121 359067 363013 366958
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 76943 92726 112455 140075 163750 112974
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 27621 / 31566 7892 / 11837 3946 / 7892 3946 / 7892 - / 3946 - / 3946
5000us 256476 / 260422 98645 / 102591 55241 / 59187 43404 / 47349 27621 / 31566 3946 / 7892
10000us 268314 / 272260 213073 / 209127 130211 / 134157 122319 / 126265 74970 / 78916 11837 / 7892
25000us 276205 / 280151 264368 / 268314 217018 / 209127 177561 / 173615 90753 / 94699 11837 / 7892
50000us 280151 / 284097 272260 / 276205 236747 / 240693 197289 / 173615 110482 / 114428 11837 / 7892
75000us 284097 / 288043 276205 / 280151 252531 / 256476 213073 / 173615 138103 / 142048 11837 / 7892
100000us 288043 / 291988 276205 / 280151 260422 / 264368 240693 / 173615 161777 / 165723 11837 / 7892
200000us 315663 / 311717 288043 / 291988 280151 / 284097 276205 / 280151 268314 / 173615 67078 / 35512
500000us 343284 / 347230 323555 / 327501 303826 / 307772 299880 / 303826 295934 / 173615 268314 / 134157
1000000us 355121 / - 347230 / 351175 339338 / 343284 339338 / 343284 331446 / 303826 291988 / 134157

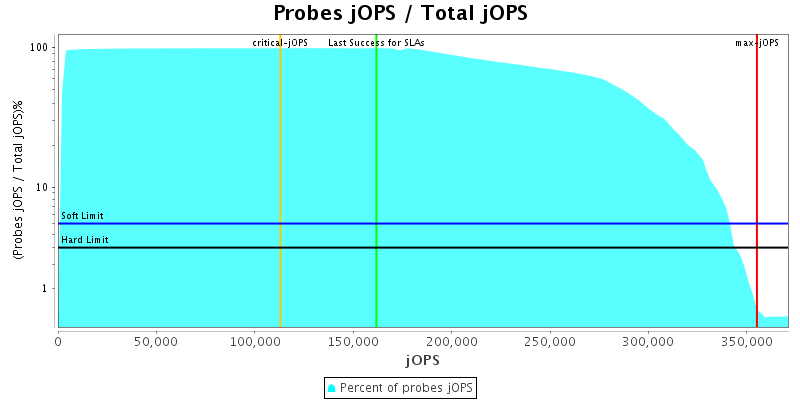

Probes jOPS / Total jOPS

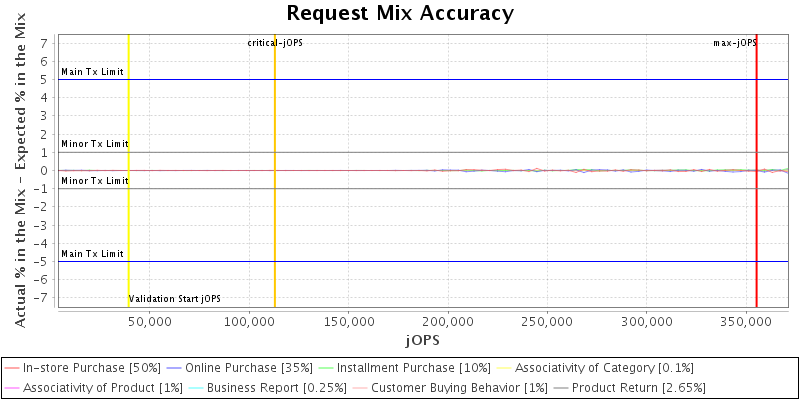

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

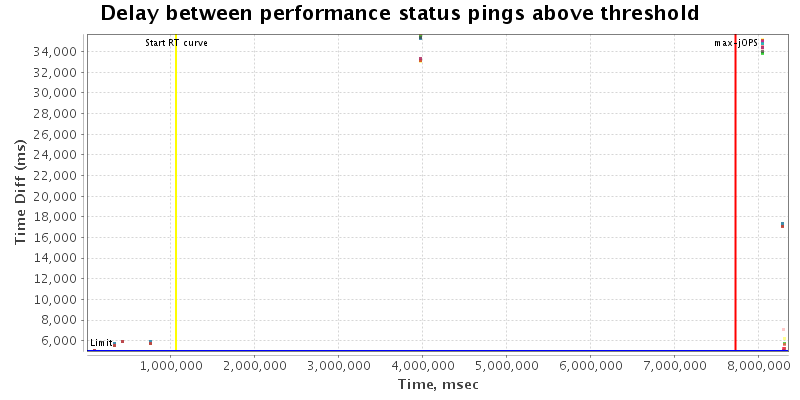

Delay between status pings

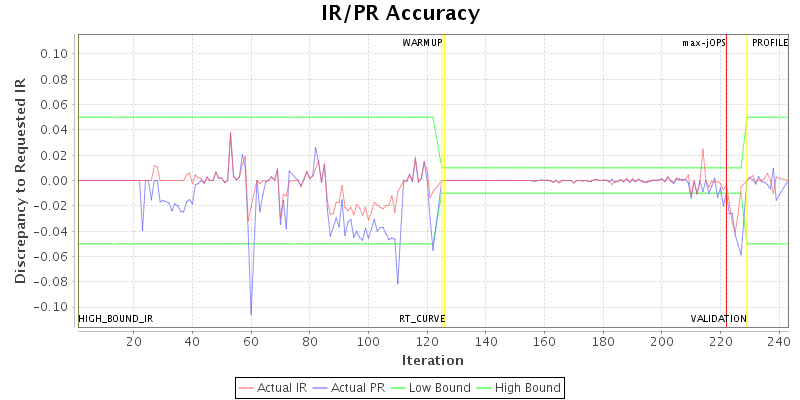

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.customerDriver.threads 64 224
specjbb.forkjoin.workers 28 {=384, Tier1=170, Tier2=60, Tier3=30}
specjbb.group.count 1 8
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 373114 IR
