Hewlett Packard Enterprise ProLiant DL380 Gen10 169598 SPECjbb2015-Distributed max-jOPS
136328 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: March 09, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

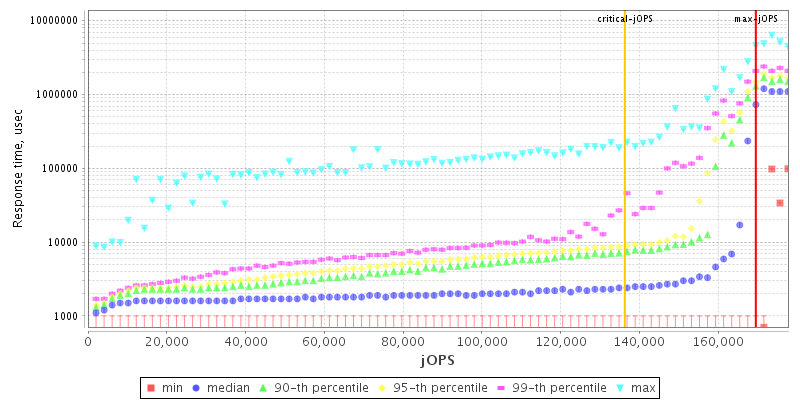

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL380 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelProLiant DL380 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8280L
CPU Characteristics28 Core, 2.70 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionU30 2.00 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)24 x 32 GB
Memory Details32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 7.6 (Maipo)
VendorRedHat
Vendor URLhttps://www.redhat.com/
Version3.10.0-957
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameProLiant DL580 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelProLiant DL580 Gen10
Form Factor4U Rack
CPU NameIntel Xeon Platinum 8280L
CPU Characteristics28 Core, 2.70 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionU34 2.00 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32 GB
Memory Details32 GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)4 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.12.14-23-default
AvailableJul-2018
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 11.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Memory Patrol Scrubbing=Disabled
  • LLC Prefetcher=Enabled
  • XPT Prefetcher=Enabled
  • Enhanced Processor Performance=Enabled
  • LLC Deadline Allocation=Disabled
  • Memory Pre-Failure notification=Disabled
  • Advanced RAS Recovery Support=Disabled
  • Advanced Memory Protection=Advanced ECC Support
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • tuned-adm profile throughput-performance
  • ulimit -l 80000000
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • ulimit -n 655350
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:-UseBiasedLocking -XX:UseAVX=0

Tuning None
Notes

Used numactl to affinitize each Backend JVM to NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Memory Patrol Scrubbing=Disabled
  • LLC Prefetcher=Enabled
  • XPT Prefetcher=Enabled
  • Enhanced Processor Performance=Enabled
  • LLC Deadline Allocation=Disabled
  • Memory Pre-Failure notification=Disabled
  • Advanced RAS Recovery Support=Disabled
  • Advanced Memory Protection=Advanced ECC Support
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning
  • tuned-adm profile throughput-performance
  • ulimit -l 80000000
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • ulimit -n 655350
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line

-Xms2g -Xmx3g -Xmn2g

Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line

-Xms2g -Xmx3g -Xmn2g -XX:ParallelGCThreads=56

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 167555 169598 171641 173685 175728
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 109319 136223 146099 146099 148143 136328
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2043 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
1000us 106254 / 10217 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
5000us 167555 / 169598 159381 / 161425 98081 / 100124 79691 / 81734 46997 / 49040 - / 2043
10000us 167555 / 169598 163468 / 165511 153251 / 155295 145078 / 147121 108298 / 110341 8173 / 6130
25000us 167555 / 169598 165511 / 167555 157338 / 159381 153251 / 155295 138948 / 134861 14303 / 12260
50000us 167555 / 169598 165511 / 167555 157338 / 159381 155295 / 157338 145078 / 147121 34737 / 12260
75000us 167555 / 169598 165511 / 167555 157338 / 159381 155295 / 157338 145078 / 147121 42910 / 24520
100000us 167555 / 169598 165511 / 167555 157338 / 159381 157338 / 159381 147121 / 149165 65387 / 51084
200000us 169598 / - 165511 / 167555 159381 / 161425 157338 / 159381 155295 / 157338 138948 / 132818
500000us 169598 / - 167555 / 169598 165511 / 167555 163468 / 165511 157338 / 159381 155295 / 149165
1000000us 169598 / - 169598 / - 167555 / 169598 165511 / 167555 165511 / 167555 157338 / 159381

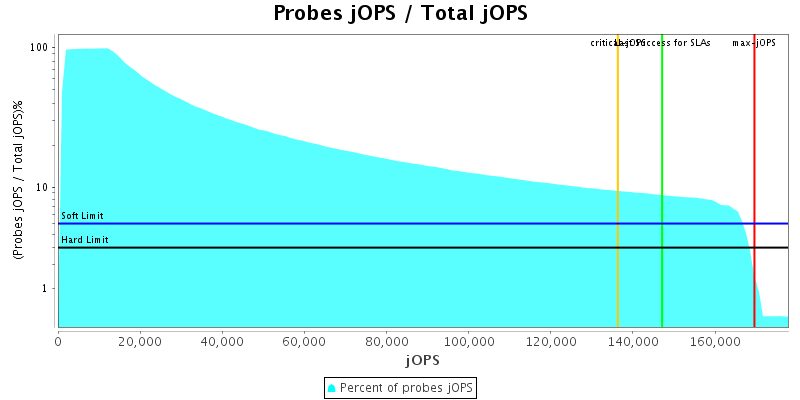

Probes jOPS / Total jOPS

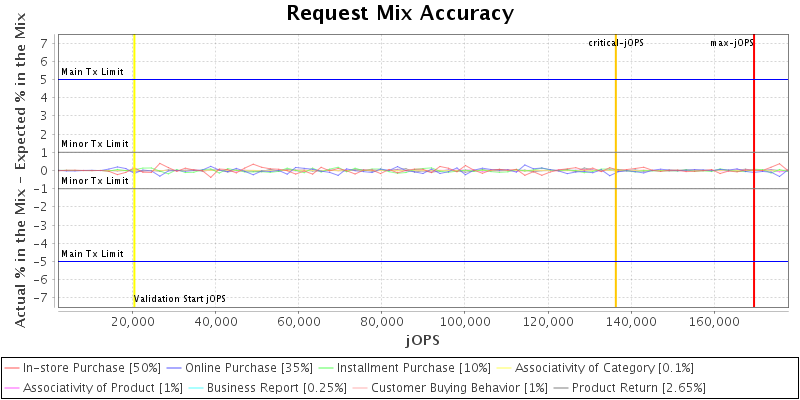

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

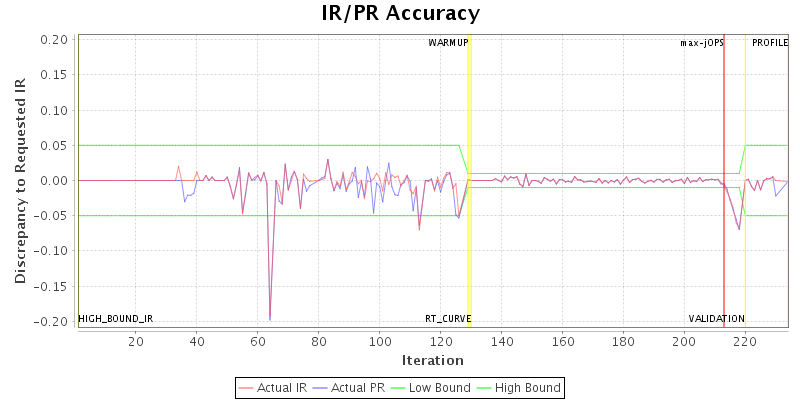

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.host localhost 10.10.0.166
specjbb.forkjoin.workers 224 {Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 204335 IR
High-bound (settled) is 179514 IR
