Hewlett Packard Enterprise Synergy 480 Gen10 171641 SPECjbb2015-MultiJVM max-jOPS
132472 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: March 06, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

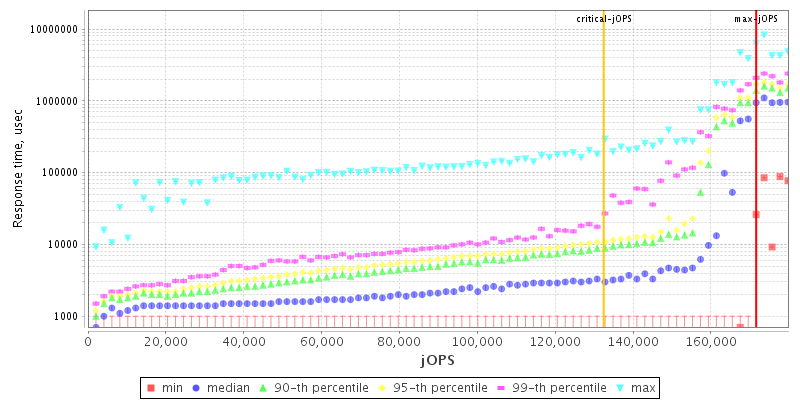

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSynergy 480 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelSynergy 480 Gen10
Form FactorHalf-Height Compute Module
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.7 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionI42 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 400 GB SSD SATA
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)24 x 32 GB
Memory Details32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)6 x 2650
Other HardwareNone
Cabinet/Housing/EnclosureSynergy 12000 Frame
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://suse.com/
Version4.12.14-23-default
AvailableJul-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Memory Partrol Scrubbing=Disabled
  • Enhanced Processor Performance=Enabled
  • LLC Deadline Allocation=Disabled
  • LLC Prefetcher=Enabled
  • XPT Prefetcher=Enabled
  • Advanced Memory Protection=Advanced ECC Support
  • Memory Pre-Failure notification=Disabled
  • Advanced RAS Recovery Support=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 131072
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • systemctl stop systemd-update-utmp-runlevel.service
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx3g -Xmn2g

Tuning None
Notes

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:-UseBiasedLocking -XX:UseAVX=0

Tuning None
Notes

Used numactl to affinitize each Backend JVM to a NUMA node.

  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx3g -Xmn2g -XX:ParallelGCThreads=56

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 169598 171641 173685 175728 177771
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 99102 131796 142353 146099 150186 132472
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2043 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
1000us 100124 / 96037 4087 / 6130 2043 / 4087 - / 2043 - / 2043 - / 2043
5000us 165511 / 167555 155295 / 157338 89907 / 91951 71517 / 73561 42910 / 44954 - / 2043
10000us 165511 / 167555 159381 / 161425 138948 / 140991 126688 / 128731 100124 / 98081 2043 / 4087
25000us 165511 / 167555 161425 / 163468 155295 / 157338 155295 / 157338 130774 / 132818 10217 / 8173
50000us 165511 / 167555 161425 / 163468 155295 / 157338 155295 / 157338 145078 / 140991 30650 / 12260
75000us 165511 / 167555 165511 / 163468 157338 / 159381 155295 / 157338 145078 / 147121 30650 / 32694
100000us 165511 / 167555 165511 / 167555 157338 / 159381 155295 / 157338 151208 / 149165 69474 / 51084
200000us 169598 / 171641 165511 / 167555 159381 / 161425 157338 / 159381 155295 / 157338 134861 / 128731
500000us 169598 / 171641 165511 / 167555 165511 / 163468 159381 / 161425 159381 / 161425 155295 / 157338
1000000us 171641 / - 171641 / - 169598 / 171641 165511 / 167555 165511 / 167555 159381 / 161425

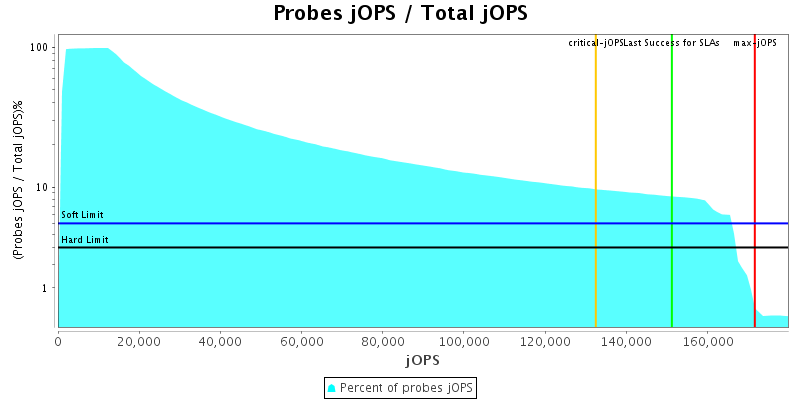

Probes jOPS / Total jOPS

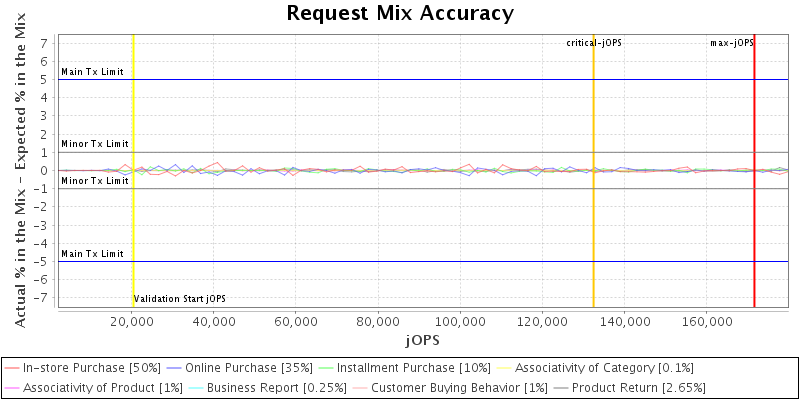

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

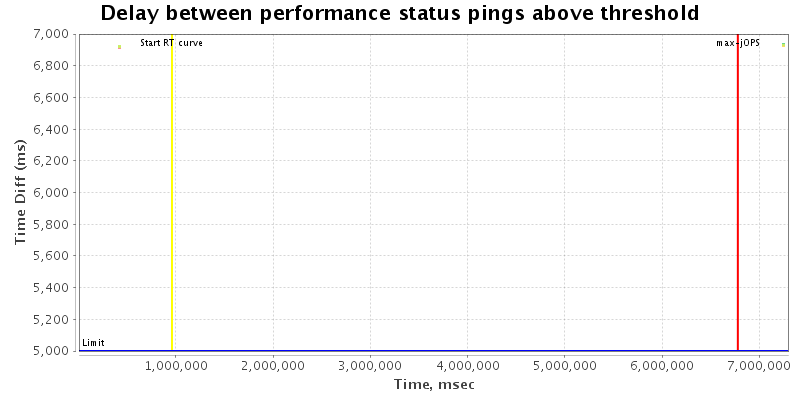

Delay between status pings

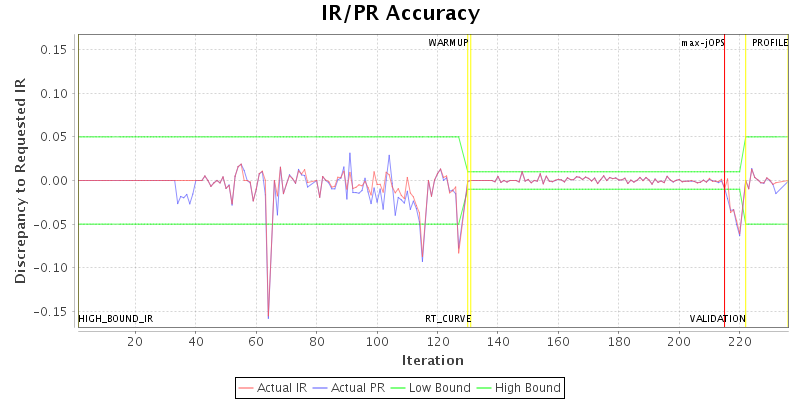

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.forkjoin.workers 112 {Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 204335 IR
High-bound (settled) is 183562 IR
