SPECjbb2015
Copyright © 2015-2018 Standard Performance Evaluation Corporation
Cisco Systems Cisco UCS C125 M5 Rack Server Node 77234 SPECjbb2015-MultiJVM max-jOPS
44545 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: Sep 10, 2018
SPEC license #: 9019 Hardware Availability: Aug-2018 Software Availability: July-2018 Publication: Thu Sep 27 14:33:39 EDT 2018
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores32
Total Threads64
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS C125 M5 Rack Server Node
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableAug-2018
ModelCisco UCS C125 M5 Rack Server Node
Form Factor1U Rack
CPU NameAMD EPYC 7601
CPU Characteristics32 Core, 2.20 GHz, 8MB L3 cache per 4 core (Turbo Boost Technology up to 3.20 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System32
Cores Per Chip32
Threads Per System64
Threads Per Core2
VersionC125.4.0.0.16.0511180518
CPU Frequency (MHz)2200
Primary Cache64KB(I)+32KB(D) on chip per core
Secondary Cache512KB (I+D)on chip per core
Tertiary Cache8MB L3 cache per 4 core
Other CacheNone
Disk1x 1.2TB 10K RPM HDD SAS
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)8 x 64GB
Memory Details64 GB 4DRx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)1x 10 Gbit Qlogic NIC
Power Supply Quantity and Rating (W)1 x 2400W
Other HardwareNone
Cabinet/Housing/EnclosureCisco UCS C4200 Series Rack Server Chassis
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.4.120-94.17-default
AvailableMarch-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJuly-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Performance Determinism set to Power Deterministic
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile set to latency Performance
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 24000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line --add-modules java.xml.bind -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:-UsePerfData -server --add-modules=java.xml.bind -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms120g -Xmx120g -Xmn118g -XX:SurvivorRatio=80 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32
Tuning Numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line --add-modules java.xml.bind -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 76281 77234 78188 79141 80095
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 29082 46245 49037 51080 52061 44545
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 954 - / 954 - / 954 - / 954 - / 954 - / 954
1000us 10489 / 11442 2861 / 3814 954 / 1907 954 / 1907 - / 954 - / 954
5000us 61978 / 62932 38140 / 39094 19070 / 20024 18117 / 19070 15256 / 16210 954 / 1907
10000us 64839 / 65792 58164 / 59118 41954 / 42908 37187 / 38140 28605 / 29559 5721 / 2861
25000us 65792 / 66746 63885 / 64839 57211 / 58164 54350 / 55304 46722 / 45768 25745 / 2861
50000us 66746 / 67699 64839 / 65792 60071 / 61025 59118 / 60071 51490 / 45768 25745 / 2861
75000us 66746 / 67699 65792 / 66746 61978 / 62932 60071 / 61025 54350 / 48629 25745 / 2861
100000us 67699 / 68653 65792 / 66746 63885 / 64839 61978 / 62932 54350 / 50536 25745 / 2861
200000us 72467 / 73420 67699 / 68653 65792 / 66746 64839 / 65792 59118 / 60071 25745 / 2861
500000us 75327 / 76281 72467 / 73420 69606 / 70560 67699 / 68653 65792 / 66746 60071 / 30512
1000000us 77234 / - 76281 / 77234 74374 / 75327 73420 / 74374 72467 / 73420 67699 / 68653

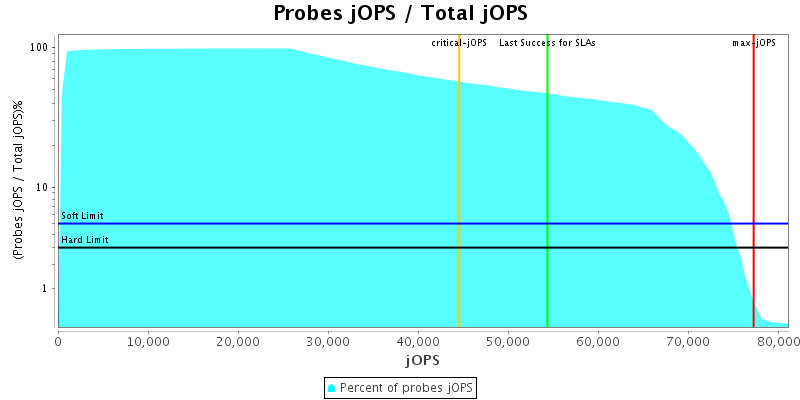

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

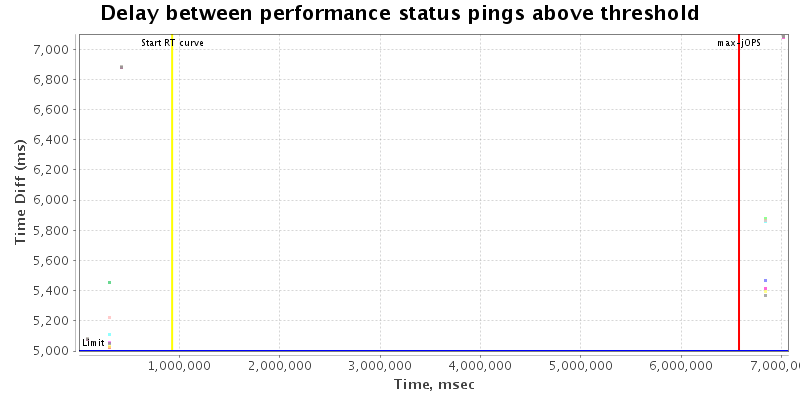

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 111
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 64 {Tier1=100, Tier2=1, Tier3=16}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 64 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 95351 IR
High-bound (settled) is 83092 IR
