SPECjbb2015
Copyright © 2015-2018 Standard Performance Evaluation Corporation
Inspur Corporation Inspur NF8260M5 177561 SPECjbb2015-MultiJVM max-jOPS
59992 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Beijing, P.R.C Test date: June 17, 2018
SPEC license #: 3358 Hardware Availability: Jul-2017 Software Availability: Apr-2018 Publication: Thu Jul 12 13:24:15 EDT 2018
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

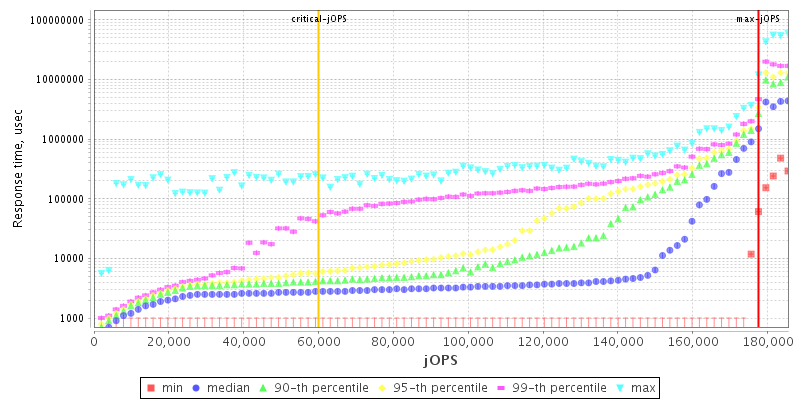

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameInspur NF8260M5
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableJul-2017
ModelInspur NF8260M5
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50GHz (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
Version4.0.1
CPU Frequency (MHz)2500
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 200GB SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)48 x 16GB
Memory Details48 x 16GB 2Rx4 PC4-2666V-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.4.21-69-default
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 10.0.1
AvailableApr-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • IMC level interleave set to 1-Way
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g --add-modules=java.xml.bind
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server --add-modules=java.xml.bind -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g --add-modules=java.xml.bind
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 175588 177561 179534 181507 183480
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 40444 48336 60173 72010 91739 59992
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1973 / 3946 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 21702 / 23675 5919 / 7892 3946 / 5919 3946 / 5919 1973 / 3946 - / 1973
5000us 163751 / 165724 145995 / 147967 84835 / 86808 49322 / 51295 29593 / 31566 - / 1973
10000us 163751 / 165724 149940 / 151913 112455 / 114428 90753 / 92726 39458 / 41431 3946 / 5919
25000us 165724 / 167696 157832 / 159805 136130 / 138103 112455 / 114428 47350 / 49322 3946 / 5919
50000us 169669 / 171642 159805 / 161778 140076 / 142049 120347 / 122320 59187 / 61160 3946 / 5919
75000us 169669 / 171642 159805 / 161778 144022 / 145995 128238 / 130211 71024 / 72997 3946 / 5919
100000us 169669 / 171642 163751 / 165724 145995 / 147967 134157 / 132184 90753 / 92726 3946 / 5919
200000us 171642 / 173615 165724 / 167696 155859 / 157832 151913 / 153886 140076 / 142049 92726 / 9864
500000us 175588 / 177561 171642 / 173615 165724 / 167696 163751 / 165724 157832 / 159805 145995 / 147967
1000000us 177561 / - 175588 / 177561 171642 / 173615 171642 / 173615 169669 / 171642 159805 / 161778

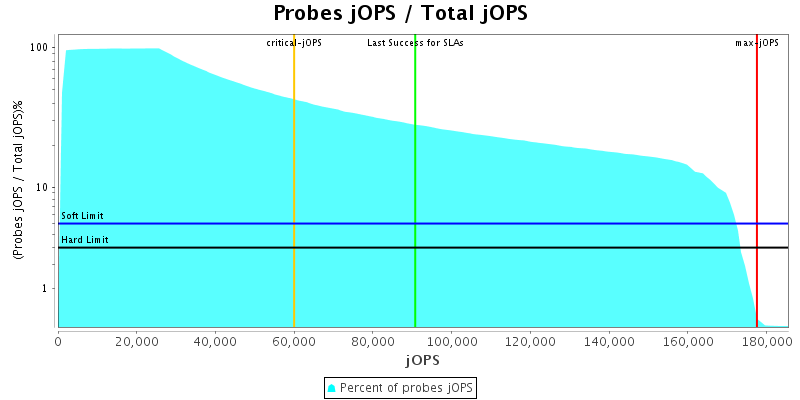

Number of probes
Probes jOPS / Total jOPS

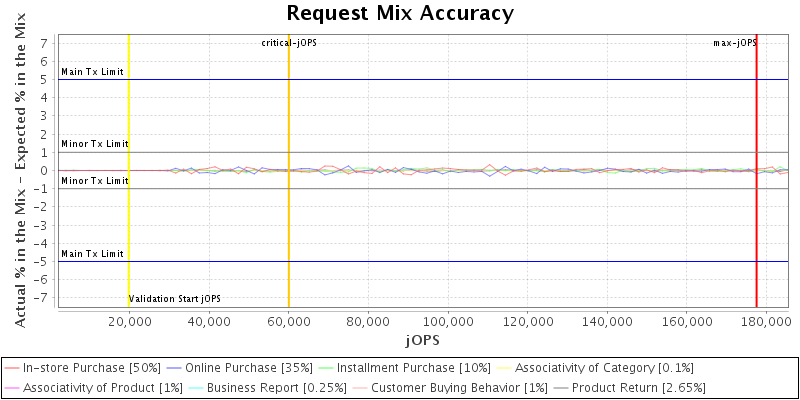

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

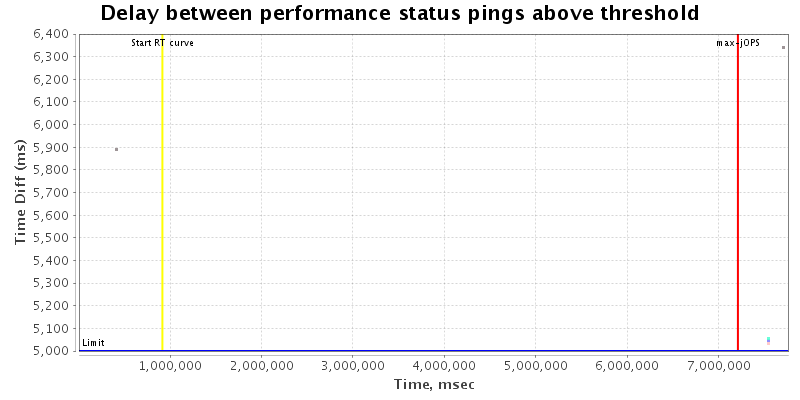

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

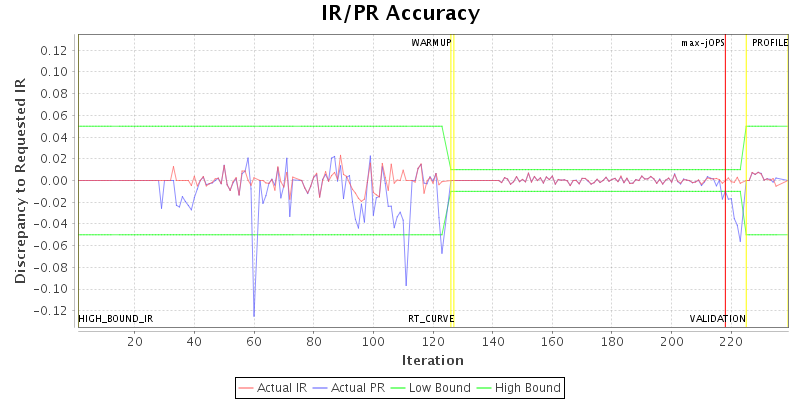

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.forkjoin.workers 112 {Tier1=172, Tier2=56, Tier3=28}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 197290 IR
High-bound (settled) is 190974 IR
