SPECjbb2015
Copyright © 2015-2018 Standard Performance Evaluation Corporation
Sugon A620-G30 150654 SPECjbb2015-MultiJVM max-jOPS
46165 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Sugon Test Sponsor: Sugon Test location: Beijing, CHN Test date: Apr 24, 2018
SPEC license #: 9046 Hardware Availability: Dec-2017 Software Availability: Mar-2018 Publication: Tue May 15 18:31:57 EDT 2018
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 8)

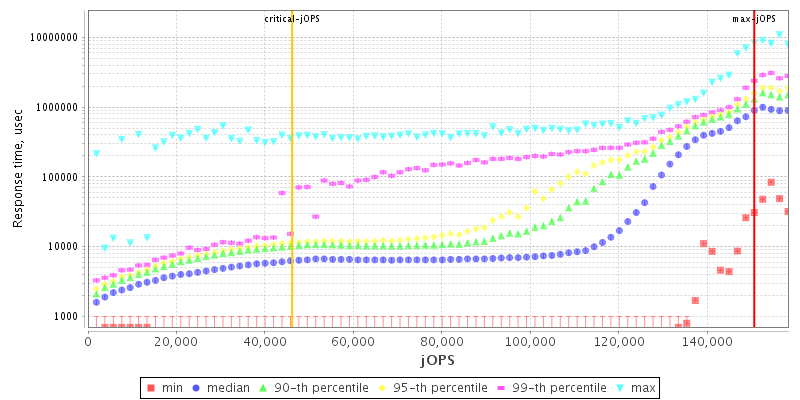

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSugon
Vendor URLhttp://www.sugon.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameA620-G30
VendorSugon
Vendor URLhttp://www.sugon.com/
AvailableDec-2017
ModelA620-G30
Form Factor2U Rack
CPU NameAMD EPYC 7601
CPU Characteristics32-Core, 2.20GHz, 8MB L3 Cache per 4-core (Turbo Boost Technology up to 3.20 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
VersionV0.29
CPU Frequency (MHz)2200
Primary Cache16KB(I)+32KB(D) per core
Secondary Cache512 KB (I+D) per core
Tertiary Cache8MB (I+D) on chip per 4-core
Other CacheNone
Disk2x 480GB SATA SSD
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB
Memory Details64GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)1 Gbps Integrated NICs with 2 ports
Power Supply Quantity and Rating (W)2 x 550
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • No:The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • No:The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes:The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.4.73-5-default
AvailableSep-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 9.0.4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM (build 9.0.4+11, mixed mode)
AvailableJan-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Cooling Policy is set as Performance Mode on BMC webpage.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms29g -Xmx29g -Xmn28g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m
Tuning
  • numactl --cpunodebind=$(($gnum - 1)) --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning
  • numactl --cpunodebind=$(($gnum - 1)) --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 148747 150654 152561 154468 156375
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 27651 44814 46912 54826 65791 46165
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1907 - / 1907 - / 1907 - / 1907 - / 1907 - / 1907
1000us - / 1907 - / 1907 - / 1907 - / 1907 - / 1907 - / 1907
5000us 122049 / 123956 30512 / 32419 15256 / 17163 13349 / 15256 9535 / 11442 - / 1907
10000us 125863 / 127770 114421 / 116328 43861 / 45768 36233 / 38140 26698 / 28605 3814 / 1907
25000us 129677 / 131584 122049 / 123956 104886 / 106793 91536 / 93443 45768 / 43861 13349 / 1907
50000us 131584 / 133491 125863 / 127770 112514 / 114421 102979 / 101072 51489 / 43861 13349 / 1907
75000us 131584 / 133491 127770 / 129677 114421 / 116328 104886 / 106793 59117 / 53396 13349 / 1907
100000us 133491 / 135398 127770 / 129677 116328 / 118235 106793 / 108700 64838 / 66745 13349 / 1907
200000us 143026 / 139212 131584 / 133491 125863 / 127770 120142 / 122049 102979 / 104886 13349 / 1907
500000us 148747 / 150654 143026 / 144933 135398 / 137305 133491 / 135398 131584 / 133491 110607 / 30512
1000000us 150654 / - 150654 / - 146840 / 148747 144933 / 146840 144933 / 146840 131584 / 133491

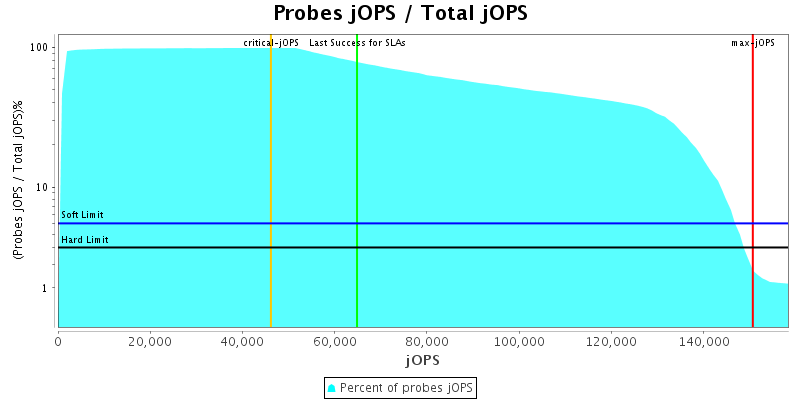

Number of probes
Probes jOPS / Total jOPS

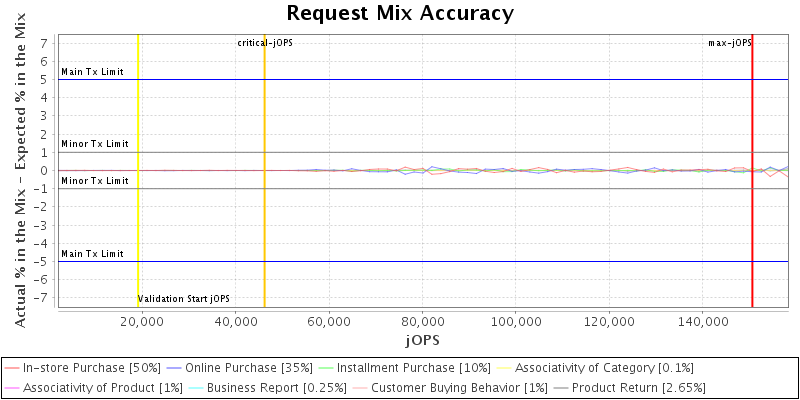

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

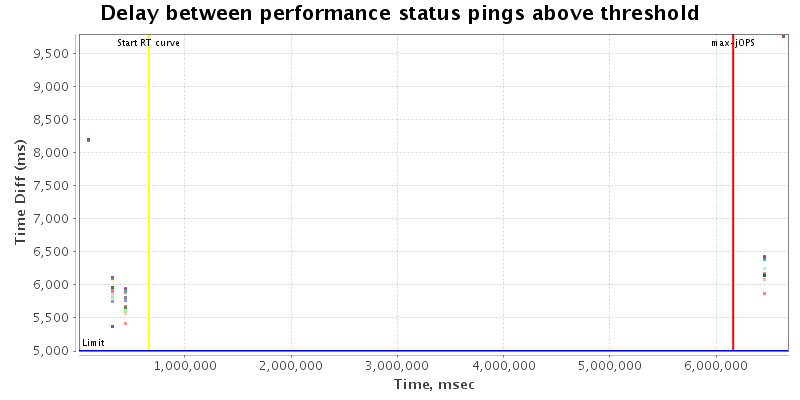

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

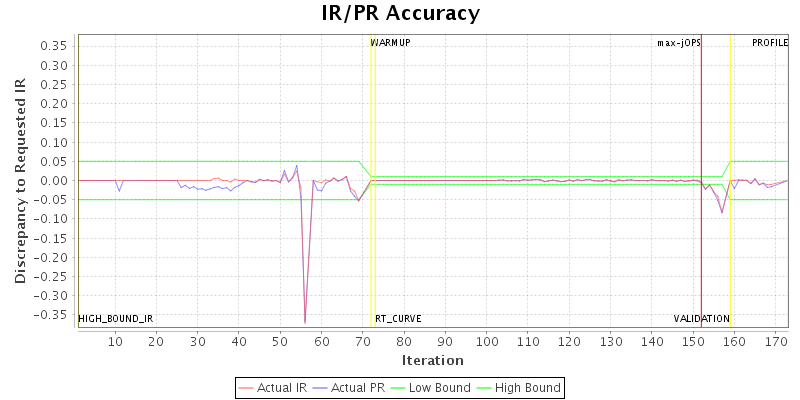

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 256 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 800000
specjbb.forkjoin.workers 128 {Tier1=172, Tier2=46, Tier3=24}
specjbb.group.count 1 8
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 128 5
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 190701 IR
High-bound (settled) is 159051 IR
Copyright © 2015-2018 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.01, May 25, 2017]
