SPECjbb2015
Copyright © 2015-2018 Standard Performance Evaluation Corporation
H3C UniServer R6900 G3 262190 SPECjbb2015-Composite max-jOPS
102804 SPECjbb2015-Composite critical-jOPS
Tested by: H3C Test Sponsor: H3C Test location: Hangzhou, ZheJiang, China Test date: Mar 21, 2018
SPEC license #: 9066 Hardware Availability: Oct-2017 Software Availability: Jan-2018 Publication: Fri Apr 13 11:24:41 EDT 2018
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

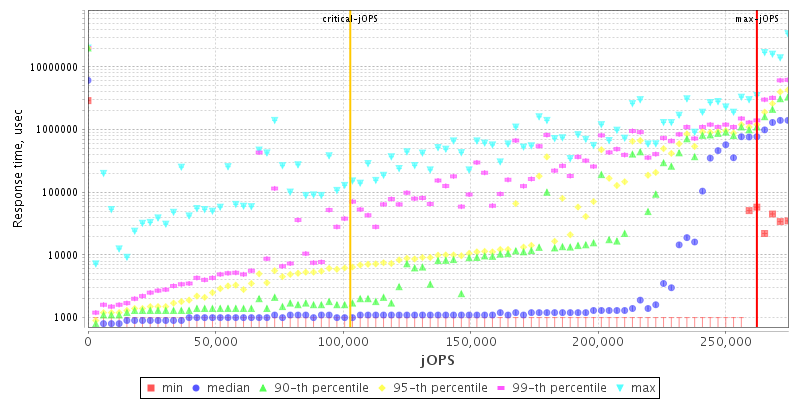

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorH3C
Vendor URLhttp://www.h3c.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameH3C UniServer R6900 G3
VendorH3C
Vendor URLhttp://www.h3c.com
AvailableOct-2017
ModelH3C UniServer R6900 G3
Form Factor4U
CPU NameIntel(R) Xeon(R) Platinum 8180 CPU
CPU Characteristics28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache39424 KB (I+D) on chip per chip
Other CacheNone
Disk1 x 300 GB SSD SATA
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)48 x 16 GB
Memory Details768 GB (48 x 16 GB 2Rx8 PC4-2666V)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE Linux Enterprise Server
Vendor URLhttps://www.suse.com/
Version4.4.21-69-default
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 9.0.4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 9.0.4
AvailableJan-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub was disabled
  • Energy Performance BIAS Mode set to Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 5000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms530g -Xmx530g -Xmn500g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=17 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k --add-modules=java.xml.bind
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 259141 262190 265239 268287 271336
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 80622 83332 98512 123128 140907 102804
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 39633 / 42682 - / 3049 - / 3049 - / 3049 - / 3049 - / 3049
1000us 237800 / 240849 103656 / 73169 3049 / 6097 3049 / 6097 - / 3049 - / 3049
5000us 253044 / 246946 228654 / 231703 146339 / 124998 79267 / 73169 60974 / 54877 - / 3049
10000us 253044 / 246946 228654 / 231703 158533 / 161582 146339 / 149387 91462 / 67072 15244 / 6097
25000us 253044 / 256092 237800 / 240849 210362 / 179874 189021 / 167680 91462 / 67072 18292 / 6097
50000us 253044 / 256092 237800 / 240849 219508 / 179874 195118 / 167680 112803 / 67072 48780 / 6097
75000us 253044 / 256092 237800 / 240849 219508 / 179874 198167 / 176826 158533 / 67072 64023 / 6097
100000us 253044 / 256092 237800 / 240849 222557 / 201216 198167 / 176826 161582 / 67072 91462 / 6097
200000us 253044 / 256092 240849 / 243898 222557 / 213410 219508 / 179874 189021 / 67072 115851 / 36585
500000us 262190 / - 253044 / 249995 237800 / 234751 228654 / 213410 222557 / 167680 189021 / 73169
1000000us 262190 / - 262190 / - 259141 / 256092 253044 / 256092 237800 / 234751 237800 / 73169

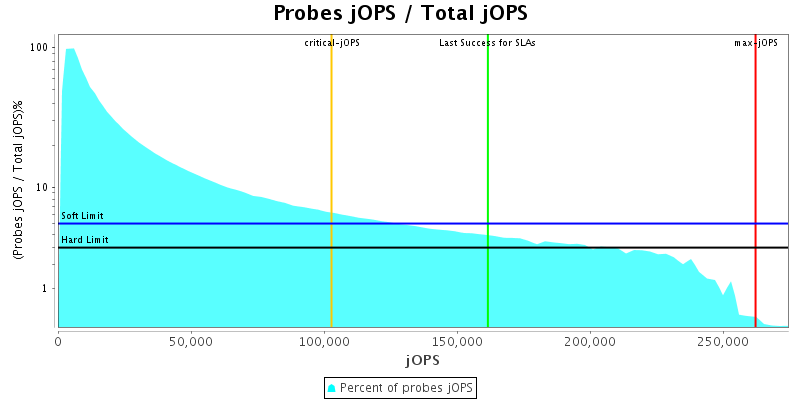

Number of probes
Probes jOPS / Total jOPS

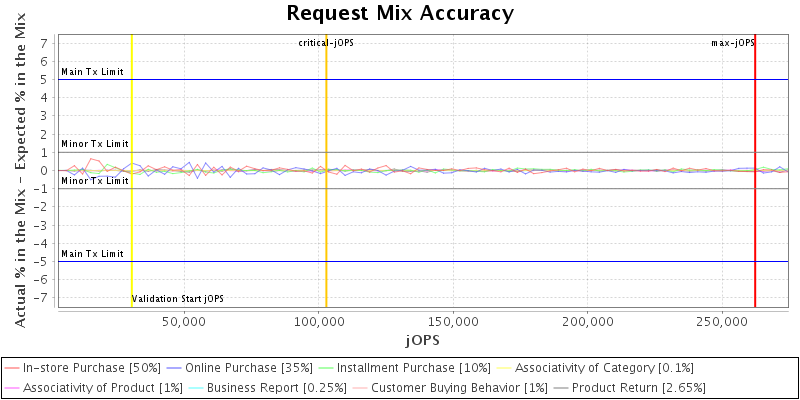

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

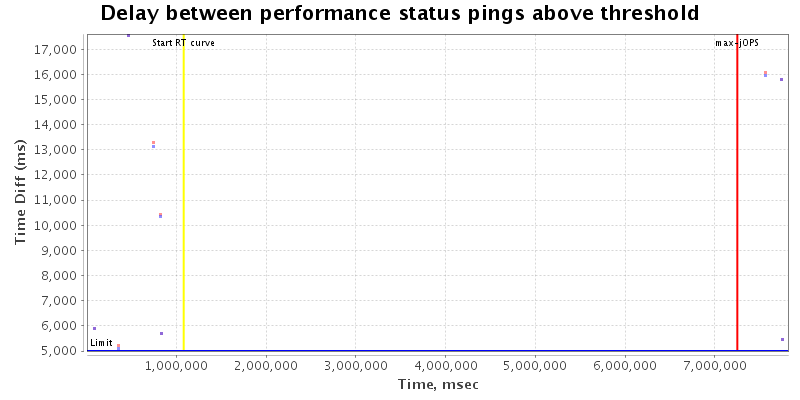

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

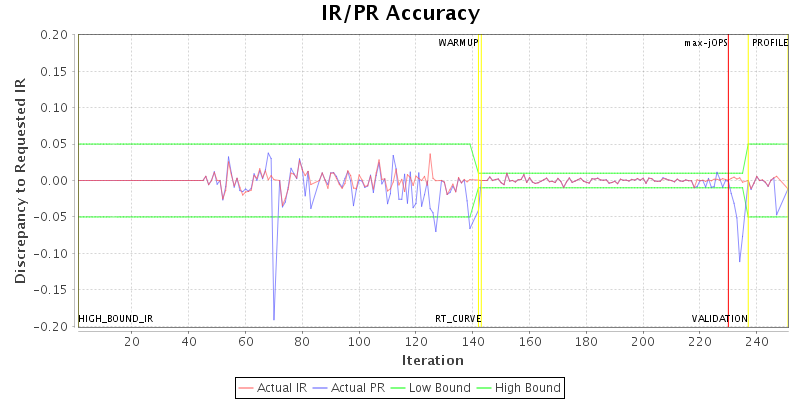

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 0
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 2
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.rtcurve.warmup.step 0.1 0.9
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 224 {=192, Tier1=224, Tier2=110, Tier3=55}
specjbb.heartbeat.threshold 100000 200000
specjbb.mapreducer.pool.size 224 224
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 304872 IR
High-bound (settled) is 273858 IR
