SPECjbb2015 Report for jbb2015-20180202-00283 : 159381 max-jOPS ; 123325 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR650
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Aug-2017
Model	ThinkSystem SR650
Form Factor	2U
CPU Name	Intel Xeon Platinum 8180M
CPU Characteristics	28 core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	None
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1x 800GB SATA SSD
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	24 x 32 GB
Memory Details	32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)	1x 10 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.4 (Maipo)
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	3.10.0-693
Available	Jul-2017
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 9.0.1
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 9.0.1
Available	Oct-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance SNC set to Disable Patrol Scrub set to Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance SELINUX=disabled ulimit -n 32768 echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 2000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+UseCondCardMark
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=20 -XX:MaxTenuringThreshold=15 --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=56 -XX:-UseBiasedLocking -XX:InlineSmallCode=10k -verbose:gc
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms3g -Xmx3g -Xmn2g --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+UseCondCardMark -XX:ParallelGCThreads=5
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	157338	159381	161425	163468	165511

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	92972	123963	130008	136223	139764	123325

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2043	- / 2043	- / 2043	- / 2043	- / 2043	- / 2043
1000us	120558 / 8173	2043 / 4087	- / 2043	- / 2043	- / 2043	- / 2043
5000us	153251 / 155295	151208 / 153251	79691 / 81734	59257 / 61300	36780 / 38824	- / 2043
10000us	155295 / 157338	151208 / 153251	143034 / 145078	128731 / 130774	91951 / 93994	2043 / 4087
25000us	155295 / 157338	151208 / 153251	145078 / 147121	143034 / 145078	126688 / 122601	26564 / 10217
50000us	155295 / 157338	151208 / 153251	145078 / 147121	143034 / 145078	138948 / 124644	32694 / 10217
75000us	155295 / 157338	151208 / 153251	145078 / 147121	143034 / 145078	138948 / 134861	32694 / 10217
100000us	155295 / 157338	151208 / 153251	145078 / 147121	143034 / 145078	143034 / 134861	32694 / 16347
200000us	155295 / 157338	153251 / 155295	149165 / 151208	147121 / 149165	143034 / 145078	108298 / 102167
500000us	159381 / -	155295 / 157338	151208 / 153251	151208 / 153251	147121 / 149165	143034 / 145078
1000000us	159381 / -	159381 / -	157338 / 159381	155295 / 157338	153251 / 155295	147121 / 145078

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

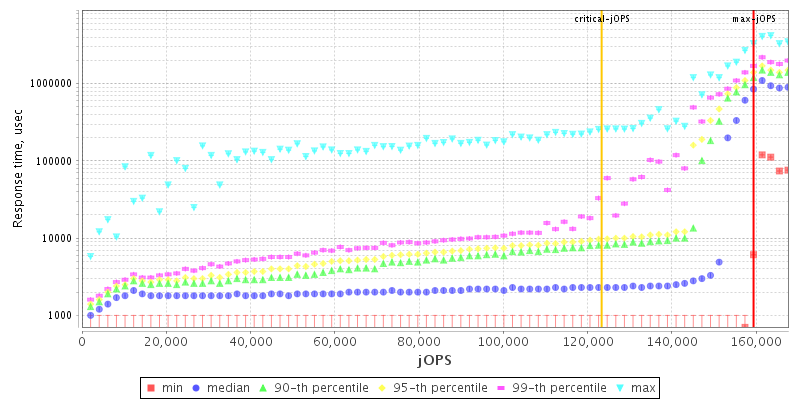

Delay between performance status pings during RT Curve (Response-Throughput Curve)

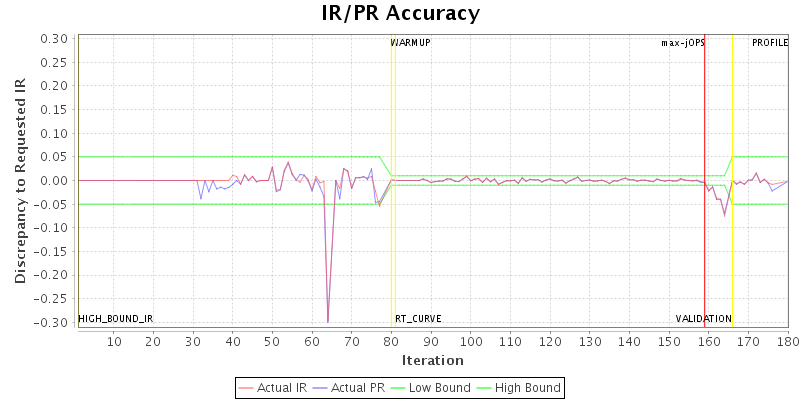

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	256
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.comm.connect.worker.pool.min	1	64
specjbb.customerDriver.threads	64	{probe=64, saturate=64}
specjbb.forkjoin.workers	56	{Tier1=256, Tier2=1, Tier3=28}
specjbb.group.count	1	2
specjbb.mapreducer.pool.size	56	112

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 204335 IR

High-bound (settled) is 170313 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.01, May 25, 2017]

Lenovo Global Technology ThinkSystem SR650	159381 SPECjbb2015-MultiJVM max-jOPS 123325 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Jan 12, 2018
SPEC license #: 9017	Hardware Availability: Aug-2017	Software Availability: Oct-2017	Publication: Thu Mar 1 17:30:05 EST 2018
