Huawei Technologies Co., Ltd FusionServer 8100 V5 686568 SPECjbb2015-MultiJVM max-jOPS
190111 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Hang Zhou,China Test date: Dec 22, 2017
SPEC license #: 3175 Hardware Availability: Dec-2017 Software Availability: Oct-2017 Publication: Fri Jan 19 21:18:57 EST 2018
Benchmark Results Summary

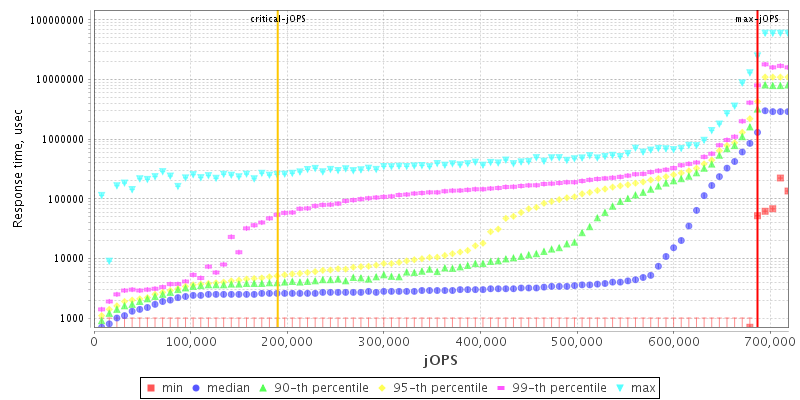

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores224
Total Threads448
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer 8100 V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
AvailableDec-2017
ModelFusionServer 8100 V5
Form Factor8U
CPU NameIntel(R) Xeon(R) Platinum 8180
CPU Characteristics28Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System224
Cores Per Chip28
Threads Per System448
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024KB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk2x 600GB 10K RPM
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32GB
Memory Details2RX4 PC4-2666V
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)4 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.3
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.3 (Maipo)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u151
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM,version 1.8.0_151
AvailableOct-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Enable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution
Tuning numactl used to affinitize each Backend JVM to a single NUMA node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=8
Tuning numactl used to affinitize each TxInjector JVM to a single NUMA node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 678677 686568 694460 702351 710243
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 138103 153886 185452 224910 280151 190111
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 7892 - / 7892 - / 7892 - / 7892 - / 7892 - / 7892
1000us 299880 / 307772 23675 / 31566 7892 / 15783 - / 7892 - / 7892 - / 7892
5000us 623436 / 631327 568194 / 576086 315664 / 299880 181507 / 189398 110482 / 102591 - / 7892
10000us 631327 / 639219 583978 / 591869 426146 / 434037 339338 / 347230 134157 / 142049 15783 / 7892
25000us 639219 / 647110 607652 / 615544 497170 / 505062 402471 / 410363 149940 / 157832 15783 / 7892
50000us 647110 / 655002 615544 / 623436 520845 / 528737 426146 / 434037 181507 / 189398 15783 / 7892
75000us 647110 / 655002 623436 / 631327 536628 / 544520 457712 / 465604 220965 / 228856 15783 / 7892
100000us 655002 / 662894 623436 / 631327 544520 / 552411 481387 / 489279 276206 / 284097 15783 / 7892
200000us 662894 / 670785 639219 / 647110 599761 / 607652 568194 / 576086 505062 / 512953 86807 / 47350
500000us 678677 / 686568 662894 / 670785 639219 / 647110 639219 / 647110 623436 / 631327 520845 / 512953
1000000us 686568 / - 678677 / 686568 662894 / 670785 662894 / 670785 655002 / 662894 631327 / 639219
Probes jOPS / Total jOPS

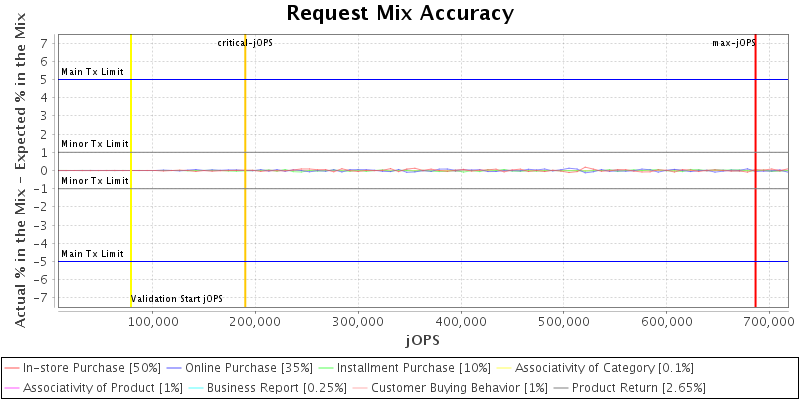

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.controller.handshake.timeout 600000 800000
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 448 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 16
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 448 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 789159 IR
High-bound (settled) is 729146 IR
