Hewlett Packard Enterprise ProLiant DL385 Gen10 145378 SPECjbb2015-MultiJVM max-jOPS
34159 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: October 16, 2017
SPEC license #: 3 Hardware Availability: Nov-2017 Software Availability: Sep-2017 Publication: Tue Nov 21 12:21:24 EST 2017
Benchmark Results Summary

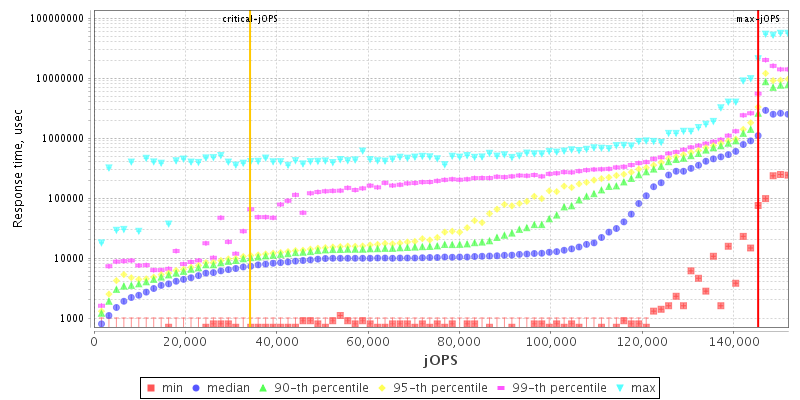

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL385 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2017
ModelProLiant DL385 Gen10
Form Factor2U Rack
CPU NameAMD Epyc 7601
CPU Characteristics32 Core, 2.20 GHz, 8MB L3 cache per 4 core (Turbo Boost Technology up to 3.2 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
VersionA40 10/06/2017
CPU Frequency (MHz)2200
Primary Cache64 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache64 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB SSD SAS
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64G 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.4.73-5-default
AvailableSep-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u144
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Memory Patrol Scrubbing=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Pre-Failure Notification=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • systemctl stop systemd-update-utmp-runlevel.service
  • Added cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms30g -Xmx30g -Xmn28g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:ThreadStackSize=1m

Tuning None
Notes

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-7,64-71 --membind=0
  • numactl --physcpubind=8-15,72-79 --membind=1
  • numactl --physcpubind=16-23,80-87 --membind=2
  • numactl --physcpubind=24-31,88-95 --membind=3
  • numactl --physcpubind=32-39,96-103 --membind=4
  • numactl --physcpubind=40-47,104-111 --membind=5
  • numactl --physcpubind=48-55,112-119 --membind=6
  • numactl --physcpubind=56-63,120-127 --membind=7
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to a physical core in a NUMA node.

  • numactl --physcpubind=0 --membind=0
  • numactl --physcpubind=8 --membind=1
  • numactl --physcpubind=16 --membind=2
  • numactl --physcpubind=24 --membind=3
  • numactl --physcpubind=32 --membind=4
  • numactl --physcpubind=40 --membind=5
  • numactl --physcpubind=48 --membind=6
  • numactl --physcpubind=56 --membind=7
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 143744 145378 147011 148645 150278
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 21643 29947 37978 42061 44920 34159
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1633 - / 1633 - / 1633 - / 1633 - / 1633 - / 1633
1000us 4900 / 6534 1633 / 3267 - / 1633 - / 1633 - / 1633 - / 1633
5000us 94741 / 96374 21235 / 22868 14701 / 16335 13068 / 6534 1633 / 3267 - / 1633
10000us 114342 / 115976 70239 / 71872 32669 / 34303 31036 / 32669 22868 / 17968 - / 1633
25000us 119243 / 120876 111075 / 112709 89840 / 91474 75139 / 76773 31036 / 27769 1633 / 3267
50000us 120876 / 122509 115976 / 117609 99641 / 101275 84940 / 86573 39203 / 34303 16335 / 3267
75000us 122509 / 124143 117609 / 119243 104541 / 106175 91474 / 89840 45737 / 40836 16335 / 3267
100000us 124143 / 125776 119243 / 120876 106175 / 107808 98008 / 96374 45737 / 44103 16335 / 3267
200000us 132310 / 133944 124143 / 125776 115976 / 117609 109442 / 111075 75139 / 76773 16335 / 3267
500000us 143744 / 145378 137211 / 138844 129043 / 130677 127410 / 129043 124143 / 125776 91474 / 27769
1000000us 145378 / - 143744 / 145378 140478 / 142111 140478 / 142111 137211 / 138844 124143 / 125776

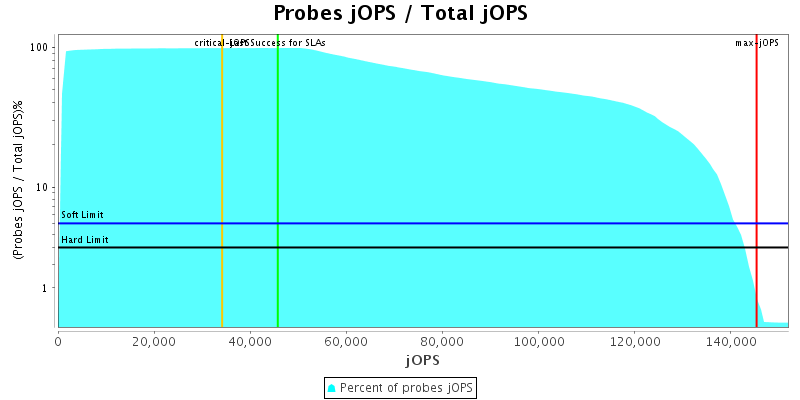

Probes jOPS / Total jOPS

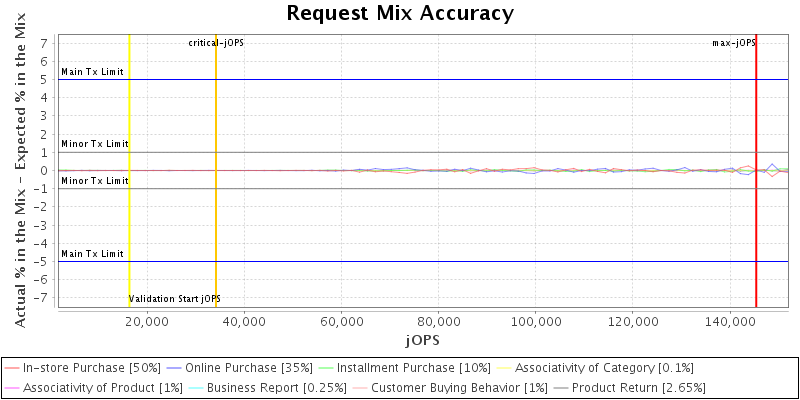

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

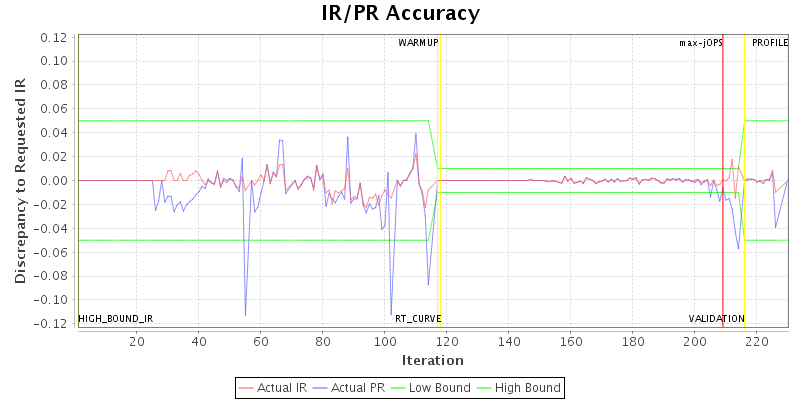

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 111
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 128 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 128 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 163346 IR
High-bound (settled) is 158234 IR
