SPECjbb2015
Copyright © 2015-2017 Standard Performance Evaluation Corporation
H3C H3C UniServer R4900 G3 141360 SPECjbb2015-Distributed max-jOPS
121827 SPECjbb2015-Distributed critical-jOPS
Tested by: H3C Test Sponsor: H3C Test location: Hangzhou, ZheJiang, China Test date: Oct 23, 2017
SPEC license #: 9066 Hardware Availability: Jul-2017 Software Availability: Oct-2017 Publication: Thu Nov 9 17:15:36 EST 2017
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorH3C
Vendor URLhttp://www.h3c.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameH3C UniServer R4900 G3
VendorH3C
Vendor URLhttp://www.h3c.com
AvailableJul-2017
ModelH3C UniServer R4900 G3
Form Factor2U
CPU NameIntel(R) Xeon(R) Platinum 8180M CPU
CPU Characteristics28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache39424 KB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details1536 GB (24 x 64 GB 4Rx4 PC4-2666V-L)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)1 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://redhat.com/
VersionRed Hat Enterprise Linux Server release 7.3 (Maipo)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 9.0.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 9.0.1
AvailableOct-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameH3C UniServer R4900 G3
VendorH3C
Vendor URLhttp://www.h3c.com
AvailableJul-2017
ModelH3C UniServer R4900 G3
Form Factor2U
CPU NameIntel(R) Xeon(R) Platinum 8180 CPU
CPU Characteristics28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache39424 KB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)384
# and size of DIMM(s)24 x 16 GB
Memory Details384 GB (24 x 16 GB 2Rx8 PC4-2666V)
# and type of Network Interface Cards (NICs)2x 10 Gbit NICs
Power Supply Quantity and Rating (W)1 x 550
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server release 7.3 (Maipo)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 9.0.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 9.0.1
AvailableOct-2017
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Hyper Threading=Enabled
  • Memory Patrol Scrub was disabled
  • Energy Performance BIAS Mode set to Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm active profile was throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:+UseParallelOldGC -Xms735g -Xmx735g -Xmn681g -XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 --add-modules=java.xml.bind
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Hyper Threading=Enabled
  • Memory Patrol Scrub was disabled
  • Energy Performance BIAS Mode set to Performance
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning
  • SE Linux = Disabled
  • tuned-adm active profile was throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=28 --add-modules=java.xml.bind
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=28 --add-modules=java.xml.bind
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 139657 141360 143063 144766 146469
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 97930 126410 126410 129924 131992 121827
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1703 - / 1703 - / 1703 - / 1703 - / 1703 - / 1703
1000us - / 1703 - / 1703 - / 1703 - / 1703 - / 1703 - / 1703
5000us 139657 / 141360 134547 / 126032 71531 / 73235 59610 / 61313 37469 / 35766 - / 1703
10000us 139657 / 141360 139657 / 141360 134547 / 136250 127735 / 126032 97078 / 98782 3406 / 1703
25000us 139657 / 141360 139657 / 141360 137954 / 136250 134547 / 136250 129438 / 115813 17031 / 8516
50000us 139657 / 141360 139657 / 141360 137954 / 136250 134547 / 136250 129438 / 115813 78344 / 10219
75000us 139657 / 141360 139657 / 141360 137954 / 136250 134547 / 136250 132844 / 122625 78344 / 11922
100000us 139657 / 141360 139657 / 141360 137954 / 136250 134547 / 136250 132844 / 131141 78344 / 11922
200000us 139657 / 141360 139657 / 141360 137954 / 139657 137954 / 136250 134547 / 136250 110703 / 35766
500000us 141360 / - 139657 / 141360 137954 / 139657 137954 / 139657 137954 / 136250 132844 / 131141
1000000us 141360 / - 141360 / - 139657 / 141360 139657 / 141360 139657 / 141360 137954 / 136250

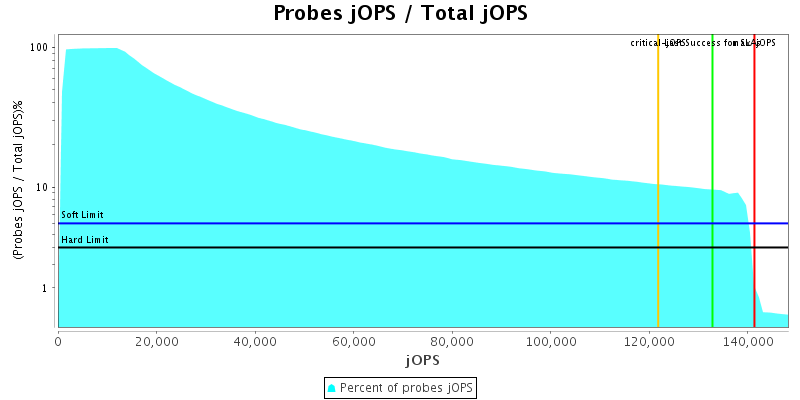

Number of probes
Probes jOPS / Total jOPS

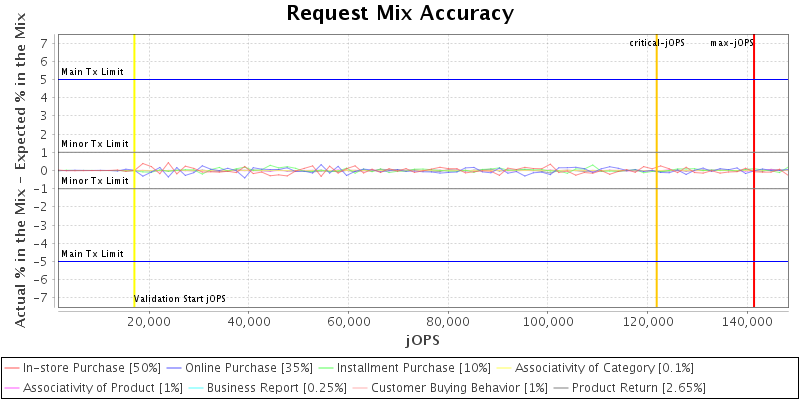

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

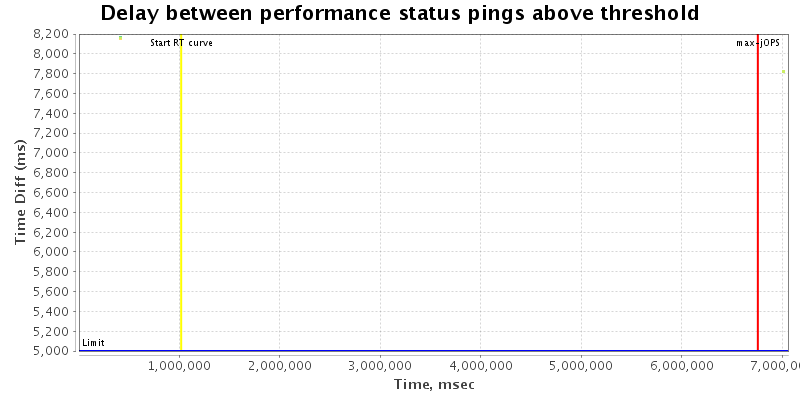

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

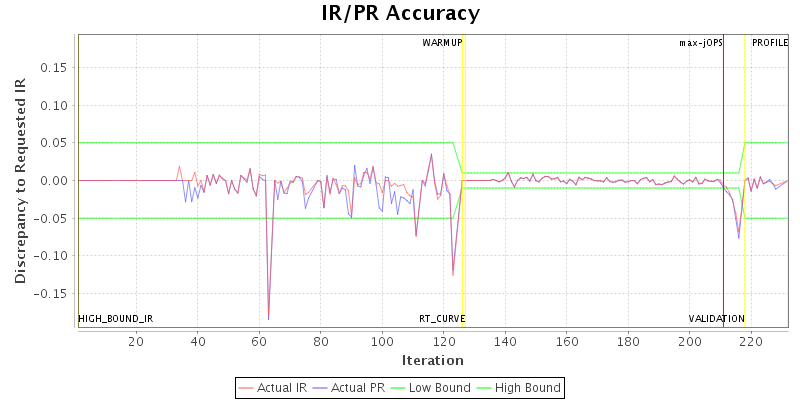

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.controller.host localhost 192.168.10.2
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 112 {=256, Tier1=256, Tier2=56, Tier3=28}
specjbb.group.count 1 2
specjbb.heartbeat.threshold 100000 200000
specjbb.mapreducer.pool.size 112 112
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 170313 IR
High-bound (settled) is 149629 IR
