SPECjbb2015 Report for jbb2015-20170927-00236 : 151767 max-jOPS ; 77724 critical-jOPS

Hardware hw_1
Name	H3C UniServer R4900 G3
Vendor	H3C
Vendor URL	http://www.h3c.com
Available	Jul-2017
Model	H3C UniServer R4900 G3
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Platinum 8180M CPU
CPU Characteristics	28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	None
CPU Frequency (MHz)	2500
Primary Cache	32 KB(I)+32 KB(D) per core
Secondary Cache	1024 KB (I+D) per core
Tertiary Cache	39424 KB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	384
# and size of DIMM(s)	24 x 16GB
Memory Details	384 GB (24 x 16 GB 2Rx8 PC4-2666V-R)
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 550
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	n/a
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP2
Vendor	SUSE
Vendor URL	http://www.suse.com
Version	SUSE Linux Enterprise Server 12 SP2 (x86_64)
Available	Nov-2016
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u144
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 1.8.0_144
Available	Jul-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS tuning SNC was disabled Memory Patrol Scrub disabled Energy Performance BIAS Mode set to Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms330g -Xmx330g -Xmn310g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Tuning	None
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	150002	151767	153532	155296	157061

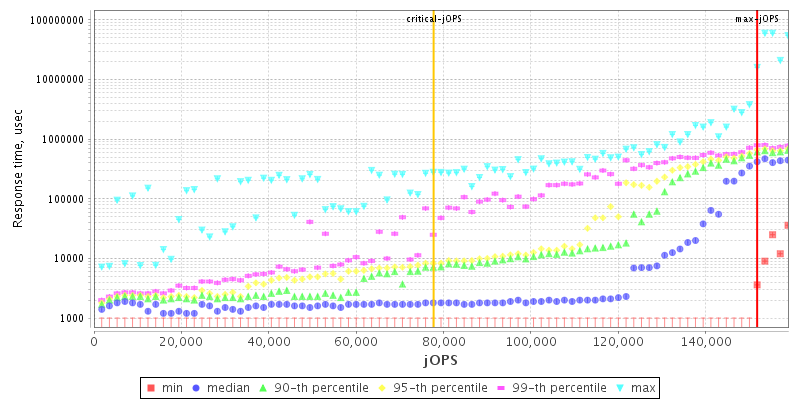

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	62521	67682	78236	89413	95825	77724

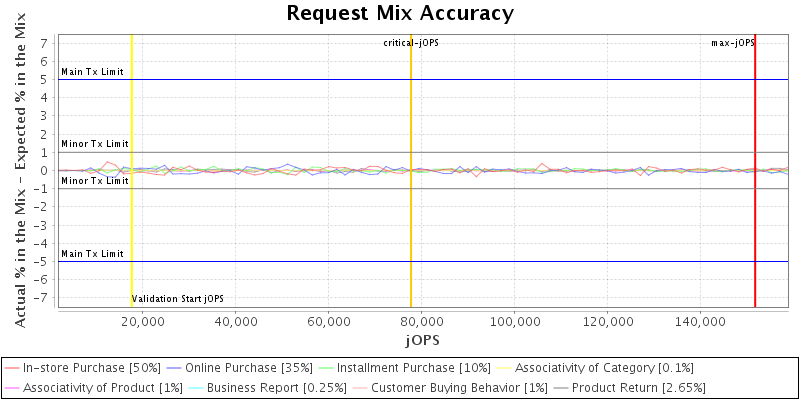

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	256
specjbb.comm.connect.selector.runner.count	0	2
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	256
specjbb.comm.connect.worker.pool.min	1	64
specjbb.controller.maxir.maxFailedPoints	3	3
specjbb.controller.rtcurve.warmup.step	0.1	0.3
specjbb.customerDriver.threads	64	64
specjbb.forkjoin.workers	112	{=112, Tier1=168, Tier2=58, Tier3=28}
specjbb.heartbeat.threshold	100000	150000


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 176473 IR

High-bound (settled) is 163561 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

H3C H3C UniServer R4900 G3	151767 SPECjbb2015-Composite max-jOPS 77724 SPECjbb2015-Composite critical-jOPS
Tested by: H3C	Test Sponsor: H3C	Test location: Hangzhou, ZheJiang, China	Test date: Sep 04, 2017
SPEC license #: 9066	Hardware Availability: Jul-2017	Software Availability: Jul-2017	Publication: Fri Oct 13 14:46:23 EDT 2017


SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 1) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
