SPECjbb2015
Copyright © 2015-2017 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR650 177561 SPECjbb2015-MultiJVM max-jOPS
54418 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jun 21, 2017
SPEC license #: 9017 Hardware Availability: Aug-2017 Software Availability: Apr-2017 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

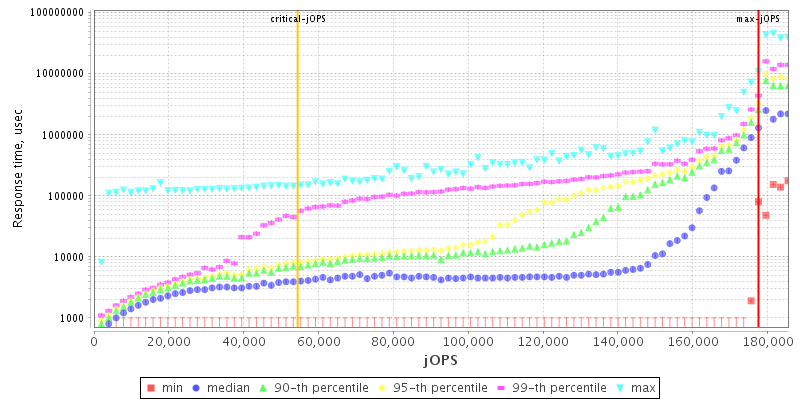

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2017
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)24 x 16384MB
Memory Details16GB 2Rx8 PC4-2666V-RE1-12-DB1
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server
VendorSUSE
Vendor URLhttp://www.suse.com/
VersionSUSE Linux Enterprise Server 12 SP2 (x84_64)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Per Core P-state set to Disable
  • SNC set to Enable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 32768
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 3000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xms29g -Xmx29g -Xmn27g -XX:ThreadStackSize=128k -XX:SurvivorRatio=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -verbose:gc -XX:+PrintGCDetails -XX:+PrintTenuringDistribution -XX:+PrintGCTimeStamps -XX:-UseBiasedLocking -XX:AllocatePrefetchInstr=2
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 175588 177561 179534 181507 183480
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 38471 44390 54254 66092 77929 54418
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1973 / 3946 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 19729 / 21702 5919 / 7892 3946 / 5919 1973 / 3946 - / 1973 - / 1973
5000us 161778 / 163751 130211 / 71024 39458 / 41431 37485 / 33539 23675 / 25648 - / 1973
10000us 163751 / 165724 147967 / 149940 92726 / 78916 67079 / 69051 37485 / 39458 1973 / 3946
25000us 165724 / 167696 157832 / 159805 130211 / 132184 106537 / 108509 43404 / 45377 1973 / 3946
50000us 169669 / 171642 159805 / 161778 136130 / 138103 114428 / 116401 53268 / 55241 1973 / 3946
75000us 169669 / 171642 161778 / 163751 140076 / 142049 118374 / 120347 65106 / 67079 1973 / 3946
100000us 169669 / 171642 163751 / 165724 144022 / 145995 128238 / 130211 76943 / 78916 1973 / 3946
200000us 171642 / 173615 165724 / 167696 157832 / 155859 147967 / 149940 130211 / 132184 84835 / 78916
500000us 175588 / 177561 171642 / 173615 165724 / 167696 165724 / 167696 159805 / 161778 144022 / 130211
1000000us 177561 / - 175588 / 177561 173615 / 175588 171642 / 173615 171642 / 173615 165724 / 149940
Number of probes
Probes jOPS / Total jOPS

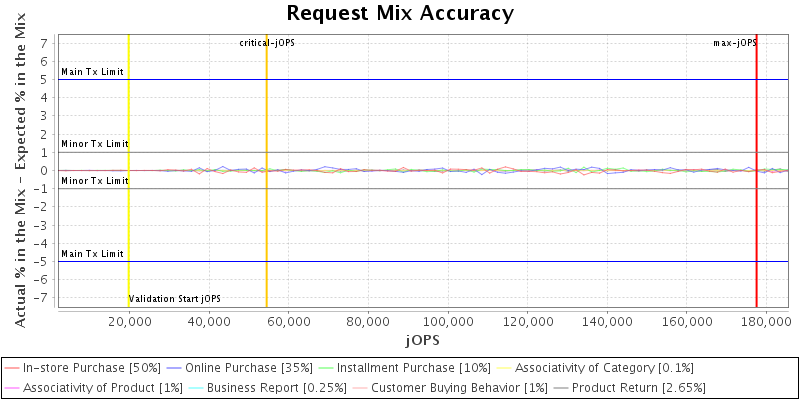

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

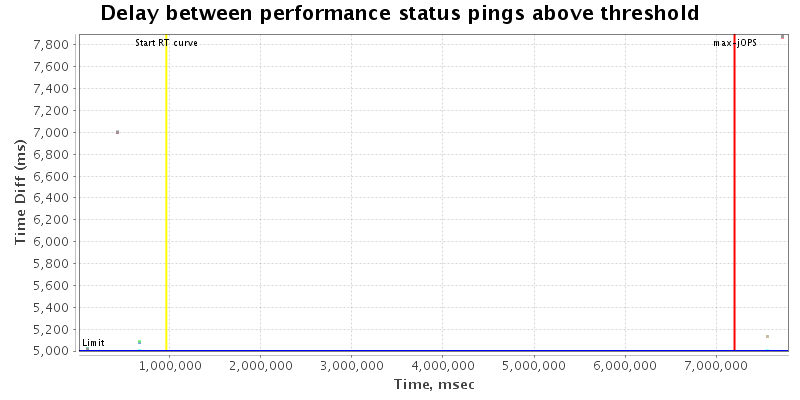

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 120
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 1 {Tier1=250, Tier2=1, Tier3=36}
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 200000
specjbb.mapreducer.pool.size 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 197290 IR
High-bound (settled) is 190974 IR
Copyright © 2015-2017 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]
