Huawei FusionServer CH121 V5 161425 SPECjbb2015-MultiJVM max-jOPS
109777 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Test Sponsor: Huawei Test location: Shenzhen Test date: Jun 10, 2017
SPEC license #: 3175 Hardware Availability: July-2017 Software Availability: Oct-2016 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

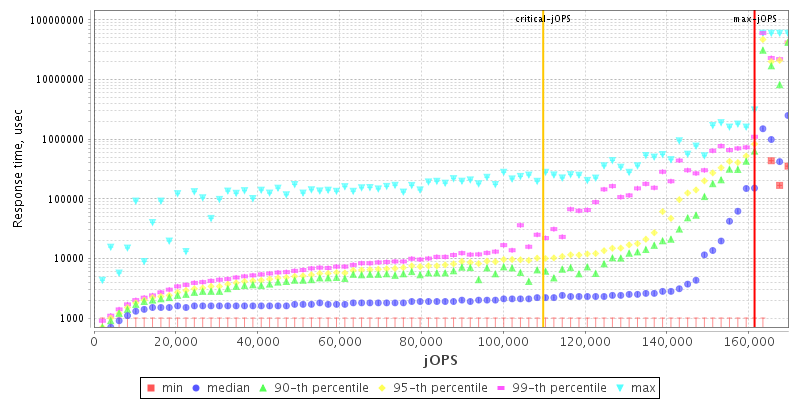

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCH121 V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableJuly-2017
ModelCH121 V5
Form FactorHalf-width Compute Node
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 37.8 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System2
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache16 KB I + 16 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache37.8 MB I+D per chip
Other CacheNone
Disk2 x 600GB 1000RPM SAS
File SystemEXT4
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details192 GB (12 x 16 GB 2Rx8 PC4-2666V-R)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureE9000 Converged Infrastructure Blade Server Chassis
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise 12 SP2
VendorSUSE
Vendor URLhttp://www.suse.com
Version4.4.21-69-default
AvailableOct-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Power Policy was set to Performance
  • SNC disabled
  • IMC 2-way interleave
  • Memory Patrol Scrub was set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • tuned-adm acive profile was latency-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms350g -Xmx350g -Xmn320g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCTimeStamps
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 159381 161425 163468 165511 167555
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 82755 111022 115449 121579 123622 109777
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2043 / 4087 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
1000us 112384 / 114428 6130 / 8173 4087 / 6130 4087 / 6130 2043 / 4087 - / 2043
5000us 157338 / 159381 147121 / 149165 112384 / 63344 49040 / 51084 36780 / 38824 2043 / 4087
10000us 157338 / 159381 147121 / 149165 124644 / 126688 110341 / 108298 81734 / 83777 12260 / 4087
25000us 161425 / - 153251 / 155295 140991 / 143034 134861 / 136904 114428 / 104211 22477 / 10217
50000us 161425 / - 155295 / 157338 145078 / 147121 140991 / 138948 114428 / 116471 28607 / 10217
75000us 161425 / - 157338 / 159381 147121 / 149165 140991 / 143034 120558 / 122601 28607 / 10217
100000us 161425 / - 157338 / 159381 147121 / 149165 143034 / 145078 122601 / 124644 30650 / 20433
200000us 161425 / - 161425 / - 151208 / 153251 149165 / 151208 140991 / 138948 108298 / 87864
500000us 161425 / - 161425 / - 159381 / 161425 157338 / 159381 149165 / 151208 140991 / 134861
1000000us 161425 / - 161425 / - 161425 / - 161425 / - 159381 / 161425 149165 / 151208

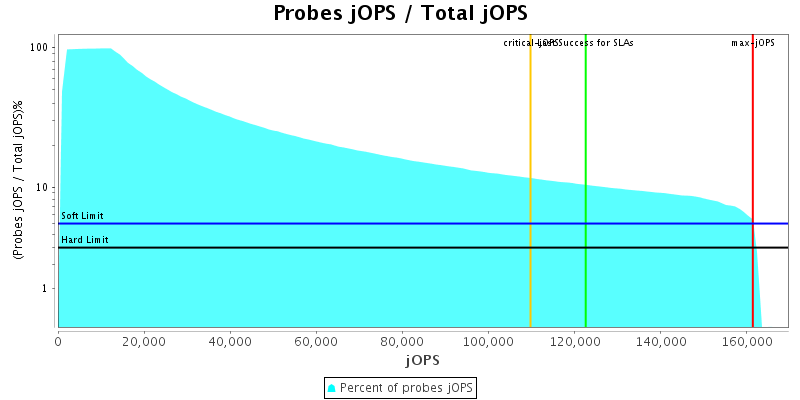

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

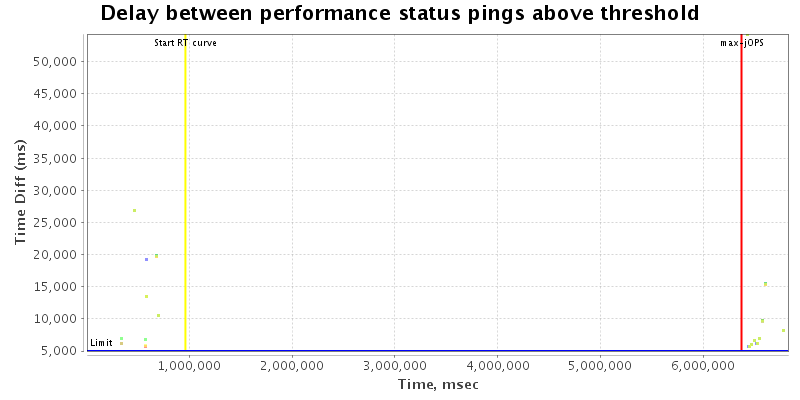

Delay between status pings

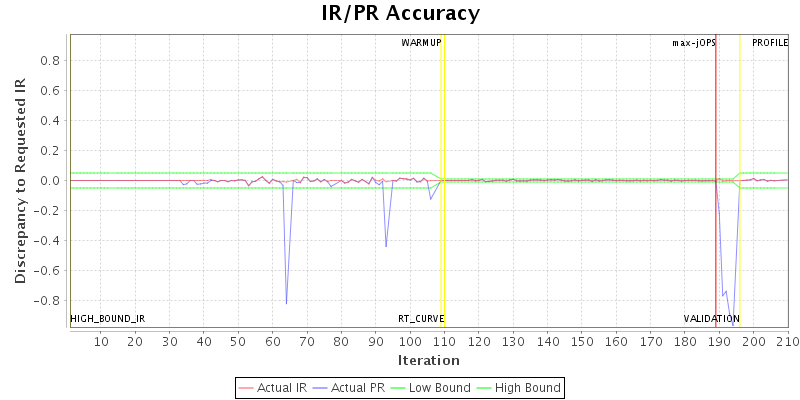

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.forkjoin.workers 112 {Tier1=300, Tier2=70, Tier3=30}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 204335 IR
High-bound (settled) is 170553 IR
