SPECjbb2015 Report for jbb2015-20170622-00201 : 159381 max-jOPS ; 109402 critical-jOPS

Hardware hw_1
Name	2288H V5
Vendor	Huawei Technologies Co., Ltd
Vendor URL	http://www.huawei.com/
Available	July-2017
Model	2288H V5
Form Factor	2U
CPU Name	Intel Xeon Platinum 8180
CPU Characteristics	28 Core, 2.50 GHz, 37.8 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	2
Threads Per Core	2
Version	None
CPU Frequency (MHz)	2500
Primary Cache	16 KB I + 16 KB D per core
Secondary Cache	1024 KB I+D per core
Tertiary Cache	37.8 MB I+D per chip
Other Cache	None
Disk	1 x 600GB 1000RPM SAS
File System	EXT4
Memory Amount (GB)	768
# and size of DIMM(s)	24 x 32GB
Memory Details	192 GB (12 x 16 GB 2Rx8 PC4-2666V-R)
# and type of Network Interface Cards (NICs)	4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 550W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise 12 SP2
Vendor	SUSE
Vendor URL	http://www.suse.com
Version	4.4.21-69-default
Available	Oct-2016
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 1.8.0_131
Available	Apr-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS tuning Power Policy was set to Performance SNC disabled IMC 2-way interleave Memory Patrol Scrub was set to Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/swappiness tuned-adm acive profile was latency-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms350g -Xmx350g -Xmn320g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCTimeStamps
Tuning	numactl was used to affinitize each Backend JVM to a single numa node, eg: numactl --cpunodebind=$node --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-showversion -Xmn1536m -Xms2g -Xmx2g
Tuning	numactl was used to affinitize each TxInjector JVM to a single numa node, eg: numactl --cpunodebind=$node --localalloc
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	157338	159381	161425	163468	165511

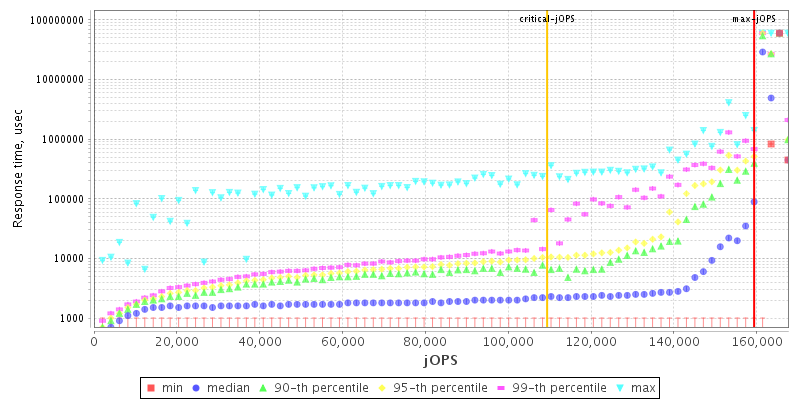

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	82755	109319	113065	119973	127709	109402

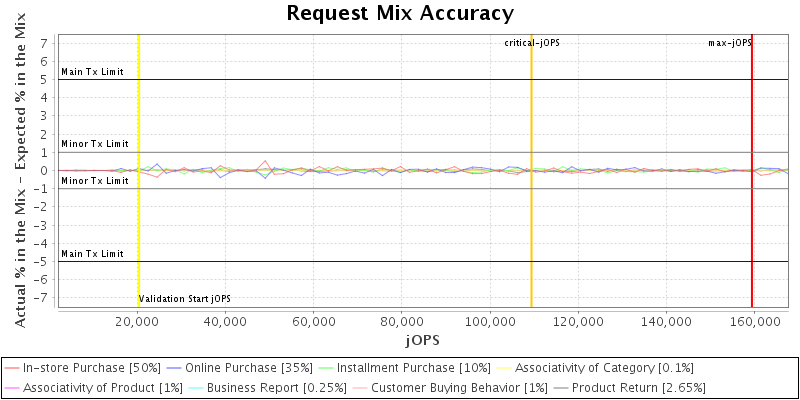

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.timeouts.connect	60000	650000
specjbb.comm.connect.timeouts.read	60000	650000
specjbb.comm.connect.timeouts.write	60000	650000
specjbb.comm.connect.worker.pool.max	256	320
specjbb.forkjoin.workers	112	{Tier1=330, Tier2=70, Tier3=28}
specjbb.group.count	1	2
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

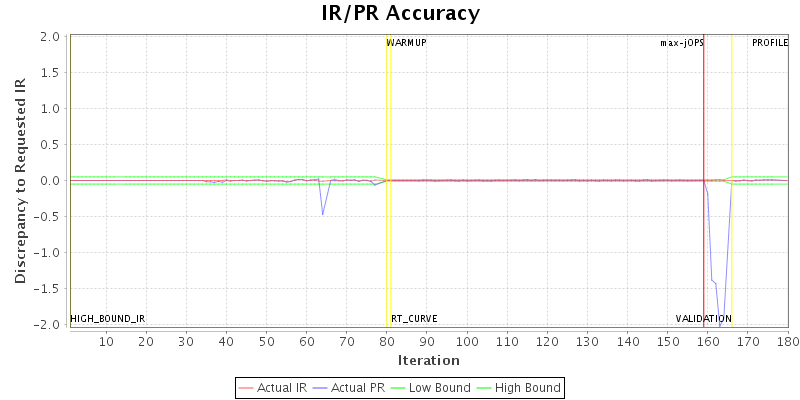

High-bound (max attempted) is 204335 IR

High-bound (settled) is 170313 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Huawei FusionServer 2288H V5	159381 SPECjbb2015-MultiJVM max-jOPS 109402 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei	Test Sponsor: Huawei	Test location: Shenzhen	Test date: Jun 11, 2017
SPEC license #: 3175	Hardware Availability: July-2017	Software Availability: Oct-2016	Publication: Tue Jul 11 13:21:27 EDT 2017


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 2) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
