SPECjbb2015 Report for jbb2015-20170524-00158 : 122829 max-jOPS ; 39635 critical-jOPS

Hardware hw_1
Name	Inspur NF5280M4
Vendor	Inspur Corporation
Vendor URL	http://www.inspur.com/
Available	Nov-2016
Model	Inspur NF5280M4
Form Factor	2U
CPU Name	Intel Xeon E5-2699A v4
CPU Characteristics	22-Core, 2.40GHz,55MB L3 Cache(Turbo Boost Technology up to 3.60 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	44
Cores Per Chip	22
Threads Per System	88
Threads Per Core	2
Version	None
CPU Frequency (MHz)	2400
Primary Cache	32 KB(I)+32 KB(D)on chip per core
Secondary Cache	256 KB (I+D) per core
Tertiary Cache	55MB (I+D) on chip per chip
Other Cache	None
Disk	1x 200GB SSD
File System	xfs
Memory Amount (GB)	256
# and size of DIMM(s)	16 x 16GB
Memory Details	16 GB 2Rx8 PC4-2400T-R
# and type of Network Interface Cards (NICs)	1 x 1 Gbit NIC
Power Supply Quantity and Rating (W)	1 x 550W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	Red Hat Enterprise Linux Server release 7.3
Available	Nov-2016
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u131
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 1.8.0_131
Available	Apr-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Energy Performance set to Performance Processor C0/C1 state set to enabled Processor C1E set to disabled COD enabled Early Snoop disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance SELinux disabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$node --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=$node --localalloc
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	121494	122829	124164	125499	126834

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	30262	31374	39608	45838	56741	39635

Note

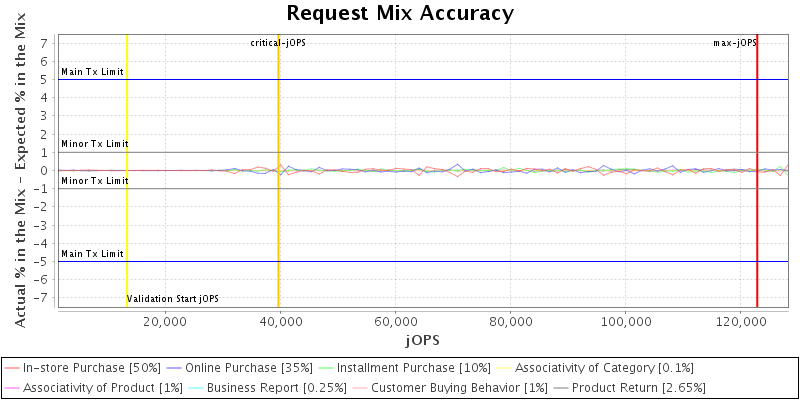

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	4
specjbb.forkjoin.workers	88	{Tier1=128, Tier2=63, Tier3=27}
specjbb.group.count	1	4
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 133510 IR

High-bound (settled) is 127150 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Inspur Corporation Inspur NF5280M4	122829 SPECjbb2015-MultiJVM max-jOPS 39635 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation	Test Sponsor: Inspur Corporation	Test location: Jinan, PRC	Test date: May 18, 2017
SPEC license #: 3358	Hardware Availability: Nov-2016	Software Availability: Apr-2017	Publication: Jun 09, 2017

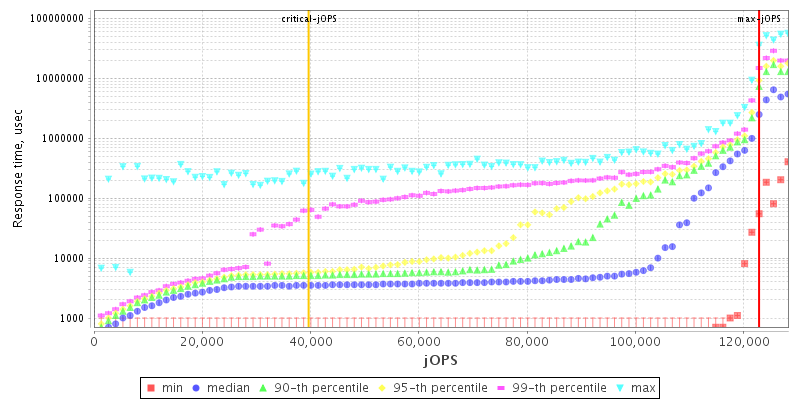

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
