Inspur Corporation Inspur TS860G3 411801 SPECjbb2015-MultiJVM max-jOPS
105081 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, PRC Test date: Apr 16, 2017
SPEC license #: 3358 Hardware Availability: Jun-2016 Software Availability: Jan-2017 Publication: May 19, 2017
Benchmark Results Summary

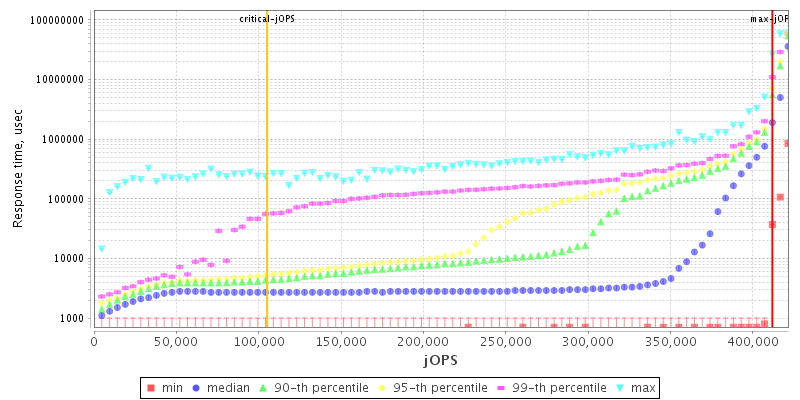

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores192
Total Threads384
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur TS860G3
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableJun-2016
ModelInspur TS860G3
Form Factor8U
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24-Core, 2.20GHz, 60MB L3 Cache(Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System192
Cores Per Chip24
Threads Per System384
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk4 x 600GB SAS, RAID 0
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)64 x 16GB
Memory Details1024 GB (64 x 16 GB 2Rx4 PC4-2133P-R), running at 1600MHz
# and type of Network Interface Cards (NICs)1 x 1 Gbit NIC
Power Supply Quantity and Rating (W)4 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.3
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u121
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_121
AvailableJan-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • SELinux disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=24 -XX:MaxTenuringThreshold=15 -XX:+PrintGCDetails
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 402335 407068 411801 416535 421268
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 78100 78100 101767 130167 158567 105081
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
1000us 9467 / 14200 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
5000us 383401 / 388135 350268 / 355001 127800 / 132534 99400 / 104134 47333 / 42600 - / 4733
10000us 388135 / 392868 359735 / 364468 250868 / 255601 203534 / 208267 80467 / 75734 - / 4733
25000us 388135 / 392868 369201 / 373935 298201 / 302934 236667 / 241401 80467 / 75734 4733 / 9467
50000us 392868 / 397601 373935 / 378668 307668 / 312401 255601 / 260334 99400 / 104134 4733 / 9467
75000us 392868 / 397601 378668 / 383401 317134 / 321868 274534 / 279268 127800 / 132534 4733 / 9467
100000us 397601 / 402335 378668 / 383401 317134 / 321868 288734 / 293468 156201 / 160934 4733 / 9467
200000us 402335 / 407068 388135 / 392868 350268 / 355001 331334 / 336068 307668 / 312401 151467 / 23667
500000us 407068 / 411801 402335 / 407068 388135 / 392868 383401 / 388135 373935 / 378668 298201 / 288734
1000000us 411801 / - 407068 / 411801 402335 / 407068 402335 / 407068 392868 / 397601 373935 / 355001
Probes jOPS / Total jOPS

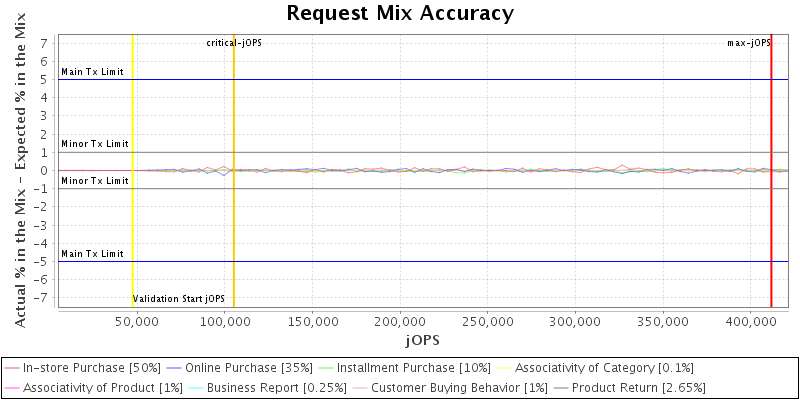

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

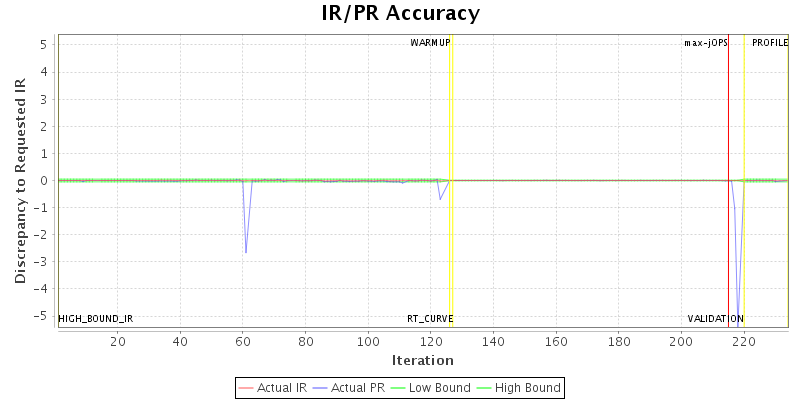

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 384 {Tier1=256, Tier2=70, Tier3=32}
specjbb.group.count 1 8
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 473335 IR
High-bound (settled) is 438744 IR
