SPECjbb2015 Report for jbb2015-20161202-00133 : 77234 max-jOPS ; 26235 critical-jOPS

Hardware hw_1
Name	Sugon TC6600
Vendor	Sugon
Vendor URL	http://www.sugon.com
Available	Apr-2015
Model	Sugon TC6600/CB50-G20
Form Factor	10U Blade
CPU Name	Intel Xeon E5-2680 v4
CPU Characteristics	14-Core, 2.40GHz, 35MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	28
Cores Per Chip	14
Threads Per System	56
Threads Per Core	2
Version	V2.04
CPU Frequency (MHz)	2400
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	256 KB (I+D) per core
Tertiary Cache	35MB (I+D) on chip per chip
Other Cache	None
Disk	2x 300GB SAS RAID0
File System	ext4
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32768MB
Memory Details	2Rx8 PC4-2400T;All DIMMs populated
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NICs with 8 ports;2 x 1 Gbit NICs with 6 ports
Power Supply Quantity and Rating (W)	6 x 550W
Other Hardware	4x 8Gb/16Gb FC ports
Cabinet/Housing/Enclosure	TC6600
Shared Description	Shared with the other 13 blades in one TC6600 Chasis
Shared Comment	This blade is electrically equal to TC4600E/CX50-G20
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	N/A
Version	N/A
Available	N/A
Bitness	N/A
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.2 (Maipo)
Vendor	Redhat
Vendor URL	http://www.redhat.com/
Version	7.2 (Maipo)
Available	Oct-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u112
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 1.8.0_112
Available	Oct-2016
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	N/A
Version	N/A
Available	N/A
Bitness	N/A
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Set BIOS options as Default Settings.
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	echo '16000000' > /proc/sys/kernel/sched_latency_ns echo '6000000' >/proc/sys/kernel/sched_min_granularity_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning	numactl --cpunodebind=1 --membind=1
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseTransparentHugePages -XX:+UseParallelOldGC -XX:SurvivorRatio=31 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=14 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning	numactl --cpunodebind=$(($gnum-1)) --membind=$(($gnum-1))
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning	numactl --cpunodebind=$(($gnum-1)) --localalloc
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	76281	77234	78188	79141	80095

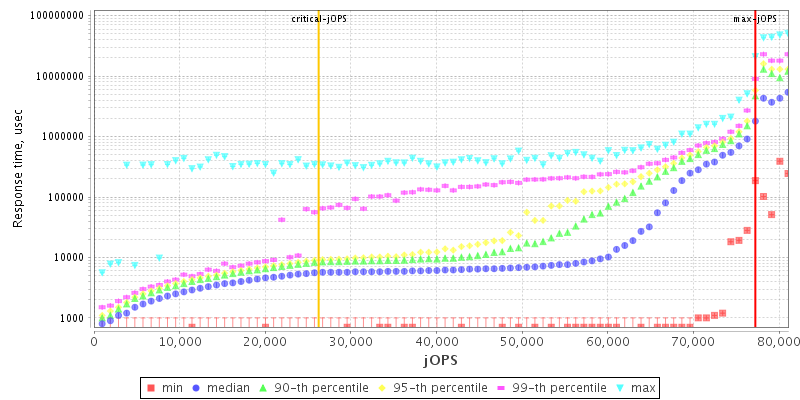

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	21454	23202	24314	30989	33134	26235

Note

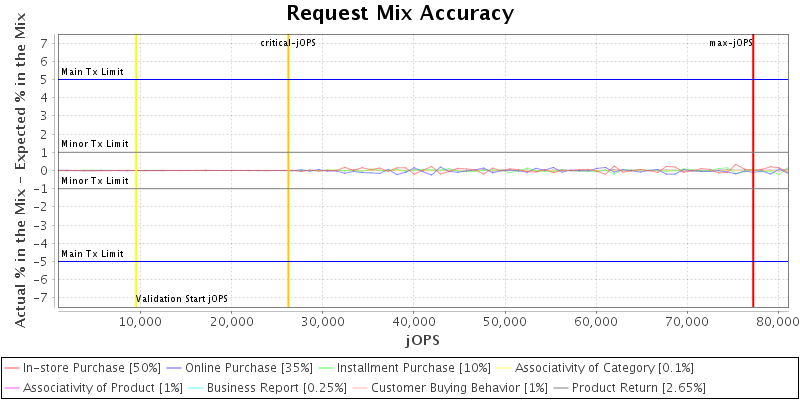

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	192
specjbb.comm.connect.worker.pool.min	1	32
specjbb.forkjoin.workers	56	{=56, Tier1=112, Tier2=86, Tier3=58}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	56	185
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

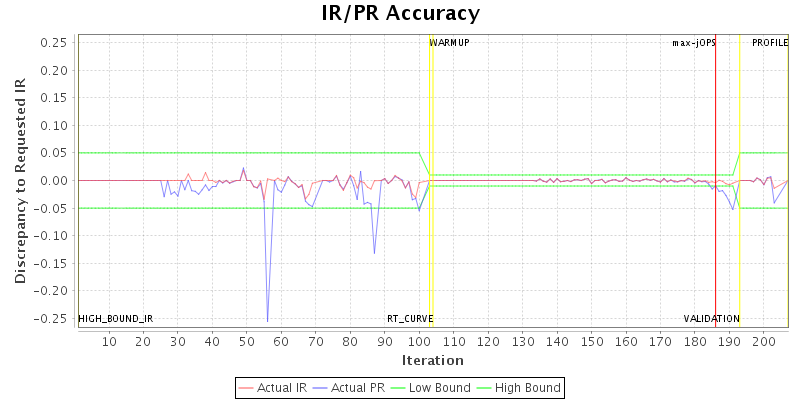

High-bound (max attempted) is 95351 IR

High-bound (settled) is 80217 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Sugon TC6600/CB50-G20	77234 SPECjbb2015-MultiJVM max-jOPS 26235 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Sugon	Test Sponsor: Sugon	Test location: Beijing, CN	Test date: Dec 2, 2016
SPEC license #: 9046	Hardware Availability: Apr-2015	Software Availability: Oct-2016	Publication: Dec 21, 2016


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
