SPECjbb2015 Report for jbb2015-20161025-00129 : 219406 max-jOPS ; 72541 critical-jOPS

SUT Description

Hardware hw_1
Name	Synergy 680 Gen9
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Jan-2017
Model	Synergy 680 Gen9
Form Factor	Full-height double-wide Compute Module
CPU Name	Intel Xeon E7-8890 v4
CPU Characteristics	24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	96
Cores Per Chip	24
Threads Per System	192
Threads Per Core	2
Version	I40 07/20/2016
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	256 KB I+D on chip per core
Tertiary Cache	60 MB I+D on chip per chip
Other Cache	None
Disk	1 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	512
# and size of DIMM(s)	32 x 16 GB
Memory Details	16 GB 2Rx4 PC4-2400T-R, running at 1600MHz
# and type of Network Interface Cards (NICs)	Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)	6 x 2650
Other Hardware	None
Cabinet/Housing/Enclosure	Synergy 12000 Frame
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	3.12.49-11-default
Available	Dec-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u102
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_102
Available	Jul-2016
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL180 Gen9
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Mar-2016
Model	ProLiant DL180 Gen9
Form Factor	2U Rack
CPU Name	Intel Xeon E5-2695 v4
CPU Characteristics	18 Core, 2.1 GHz, 45 MB L3 Cache (Turbo Boost Technology up to 3.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	36
Cores Per Chip	18
Threads Per System	72
Threads Per Core	2
Version	U20 06/24/2016
CPU Frequency (MHz)	2100
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	256 KB I+D on chip per core
Tertiary Cache	45 MB I+D on chip per chip
Other Cache	None
Disk	1 x 1 TB SATA 7200 RPM
File System	XFS
Memory Amount (GB)	256
# and size of DIMM(s)	8 x 32 GB
Memory Details	32 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)	HP Ethernet 1 Gb 2-Port
Power Supply Quantity and Rating (W)	2 x 900
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 12 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	3.12.49-11-default
Available	Dec-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 8u102
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_102
Available	Jul-2016
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Hyper Threading=Enabled QPI Snoop Configuration=Cluster on Die Power Profile=Maximum Performance Thermal Configuration=Maximum Cooling Collaborative Power Control=Disabled Processor Power and Utilization Monitoring=Disabled Memory PreFailure Notification=Disabled Memory Patrol Scrub=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(8)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns echo 100 > /proc/sys/vm/vfs_cache_pressure echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 2 > /proc/sys/vm/overcommit_memory echo 80 > /proc/sys/vm/overcommit_ratio echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=24 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to physical cores in a NUMA node. numactl --physcpubind=0-11,96-107 --membind=0 numactl --physcpubind=12-23,108-119 --membind=1 numactl --physcpubind=24-35,120-131 --membind=2 numactl --physcpubind=36-47,132-143 --membind=3 numactl --physcpubind=48-59,144-155 --membind=4 numactl --physcpubind=60-71,156-167 --membind=5 numactl --physcpubind=72-83,168-179 --membind=6 numactl --physcpubind=84-95,180-191 --membind=7

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	Hyper Threading=Enabled QPI Snoop Configuration=Cluster on Die Power Profile=Maximum Performance Thermal Configuration=Maximum Cooling Collaborative Power Control=Disabled Processor Power and Utilization Monitoring=Disabled Memory Refresh Rate=1x Refresh
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description	os_2
Tuning	tuned-adm profile=throughput-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=18 -XX:-UsePerfData -XX:+UseParallelOldGC
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=18 -XX:-UsePerfData -XX:+UseParallelOldGC
Tuning	None
Notes	None

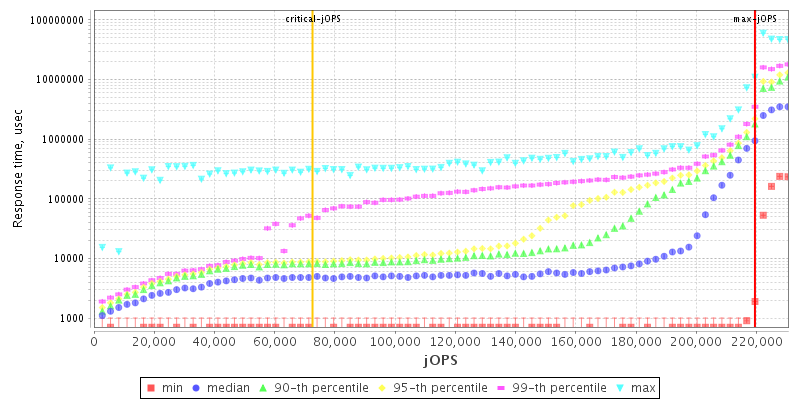

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	216664	219406	222149	224892	227634

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	50737	59422	72678	89134	102846	72541

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2743	- / 2743	- / 2743	- / 2743	- / 2743	- / 2743
1000us	8228 / 10970	- / 2743	- / 2743	- / 2743	- / 2743	- / 2743
5000us	200208 / 202951	145357 / 93248	30168 / 32911	27426 / 30168	21941 / 24683	- / 2743
10000us	205693 / 208436	186495 / 189238	117931 / 120674	95990 / 98733	49366 / 52109	- / 2743
25000us	208436 / 211179	200208 / 202951	170040 / 172783	145357 / 148099	63079 / 57594	8228 / 5485
50000us	208436 / 211179	200208 / 202951	178268 / 181010	153584 / 156327	74050 / 71307	8228 / 5485
75000us	211179 / 213921	202951 / 205693	181010 / 183753	156327 / 159070	87763 / 90505	8228 / 5485
100000us	211179 / 213921	202951 / 205693	183753 / 186495	164555 / 167297	101475 / 104218	8228 / 5485
200000us	213921 / 216664	208436 / 211179	197466 / 200208	189238 / 191981	161812 / 164555	8228 / 5485
500000us	216664 / 219406	213921 / 216664	208436 / 211179	208436 / 211179	200208 / 202951	175525 / 156327
1000000us	219406 / -	219406 / -	213921 / 216664	213921 / 216664	211179 / 213921	200208 / 202951

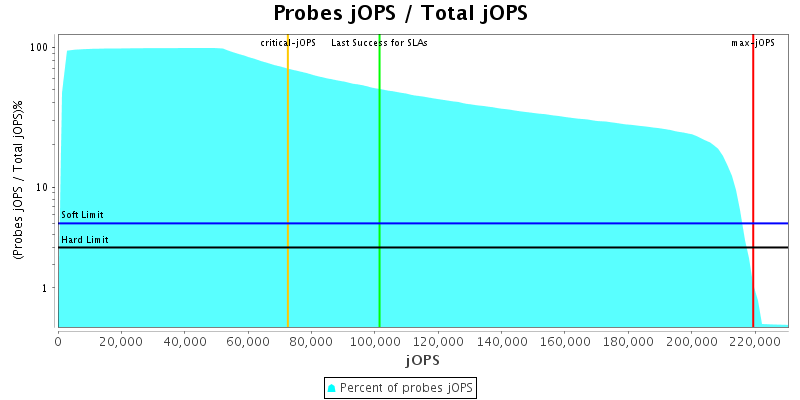

Number of probes

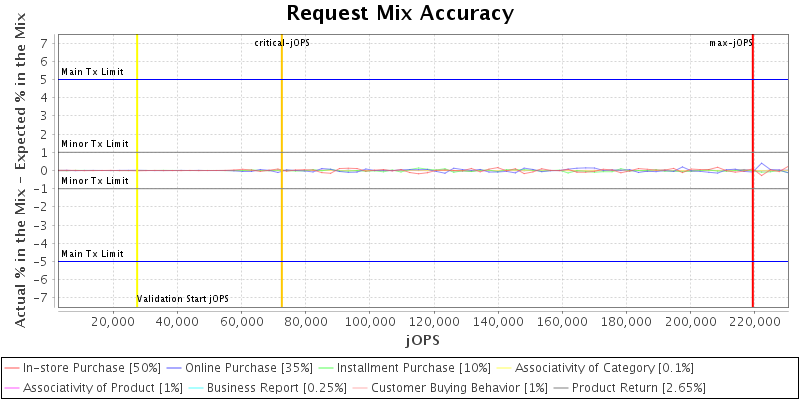

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

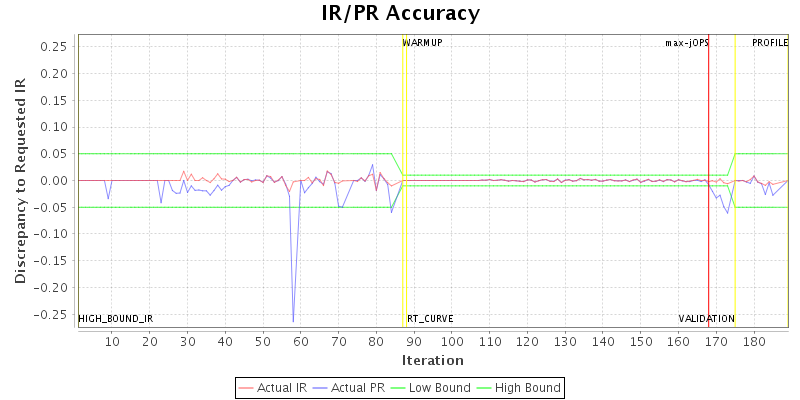

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group2.Backend.beJVM	Group3.Backend.beJVM	Group4.Backend.beJVM	Group5.Backend.beJVM	Group6.Backend.beJVM	Group7.Backend.beJVM	Group8.Backend.beJVM
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	700000
specjbb.comm.connect.timeouts.read	60000	700000
specjbb.comm.connect.timeouts.write	60000	700000
specjbb.comm.connect.worker.pool.max	256	120
specjbb.controller.host	localhost	10.10.0.46
specjbb.controller.maxir.maxFailedPoints	3	3
specjbb.forkjoin.workers	72	{Tier1=135, Tier2=67, Tier3=25}
specjbb.group.count	1	8
specjbb.heartbeat.threshold	100000	200000
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 274258 IR

High-bound (settled) is 228682 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Hewlett Packard Enterprise Synergy 680 Gen9	219406 SPECjbb2015-Distributed max-jOPS 72541 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: August 03, 2016
SPEC license #: 3	Hardware Availability: Jan-2017	Software Availability: Jul-2016	Publication: Nov 09, 2016
