Hewlett Packard Enterprise Integrity Superdome X 359735 SPECjbb2015-MultiJVM max-jOPS
237725 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, CO Test date: August 24, 2016
SPEC license #: 3 Hardware Availability: Jun-2016 Software Availability: Jul-2016 Publication: Sep 14, 2016
Benchmark Results Summary

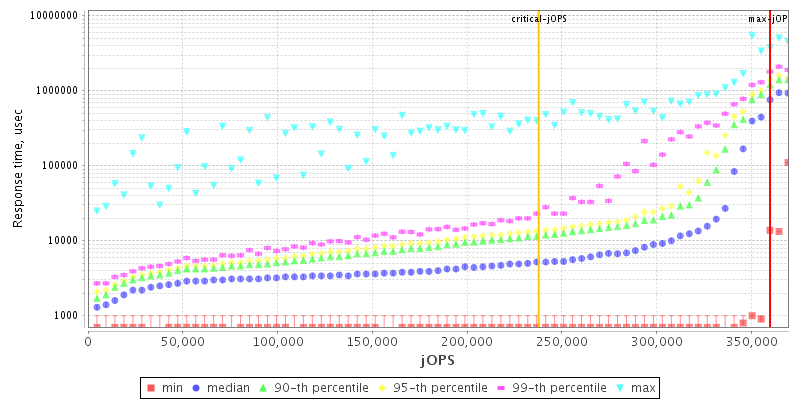

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips8
Total Cores192
Total Threads384
Total Memory Amount (GB)4096
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameIntegrity Superdome X
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJun-2016
ModelIntegrity Superdome X
Form Factor42U
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System192
Cores Per Chip24
Threads Per System384
Threads Per Core2
Version06/10/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk8 x C8S59A, 900 GB 10 K RPM SAS
File SystemXFS
Memory Amount (GB)4096
# and size of DIMM(s)128 x 32 GB
Memory Details32 GB 2Rx4 PC4-2400T-LD1, running at 1600MHz
# and type of Network Interface Cards (NICs)8 x HPE FlexFabric 20Gb 2-port 650FLB Adapter
Power Supply Quantity and Rating (W)12 x 2400
Other Hardware4 x HPE QMH2672 16Gb FC HBA for BladeSystem c-Class
Cabinet/Housing/EnclosureHPE BladeSystem Superdome Enclosure
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameBrocade 16Gb/16c SAN Switch
VendorBrocade
Vendor URLhttp://www.brocade.com/
VersionNone
AvailableNone
BitnessNone
NotesNone
Other Hardware network_1
NameHPE 6125XLG Blade Switch
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
VersionNone
AvailableDec-2015
BitnessNone
NotesNone
Other Hardware storage_1
NameHPE MSA 2040 SAN
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.53-60.30-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning Memory RAS Configuration set to Maximum Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms492g -Xmx492g -Xmn470g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=48 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps

Tuning None
Notes

Used numactl to affinitize each Backend JVM to a NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 350268 355001 359735 364468 369201
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 139633 247712 272167 281634 286367 237725
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
1000us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
5000us 326601 / 331334 231934 / 236667 94667 / 99400 71000 / 75734 42600 / 47333 - / 4733
10000us 336068 / 340801 307668 / 312401 208267 / 213001 184601 / 189334 137267 / 142000 - / 4733
25000us 340801 / 345535 331334 / 336068 307668 / 312401 298201 / 302934 250868 / 241401 4733 / 9467
50000us 345535 / 350268 336068 / 340801 321868 / 326601 317134 / 312401 274534 / 269801 56800 / 14200
75000us 345535 / 350268 336068 / 340801 326601 / 331334 321868 / 326601 279268 / 284001 113600 / 23667
100000us 345535 / 350268 340801 / 345535 331334 / 336068 321868 / 326601 288734 / 284001 137267 / 23667
200000us 355001 / 359735 345535 / 350268 336068 / 340801 331334 / 336068 302934 / 293468 160934 / 28400
500000us 359735 / - 355001 / 359735 345535 / 350268 340801 / 345535 336068 / 340801 302934 / 250868
1000000us 359735 / - 359735 / - 355001 / 359735 355001 / 359735 345535 / 350268 331334 / 336068

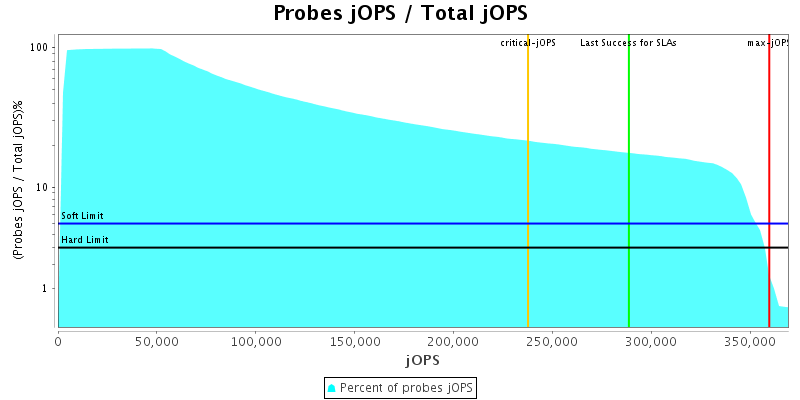

Probes jOPS / Total jOPS

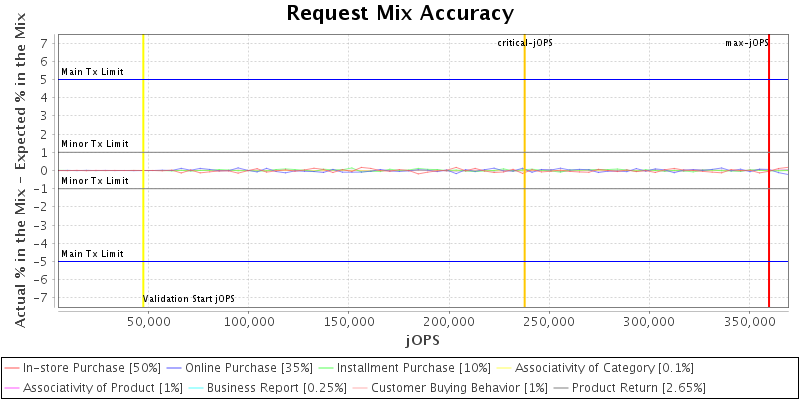

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

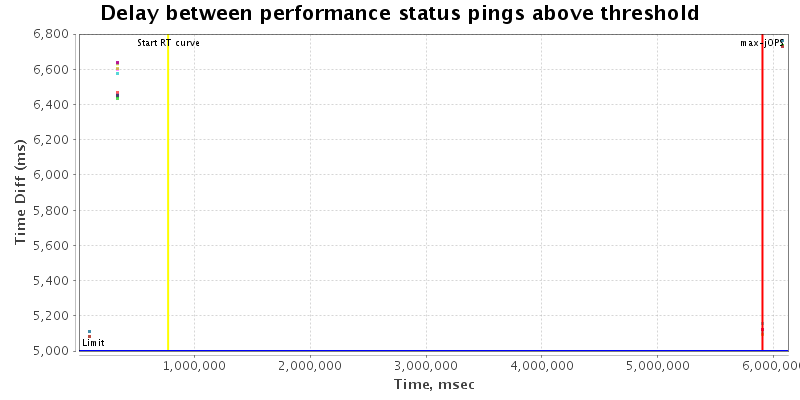

Delay between status pings

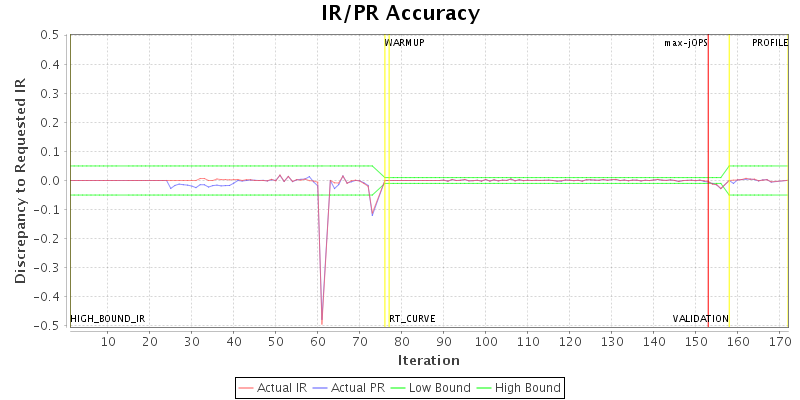

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 384 {Tier1=252, Tier2=68, Tier3=29}
specjbb.group.count 1 8
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 473335 IR
High-bound (settled) is 394579 IR
