SPECjbb2015
Copyright © 2015-2016 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise Integrity Superdome X 700536 SPECjbb2015-MultiJVM max-jOPS
439937 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, CO Test date: August 23, 2016
SPEC license #: 3 Hardware Availability: Jun-2016 Software Availability: Jul-2016 Publication: Sep 14, 2016
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 16)

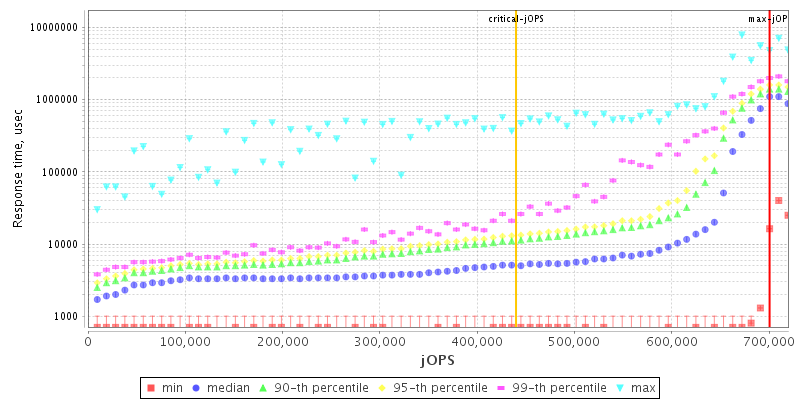

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips16
Total Cores384
Total Threads768
Total Memory Amount (GB)8192
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameIntegrity Superdome X
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJun-2016
ModelIntegrity Superdome X
Form Factor42U
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System16
Cores Per System384
Cores Per Chip24
Threads Per System768
Threads Per Core2
Version06/10/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk8 x C8S59A, 900 GB 10 K RPM SAS
File SystemXFS
Memory Amount (GB)8192
# and size of DIMM(s)256 x 32 GB
Memory Details32 GB 2Rx4 PC4-2400T-LD1, running at 1600MHz
# and type of Network Interface Cards (NICs)8 x HPE FlexFabric 20Gb 2-port 650FLB Adapter
Power Supply Quantity and Rating (W)12 x 2400
Other Hardware4 x HPE QMH2672 16Gb FC HBA for BladeSystem c-Class
Cabinet/Housing/EnclosureHPE BladeSystem Superdome Enclosure
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameBrocade 16Gb/16c SAN Switch
VendorBrocade
Vendor URLhttp://www.brocade.com/
VersionNone
AvailableNone
BitnessNone
NotesNone
Other Hardware network_1
NameHPE 6125XLG Blade Switch
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
VersionNone
AvailableDec-2015
BitnessNone
NotesNone
Other Hardware storage_1
NameHPE MSA 2040 SAN
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.53-60.30-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning Memory RAS Configuration set to Maximum Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • pmqos-static.py cpu_dma_latency=133
  • ulimit -n 65536
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms492g -Xmx492g -Xmn470g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=48 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes

Used numactl to affinitize each Backend JVM to a NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=12 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=14 --localalloc
  • numactl --cpunodebind=15 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 681602 691069 700536 710002 719469
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 250867 430734 523824 534868 544335 439937
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 9467 - / 9467 - / 9467 - / 9467 - / 9467 - / 9467
1000us - / 9467 - / 9467 - / 9467 - / 9467 - / 9467 - / 9467
5000us 643736 / 653202 444935 / 426001 151467 / 160934 85200 / 94667 37867 / 47333 - / 9467
10000us 653202 / 662669 596402 / 605869 397601 / 407068 359735 / 369201 255601 / 246134 - / 9467
25000us 653202 / 662669 643736 / 653202 596402 / 605869 577469 / 586935 435468 / 426001 - / 9467
50000us 662669 / 672136 643736 / 653202 624802 / 634269 605869 / 615335 530135 / 511202 75734 / 18933
75000us 662669 / 672136 653202 / 662669 634269 / 643736 615335 / 624802 530135 / 539602 132534 / 47333
100000us 672136 / 681602 653202 / 662669 634269 / 643736 615335 / 624802 539602 / 549069 321868 / 47333
200000us 672136 / 681602 662669 / 672136 643736 / 653202 643736 / 653202 605869 / 596402 321868 / 56800
500000us 691069 / 700536 672136 / 681602 653202 / 662669 653202 / 662669 643736 / 653202 586935 / 265068
1000000us 700536 / - 691069 / 700536 681602 / 691069 672136 / 681602 653202 / 662669 634269 / 643736

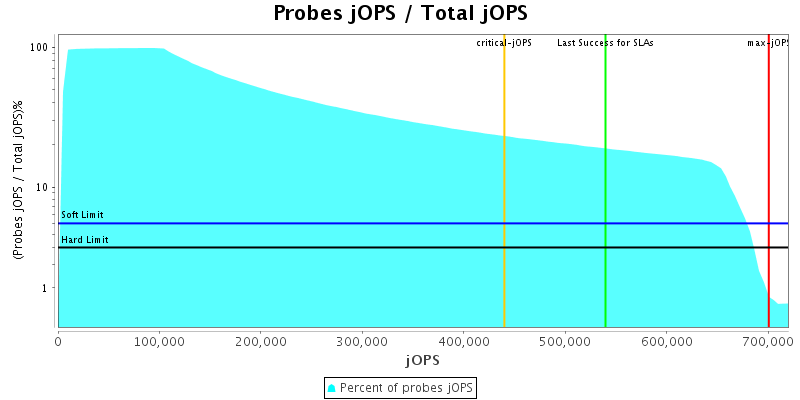

Number of probes
Probes jOPS / Total jOPS

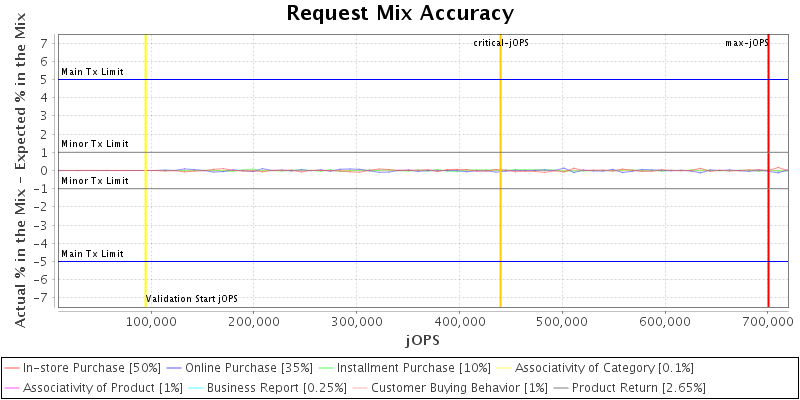

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

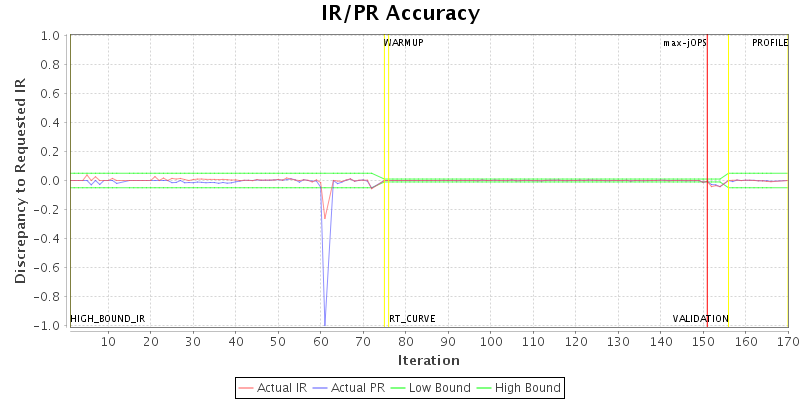

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 768 {Tier1=252, Tier2=68, Tier3=29}
specjbb.group.count 1 16
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 946670 IR
High-bound (settled) is 789159 IR
