Oracle Corporation SPARC S7-2 66612 SPECjbb2015-Distributed max-jOPS
36922 SPECjbb2015-Distributed critical-jOPS
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Hillsboro, OR Test date: Jun 2, 2016
SPEC license #: 73 Hardware Availability: Jun-2016 Software Availability: Jun-2016 Publication: Jul 20, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSPARC S7-2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableJun-2016
ModelSPARC S7-2
Form Factor1RU rackmount server
CPU NameSPARC S7
CPU Characteristics4267 MHz SPARC S7
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System128
Threads Per Core8
VersionNone
CPU Frequency (MHz)4267
Primary Cache16 KB I + 16 KB D on chip per core
Secondary Cache512 KB I on chip per chip (256 KB / 4 cores); 1 MB D on chip per chip (256 KB / 2 cores)
Tertiary Cache16 MB (I+D) on chip per chip (8 MB / 4 cores)
Other CacheNone
Disk1 x 600 GB 10K RPM SAS3 disk, 1 x 1200 GB 10K RPM SAS3 disk
File SystemZFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details16 x 64 GB 4RX4 PC4-2400 LR-DIMM; each slot populated
# and type of Network Interface Cards (NICs)4 x 10Gbit onboard
Power Supply Quantity and Rating (W)2 x 1200W redundant power supplies
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
Namenone
Vendornone
Vendor URLnone
Versionnone
Availablenone
Bitnessnone
Notesnone
Operating System os_1
NameOracle Solaris 11.3
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.3.9.2.0
AvailableJun-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
Namenone
Vendornone
Vendor URLnone
Versionnone
Availablenone
Bitnessnone
Notesnone
Hardware hw_2
NameSun Server X4-2L
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableSep-2013
ModelSun Server X4-2L
Form Factor1RU rackmount server
CPU NameIntel Xeon E5-2697 v2
CPU CharacteristicsIntel Turbo Boost Technology up to 3.50 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache30 MB I+D on chip per chip
Other CacheNone
Disk1 x 600 10K RPM SAS2 disk
File SystemZFS
Memory Amount (GB)128
# and size of DIMM(s)16 x 8 GB
Memory Details16 x 8 GB 2Rx4 PC3L-12800R ECC CL11; all slots populated
# and type of Network Interface Cards (NICs)10Gbit onboard
Power Supply Quantity and Rating (W)2 x 600W AC power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesThe Sun Server X4-2L is no longer orderable, but is still supported by Oracle.
Other Hardware network_2
Namenone
Vendornone
Vendor URLnone
Versionnone
Availablenone
Bitnessnone
Notesnone
Operating System os_2
NameOracle Solaris 11.3
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.3.8.2.0
AvailableApr-2016
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 8u92
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_2
Namenone
Vendornone
Vendor URLnone
Versionnone
Availablenone
Bitnessnone
Notesnone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning All driver hardware power management was disabled on the system controller.
Notes none
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning Chip 1's virtual CPUs were left in the default processor set, and group 1's backend was run there. An explicit processor set was created with all of chip 2's virtual CPUs assigned to it, and group 2's backend was run in that processor set. All software power management was disabled.
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line [ psrset -e 1 ] priocntl -e -c FX -m 60 -p 60 java -Xmx192g -Xms192g -Xmn181g -XX:+UseParallelOldGC -XX:ParallelGCThreads=108 -XX:+UseLargePages -XX:LargePageSizeInBytes=2g -XX:+AlwaysPreTouch
Tuning Each backend was run with critical threads priority in its own processor set.
Notes libumem was used via the LD_PRELOAD=libumem.so environment variable assigment.
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning All driver hardware power management was disabled on the system controller.
Notes none
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning All software power management was disabled.
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning The controller JVM was run with critical threads priority.
Notes libumem was used via the LD_PRELOAD=libumem.so environment variable assigment.
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning Each transaction injector was run with critical threads priority.
Notes libumem was used via the LD_PRELOAD=libumem.so environment variable assigment.
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 65790 66612 67434 68257 69079
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 21656 36571 42146 44243 46464 36922
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 822 - / 822 - / 822 - / 822 - / 822 - / 822
1000us - / 822 - / 822 - / 822 - / 822 - / 822 - / 822
5000us 60033 / 60855 42763 / 43586 14803 / 15625 11513 / 12336 9868 / 9046 - / 822
10000us 61678 / 62500 56744 / 57566 38651 / 39474 33717 / 34540 26316 / 12336 - / 822
25000us 63322 / 64145 60033 / 60855 55099 / 55921 52632 / 53454 42763 / 29605 822 / 1645
50000us 63322 / 64145 60855 / 61678 58388 / 59211 56744 / 55921 42763 / 40296 5757 / 2467
75000us 63322 / 64145 61678 / 62500 60033 / 59211 56744 / 55921 46875 / 43586 27961 / 2467
100000us 64145 / 64967 61678 / 62500 60033 / 60855 58388 / 55921 49342 / 43586 37007 / 4112
200000us 64145 / 64967 63322 / 64145 60033 / 60855 60033 / 59211 54276 / 51809 42763 / 4112
500000us 65790 / 66612 64145 / 64967 63322 / 64145 62500 / 63322 60033 / 60855 54276 / 12336
1000000us 66612 / - 66612 / - 64967 / 65790 64145 / 64967 63322 / 64145 60033 / 58388

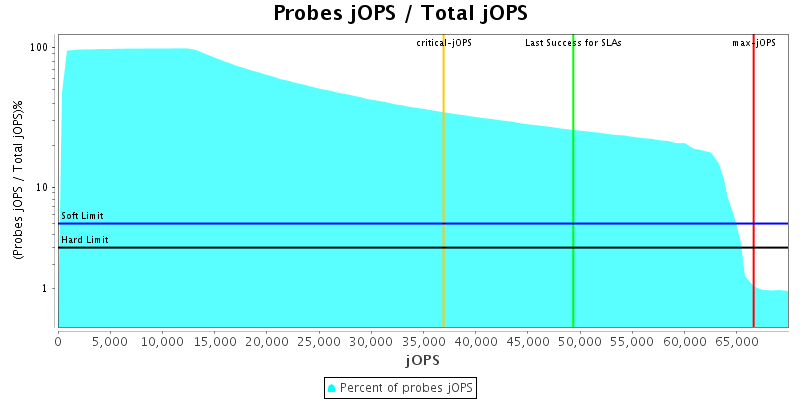

Probes jOPS / Total jOPS

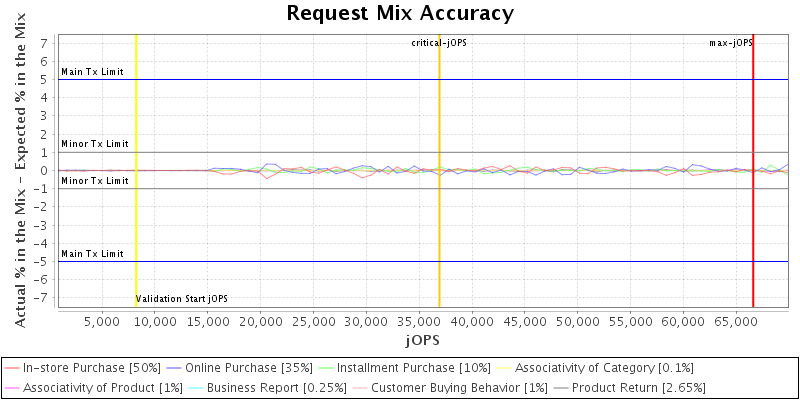

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 64
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 48
specjbb.controller.host localhost 192.168.235.147
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=80}
specjbb.forkjoin.workers 48 {Tier1=96, Tier2=6, Tier3=16}
specjbb.group.count 1 2
specjbb.heartbeat.period 10000 100000
specjbb.heartbeat.threshold 100000 1000000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 82237 IR
High-bound (settled) is 68564 IR
