Hewlett Packard Enterprise ProLiant BL660c Gen9 177561 SPECjbb2015-MultiJVM max-jOPS
135406 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: May 23, 2016
SPEC license #: 3 Hardware Availability: May-2016 Software Availability: Apr-2016 Publication: Jun 20, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores88
Total Threads176
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant BL660c Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMay-2016
ModelProLiant BL660c Gen9
Form FactorFull-height server blade
CPU NameIntel Xeon E5-4669 v4
CPU Characteristics22 Core, 2.20 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System88
Cores Per Chip22
Threads Per System176
Threads Per Core2
VersionI38 04/25/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk2 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)2048
# and size of DIMM(s)32 x 64 GB
Memory Details64 GB 4Rx4 PC4-2400T-LD1
# and type of Network Interface Cards (NICs)HP FlexFabric 10Gb 2-port
Power Supply Quantity and Rating (W)6 x 2250
Other HardwareNone
Cabinet/Housing/EnclosureBladeSystem c7000 Enclosure
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.2
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-327
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Home Snoop
  • Thermal Configuration=Maximum Cooling
  • Power Profile=Maximum Performance
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Refresh Rate=1x Refresh
  • Memory Patrol Scrub=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • SE Linux=Disabled
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms492g -Xmx492g -Xmn470g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=44 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps

Tuning

Used numactl to affinitize each Backend JVM to NUMA node

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 173615 175588 177561 179534 181507
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 90095 141062 150926 153228 154872 135406
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 3946 / 5919 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
5000us 169669 / 171642 159805 / 161778 72997 / 74970 59187 / 61160 37485 / 39458 - / 1973
10000us 171642 / 173615 167696 / 169669 132184 / 134157 118374 / 120347 92726 / 88780 - / 1973
25000us 171642 / 173615 169669 / 171642 165724 / 167696 163751 / 165724 140076 / 142049 9864 / 5919
50000us 171642 / 173615 171642 / 173615 169669 / 171642 165724 / 167696 151913 / 149940 63133 / 13810
75000us 171642 / 173615 171642 / 173615 169669 / 171642 165724 / 167696 159805 / 149940 78916 / 13810
100000us 175588 / 177561 171642 / 173615 169669 / 171642 165724 / 167696 159805 / 149940 92726 / 13810
200000us 175588 / 177561 171642 / 173615 169669 / 171642 169669 / 171642 163751 / 161778 108509 / 25648
500000us 177561 / - 175588 / 177561 171642 / 173615 169669 / 171642 169669 / 171642 163751 / 165724
1000000us 177561 / - 177561 / - 177561 / - 173615 / 175588 173615 / 175588 169669 / 171642

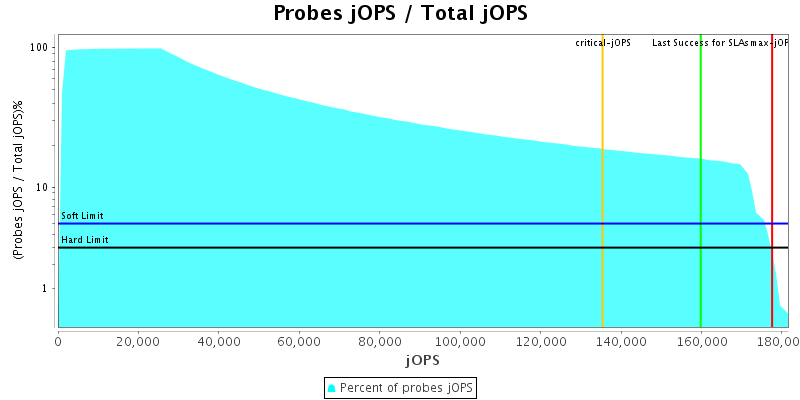

Probes jOPS / Total jOPS

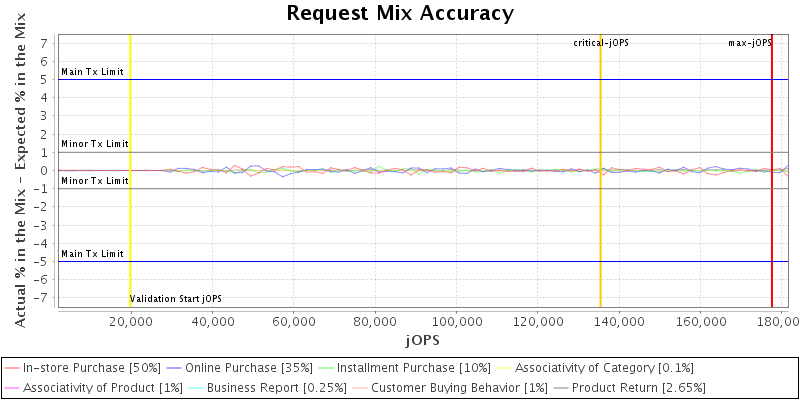

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

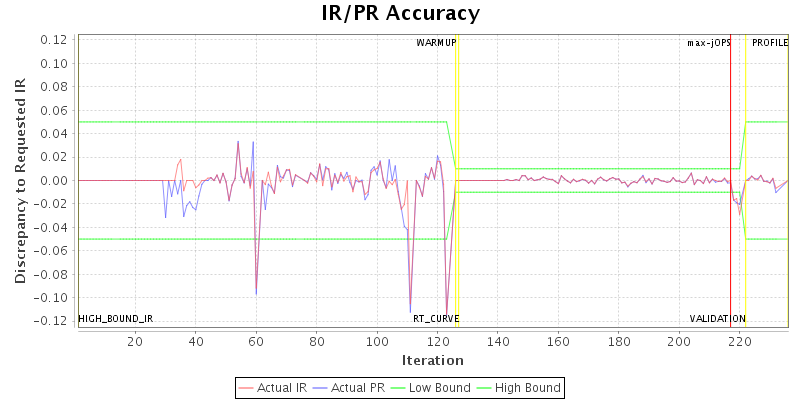

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 176 {Tier1=252, Tier2=68, Tier3=29}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 190974 IR
