SPECjbb2015 Report for jbb2015-20160522-00104 : 121381 max-jOPS ; 38595 critical-jOPS

Hardware hw_1
Name	FusionServer RH2288H V3
Vendor	Huawei Technologies Co., Ltd
Vendor URL	http://www.huawei.com/
Available	Mar-2016
Model	FusionServer RH2288H V3
Form Factor	2U
CPU Name	Intel Xeon E5-2699 v4
CPU Characteristics	22-Core, 2.20GHz, 55MB L3 Cache (Turbo Boost Technology up to 2.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	44
Cores Per Chip	22
Threads Per System	88
Threads Per Core	2
Version	None
CPU Frequency (MHz)	2200
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	256 KB (I+D) per core
Tertiary Cache	55MB (I+D) on chip per chip
Other Cache	None
Disk	1x 600GB 10K RPM
File System	EXT4
Memory Amount (GB)	256
# and size of DIMM(s)	16 x 16GB
Memory Details	256 GB (16 x 16 GB 2Rx8 PC4-2400T-R)
# and type of Network Interface Cards (NICs)	4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 750W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux
Vendor	Red Hat
Vendor URL	http://www.redhat.com
Version	Red Hat Enterprise Linux Server release 6.7 (Santiago)
Available	Jul-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u92
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 1.8.0_92
Available	Apr-2016
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS tuning Turbo mode was enabled Power Policy was set to Performance COD mode was configured Memory Patrol Scrub was set to Disabled Power Performance Tuning was set to performance
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	SE Linux = Disabled tuned-adm acive profile was throughput-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning	numactl was used to affinitize each Backend JVM to a single numa node, eg: numactl --cpunodebind=$node --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-showversion -Xmn1536m -Xms2g -Xmx2g
Tuning	numactl was used to affinitize each TxInjector JVM to a single numa node, eg: numactl --cpunodebind=$node --localalloc
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	119970	121381	122793	124204	125615

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	28934	31756	37402	44695	55750	38595

Note

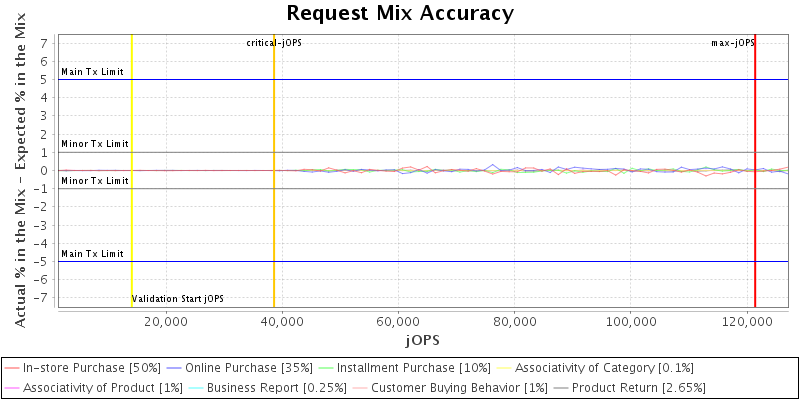

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.timeouts.connect	60000	650000
specjbb.comm.connect.timeouts.read	60000	650000
specjbb.customerDriver.threads	64	{probe=96, saturate=96}
specjbb.forkjoin.workers	88	{Tier1=170, Tier2=60, Tier3=30}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	88	33
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 141141 IR

High-bound (settled) is 133510 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Huawei Technologies Co., Ltd FusionServer RH2288H V3	121381 SPECjbb2015-MultiJVM max-jOPS 38595 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd	Test Sponsor: Huawei Technologies Co., Ltd	Test location: Huawei Technologies Co., Ltd	Test date: May 20, 2016
SPEC license #: 3175	Hardware Availability: Mar-2016	Software Availability: Oct-2015	Publication: Jun 13, 2016

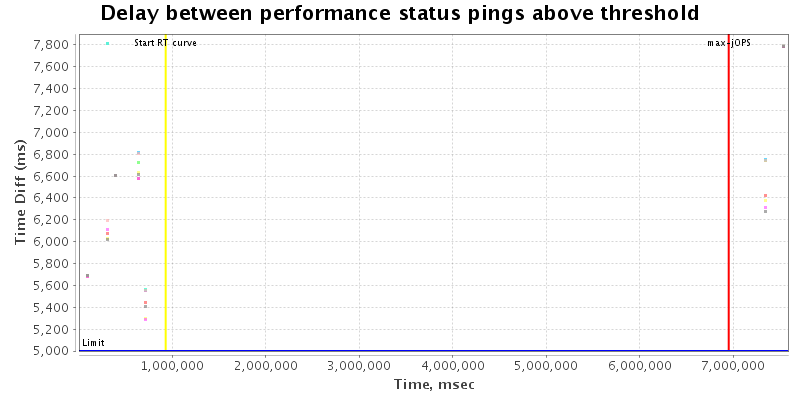

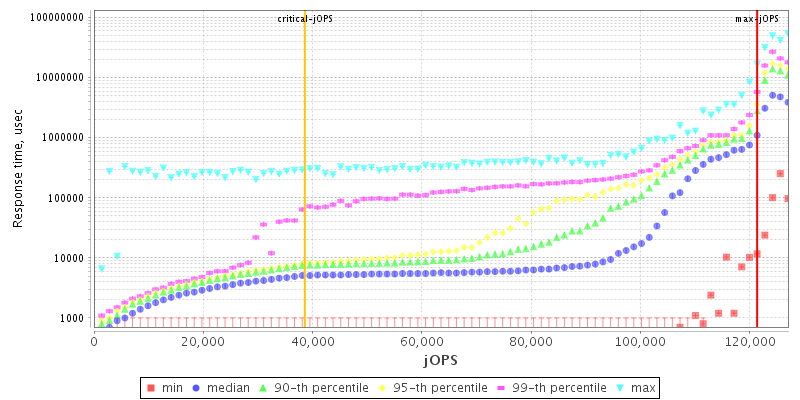

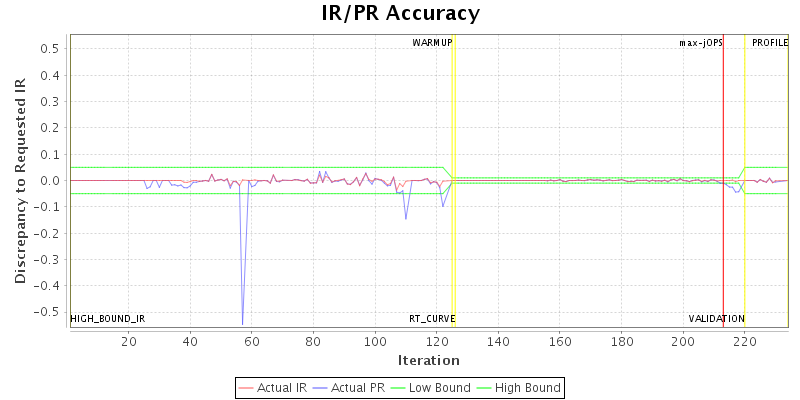

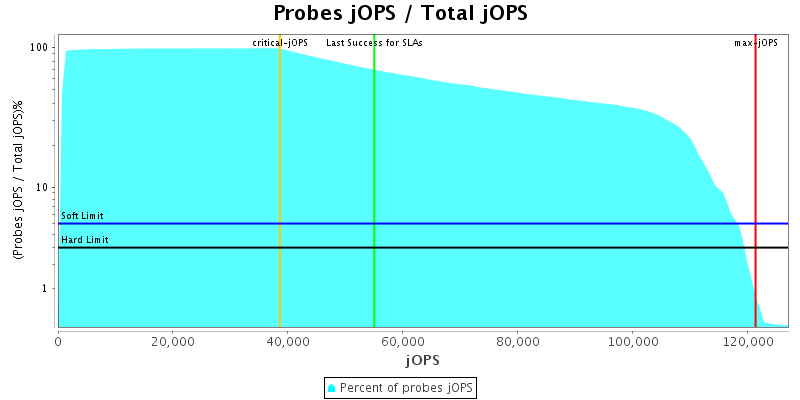

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
