SPECjbb2015
Copyright © 2015-2016 Standard Performance Evaluation Corporation
Huawei Technologies Co., Ltd FusionServer CH121 V3 NON-COMPLIANT (NC) RESULT
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shenzhen, China Test date: Apr 10, 2016
SPEC license #: 3175 Hardware Availability: Mar-2016 Software Availability: Jan-2016 Publication: Apr 27, 2016
Validation Errors Summary
SPEC has determined that this result is not in compliance with the SPECjbb2015 run and reporting rules. Specifically, OS version being used for this publication is not supported for the Microprocessor (CPU) being used in this system.
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

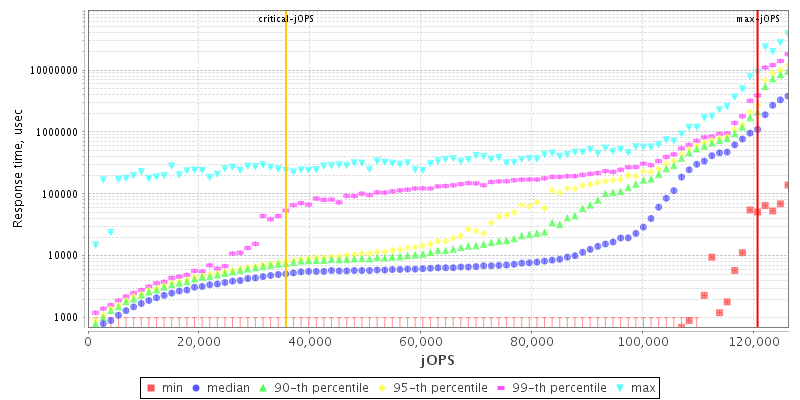

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameFusionServer CH121 V3
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableMar-2016
ModelFusionServer CH121 V3
Form FactorBlade Server Node
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22-Core, 2.20GHz, 55MB L3 Cache (Turbo Boost Technology up to 2.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache55MB (I+D) on chip per chip
Other CacheNone
Disk1 x 600GB 10K RPM
File SystemEXT4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details256 GB (16 x 16 GB 2Rx8 PC4-2400T-R)
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureE9000 Converged Infrastructure Blade Server Chassis
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.0 (Maipo)
AvailableMay-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u77
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_77
AvailableMar-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Turbo mode was enabled
  • Power Policy was set to Performance
  • COD mode was configured
  • Memory Patrol Scrub was set to Disabled
  • Energy Bias was set Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm active profile was throughput-performance
  • ulimit -c unlimited
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 119302 120674 122045 123416 124787
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 25369 30854 34968 42167 50052 35673
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1371 - / 1371 - / 1371 - / 1371 - / 1371 - / 1371
1000us 12342 / 13713 4114 / 5485 2743 / 4114 1371 / 2743 - / 1371 - / 1371
5000us 95990 / 97362 34282 / 35654 23312 / 24683 21941 / 23312 17827 / 19198 - / 1371
10000us 101475 / 102847 87763 / 89134 57594 / 58965 45253 / 46624 24683 / 26055 - / 1371
25000us 104218 / 105589 98733 / 100104 82277 / 83649 71307 / 68564 30168 / 31540 4114 / 2743
50000us 105589 / 106961 101475 / 102847 87763 / 89134 76792 / 78164 34282 / 35654 4114 / 2743
75000us 106961 / 108332 102847 / 104218 90505 / 91876 82277 / 83649 45253 / 41139 4114 / 2743
100000us 106961 / 108332 104218 / 105589 91876 / 93248 82277 / 83649 50738 / 49366 4114 / 2743
200000us 115188 / 116560 106961 / 108332 101475 / 102847 98733 / 100104 87763 / 89134 21941 / 9599
500000us 117931 / 119302 115188 / 116560 108332 / 109703 106961 / 108332 105589 / 106961 97362 / 90505
1000000us 120674 / - 119302 / 120674 116560 / 117931 115188 / 116560 115188 / 116560 106961 / 108332

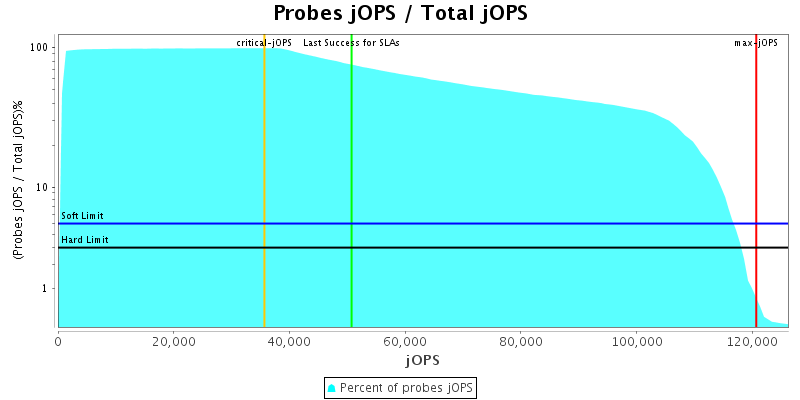

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

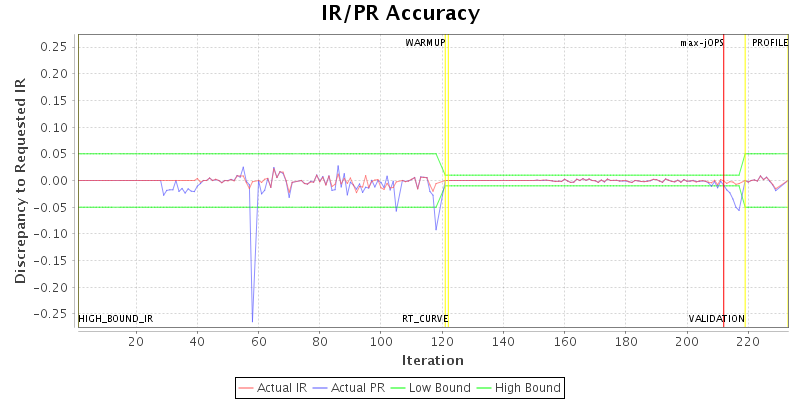

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.customerDriver.threads 64 {probe=96, saturate=96}
specjbb.forkjoin.workers 88 {Tier1=170, Tier2=60, Tier3=30}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 88 22
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 137129 IR
High-bound (settled) is 127120 IR
