Cisco Systems Cisco UCS C220 M4 117931 SPECjbb2015-MultiJVM max-jOPS
39417 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: March 1, 2016
SPEC license #: 9019 Hardware Availability: April-2016 Software Availability: April-2016 Publication: Apr 13, 2016
Benchmark Results Summary

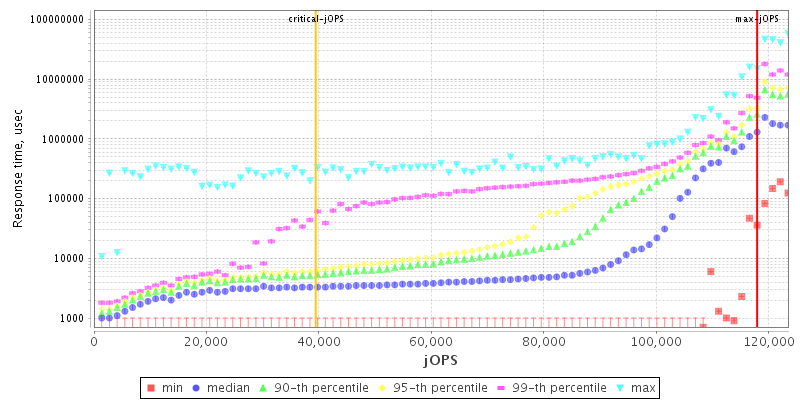

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C220 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com
AvailableApril-2016
ModelCisco UCS C220 M4
Form Factor1U Rack
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22Cores, 2.20 GHz, 55MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache55MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SSD SAS
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16 GB
Memory Details16 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 770W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.7
AvailableJuly-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u74
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_74
AvailableFeb-2016
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Energy Performance set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory Low Voltage DDR Mode set to Performance Mode
  • Processor C6 Report set to disabled
  • QPI Snoop Mode set to Cluster On Die
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm profile set to throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms29g -Xmx29g -Xmn27g -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 116560 117931 119302 120674 122045
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 29482 32225 40453 45709 54166 39417
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1371 - / 1371 - / 1371 - / 1371 - / 1371 - / 1371
1000us 5485 / 6856 2743 / 4114 - / 1371 - / 1371 - / 1371 - / 1371
5000us 100104 / 101475 82277 / 83649 35654 / 30168 28797 / 30168 17827 / 19198 - / 1371
10000us 102847 / 104218 93248 / 94619 67193 / 68564 57594 / 58965 30168 / 28797 - / 1371
25000us 104218 / 105589 100104 / 101475 86391 / 87763 76792 / 78164 31540 / 32911 4114 / 2743
50000us 105589 / 106961 102847 / 104218 90505 / 91876 78164 / 79535 41139 / 39767 4114 / 2743
75000us 106961 / 108332 102847 / 104218 91876 / 93248 85020 / 86391 46624 / 43881 4114 / 2743
100000us 106961 / 108332 102847 / 104218 95990 / 97362 85020 / 86391 53480 / 54852 4114 / 2743
200000us 111074 / 112446 105589 / 106961 100104 / 101475 95990 / 97362 86391 / 87763 38396 / 2743
500000us 115188 / 116560 111074 / 112446 105589 / 106961 105589 / 106961 104218 / 105589 97362 / 74050
1000000us 117931 / - 115188 / 116560 113817 / 112446 111074 / 112446 111074 / 109703 104218 / 105589
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

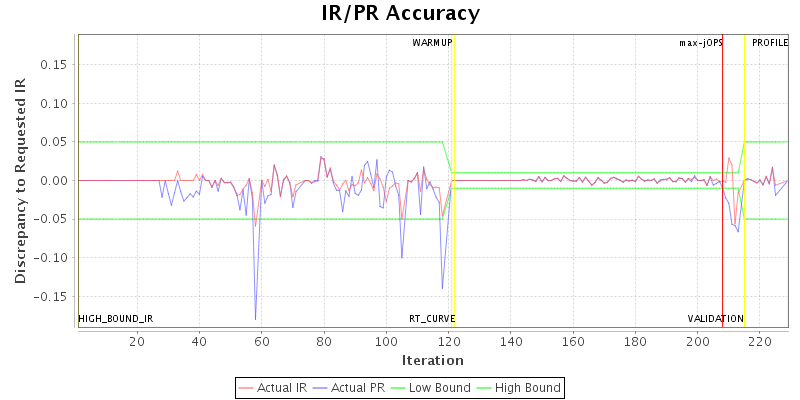

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 88
specjbb.comm.connect.worker.pool.min 1 44
specjbb.forkjoin.workers 88 {Tier1=170, Tier2=60, Tier3=30}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 88 27
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 137129 IR
High-bound (settled) is 127120 IR
