Huawei Technologies Co., Ltd FusionServer CH121 V3 NON-COMPLIANT (NC) RESULT
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shenzhen, China Test date: Mar 10, 2016
SPEC license #: 3175 Hardware Availability: Mar-2016 Software Availability: Jan-2016 Publication: Apr 27, 2016
Validation Errors Summary
SPEC has determined that this result is not in compliance with the SPECjbb2015 run and reporting rules. Specifically, OS version being used for this publication is not supported for the Microprocessor (CPU) being used in this system.
Benchmark Results Summary

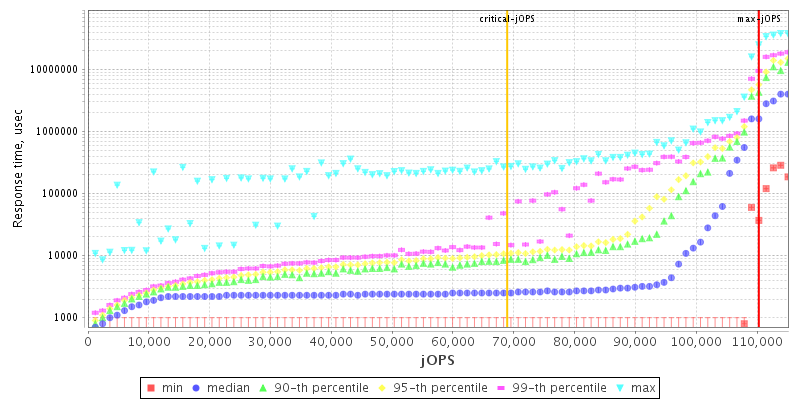

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer CH121 V3
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableMar-2016
ModelFusionServer CH121 V3
Form FactorCompute Node
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22-Core, 2.20GHz, 55MB L3 Cache (Turbo Boost Technology up to 2.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache55MB (I+D) on chip per chip
Other CacheNone
Disk1x 600GB 10K RPM
File SystemEXT4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB
Memory Details1024 GB (16 x 64 GB 2S2Rx4 PC4-2400T-R)
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureE9000 Converged Infrastructure Blade Server Chassis
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u73
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_73
AvailableJan-2016
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Turbo mode was enabled
  • Power Policy was set to Performance
  • Early Snoop mode was configured
  • Memory Patrol Scrub was set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm active profile was throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseParallelGC -Xms472g -Xmx472g -Xmn352g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=22 -XX:+UseTransparentHugePages
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn3g -Xms4g -Xmx4g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 109081 110279 111478 112677 113876
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 48547 71422 73869 76117 79713 68912
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1199 - / 1199 - / 1199 - / 1199 - / 1199 - / 1199
1000us 10788 / 11987 3596 / 4795 2397 / 3596 1199 / 2397 - / 1199 - / 1199
5000us 104286 / 105485 95895 / 97094 34762 / 35961 27570 / 28769 19179 / 20378 - / 1199
10000us 104286 / 105485 97094 / 98293 79114 / 75517 64729 / 65928 47948 / 49146 2397 / 1199
25000us 105485 / 106683 100690 / 101889 93498 / 94697 88703 / 89902 79114 / 65928 23974 / 4795
50000us 105485 / 106683 103087 / 104286 95895 / 97094 91100 / 92299 79114 / 70723 37159 / 4795
75000us 105485 / 106683 104286 / 105485 95895 / 97094 92299 / 93498 79114 / 73120 37159 / 4795
100000us 105485 / 106683 104286 / 105485 97094 / 98293 94697 / 95895 82710 / 76716 37159 / 4795
200000us 107882 / 109081 104286 / 105485 99491 / 100690 98293 / 99491 87504 / 83908 49146 / 10788
500000us 107882 / 109081 106683 / 107882 104286 / 105485 101889 / 103087 98293 / 99491 92299 / 93498
1000000us 110279 / - 107882 / 109081 107882 / 109081 106683 / 107882 106683 / 107882 100690 / 99491

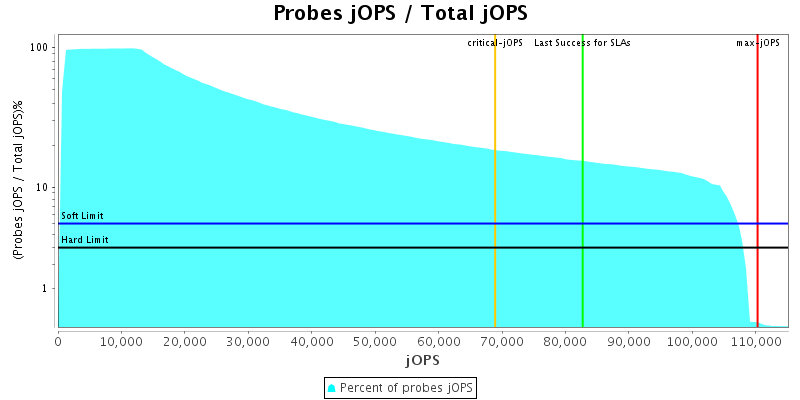

Probes jOPS / Total jOPS

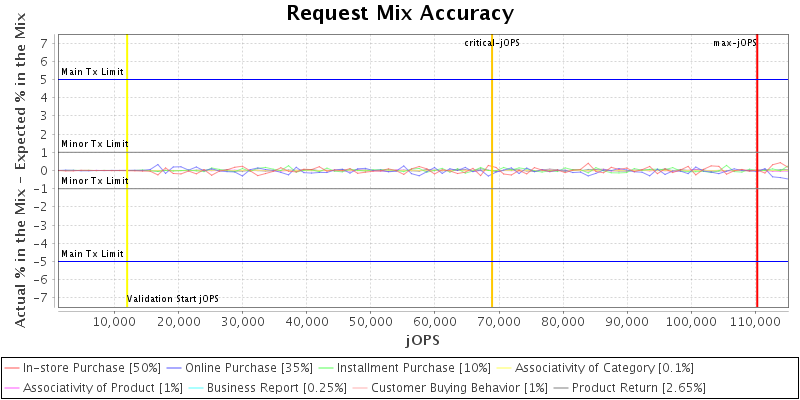

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 6000000
specjbb.comm.connect.timeouts.read 60000 6000000
specjbb.comm.connect.timeouts.write 60000 6000000
specjbb.controller.handshake.timeout 600000 6000000
specjbb.forkjoin.workers 88 {Tier1=136, Tier2=66, Tier3=33}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 119869 IR
High-bound (settled) is 118981 IR
