Hewlett Packard Enterprise ProLiant ML350 Gen9 119302 SPECjbb2015-MultiJVM max-jOPS
28835 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: March 10, 2016
SPEC license #: 3 Hardware Availability: Mar 2016 Software Availability: Mar 2016 Publication: Mar 30, 2016
Benchmark Results Summary

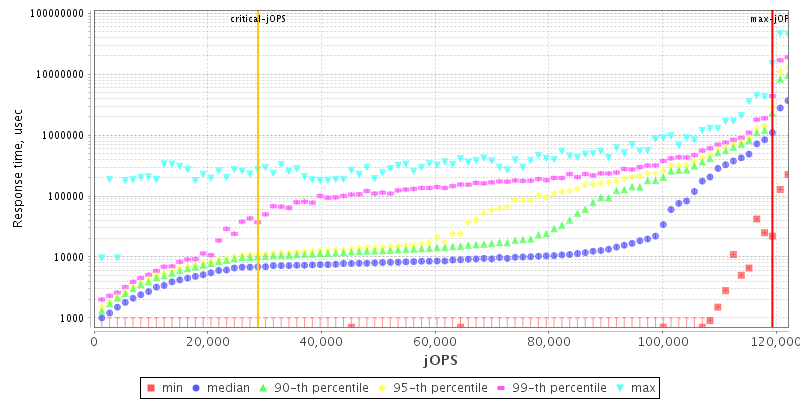

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)256 GB
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant ML350 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMar 2016
ModelProLiant ML350 Gen9
Form Factor5U Tower
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22 Core, 2.2 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionP92 02/22/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk1 x 500 GB
File SystemXFS
Memory Amount (GB)256
# and size of DIMM(s)16 x 16384 MB
Memory Details16 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1 Gb 4-Port
Power Supply Quantity and Rating (W)2 x 500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.2
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-327
AvailableNov 2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u72
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_72
AvailableJan 2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Cluster on Die
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Refresh Rate=1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line None
Tuning -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=22
Notes

Used numactl to affinitize controller to a physical core in a NUMA node.

  • numactl --physcpubind=11 --membind=1
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line None
Tuning

-server -Xms29g -Xmx29g -Xmn27g -XX:LargePageSizeInBytes=2m -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps

Notes

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-10,44-54 --membind=0
  • numactl --physcpubind=11-21,55-65 --membind=1
  • numactl --physcpubind=22-32,66-76 --membind=2
  • numactl --physcpubind=33-43,77-87 --membind=3
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line None
Tuning -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=22
Notes

Used numactl to affinitize each Transaction Injector JVM to a physical core in a NUMA node.

  • numactl --physcpubind=0 --membind=0
  • numactl --physcpubind=11 --membind=1
  • numactl --physcpubind=22 --membind=2
  • numactl --physcpubind=33 --membind=3
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 116560 117931 119302 120674 122045
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 18512 23997 30854 34968 41595 28835
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1371 - / 1371 - / 1371 - / 1371 - / 1371 - / 1371
1000us 4114 / 5485 1371 / 2743 - / 1371 - / 1371 - / 1371 - / 1371
5000us 91876 / 93248 17827 / 19198 12342 / 13713 10970 / 12342 8228 / 9599 - / 1371
10000us 100104 / 101475 75421 / 76792 28797 / 30168 23312 / 24683 17827 / 19198 4114 / 2743
25000us 105589 / 106961 98733 / 100104 79535 / 80906 64451 / 65822 24683 / 23312 4114 / 2743
50000us 105589 / 106961 100104 / 101475 83649 / 85020 67193 / 68564 30168 / 31540 4114 / 2743
75000us 106961 / 108332 101475 / 102847 86391 / 87763 72678 / 74050 34282 / 35654 4114 / 2743
100000us 108332 / 109703 104218 / 105589 90505 / 91876 79535 / 78164 42510 / 39767 4114 / 2743
200000us 115188 / 116560 106961 / 108332 98733 / 100104 93248 / 94619 82277 / 83649 49366 / 8228
500000us 117931 / 119302 115188 / 116560 108332 / 109703 108332 / 109703 105589 / 106961 90505 / 82277
1000000us 119302 / - 117931 / 119302 115188 / 116560 115188 / 116560 113817 / 115188 105589 / 106961

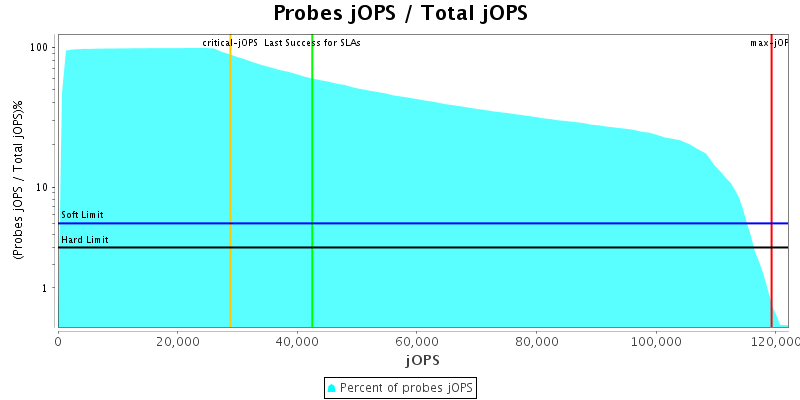

Probes jOPS / Total jOPS

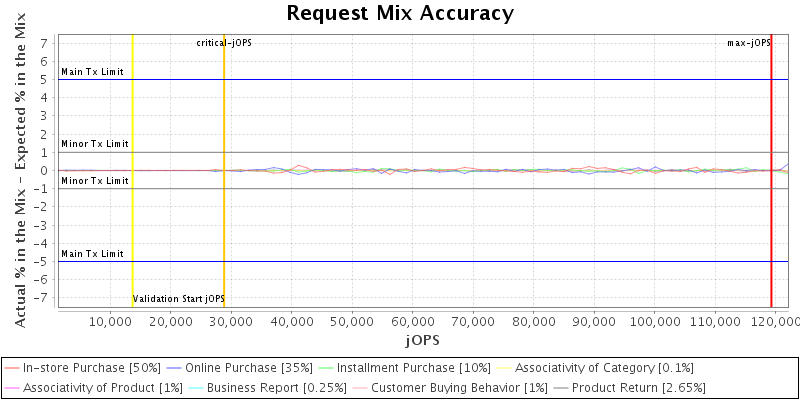

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

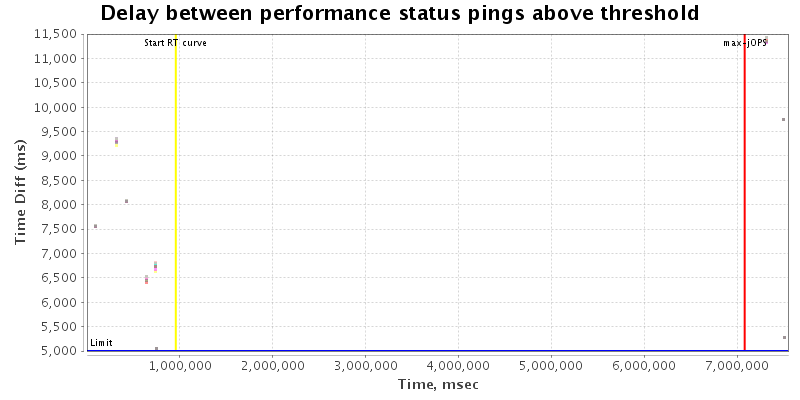

Delay between status pings

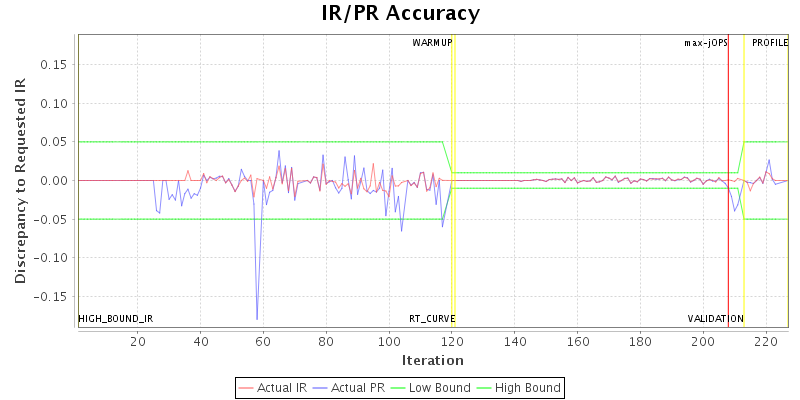

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 88 {Tier1=135, Tier2=67, Tier3=25}
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 150000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 137129 IR
High-bound (settled) is 124990 IR
