SPECjbb2015 Report for jbb2015-20160315-00048 : 53945 max-jOPS ; 30533 critical-jOPS

Hardware hw_1
Name	ProLiant DL120 Gen9
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Mar 2016
Model	ProLiant DL120 Gen9
Form Factor	1U
CPU Name	Intel Xeon E5-2699 v4
CPU Characteristics	22 Core, 2.2 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	22
Cores Per Chip	22
Threads Per System	44
Threads Per Core	2
Version	P86 02/22/2016
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	256 KB I+D on chip per core
Tertiary Cache	55 MB I+D on chip per chip
Other Cache	None
Disk	1 x 500 GB
File System	XFS
Memory Amount (GB)	128
# and size of DIMM(s)	4 x 32768 MB
Memory Details	32 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 1 Gb 2-Port
Power Supply Quantity and Rating (W)	1 x 550
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.2
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	3.10.0-327
Available	Nov 2015
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u74
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_74
Available	Feb 2016
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Hyper Threading=Enabled QPI Snoop Configuration=Early Snoop Power Profile=Maximum Performance Thermal Configuration=Maximum Cooling Energy/Performance Bias=Maximum Performance Collaborative Power Control=Disabled Processor Power and Utilization Monitoring=Disabled Memory Refresh Rate=1x Refresh Memory Patrol Scrubbing=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	SELINUX=disabled tuned-adm profile=throughput-performance
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	None
Tuning	-server -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -Xmx114g -Xms114g -Xmn97g -XX:MaxTenuringThreshold=8 -XX:+ScavengeBeforeFullGC -XX:+UseNUMA -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking
Notes	None

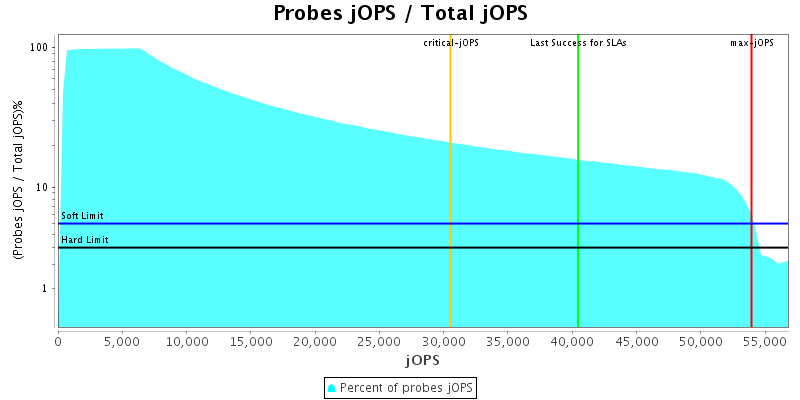

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	53235	53945	54655	55364	56074

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	21471	27209	31089	36625	39891	30533

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

User did not set any property for this run


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 70980 IR

High-bound (settled) is 59167 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Hewlett Packard Enterprise ProLiant DL120 Gen9	53945 SPECjbb2015-Composite max-jOPS 30533 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: March 15, 2016
SPEC license #: 3	Hardware Availability: Mar 2016	Software Availability: Mar 2016	Publication: Mar 30, 2016


SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 1) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
