Oracle Corporation SPARC T7-1 120603 SPECjbb2015-MultiJVM max-jOPS
60280 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Burlington, MA Test date: Nov 4, 2015
SPEC license #: 73 Hardware Availability: Oct-2015 Software Availability: Oct-2015 Publication: Nov 27, 2015
Benchmark Results Summary

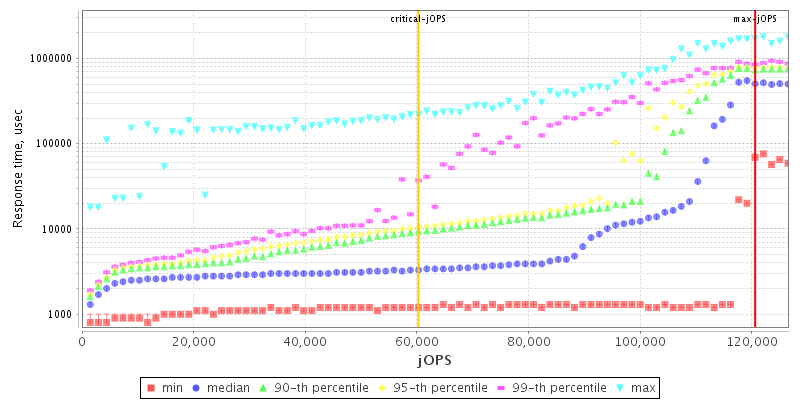

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores32
Total Threads256
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSPARC T7-1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableOct-2015
ModelSPARC T7-1
Form Factor2RU rackmount server
CPU NameSPARC M7
CPU Characteristics4133 MHz SPARC M7
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System32
Cores Per Chip32
Threads Per System256
Threads Per Core8
VersionNone
CPU Frequency (MHz)4133
Primary Cache16KB I + 16KB D on chip per core
Secondary Cache2 MB I on chip per chip (256 KB / 4 cores); 4 MB D on chip per chip (256 KB / 2 cores)
Tertiary Cache64 MB (I+D) on chip per chip (8 MB / 4 cores)
Other CacheNone
Disk2 x 600 GB 10000 RPM SAS disk drive
File SystemZFS
Memory Amount (GB)512
# and size of DIMM(s)16 x 32 GB
Memory Details16 x 32 GB 4Rx4 PC4-2133P-L; each slot populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)2 x redundant, hot-swappable 1000W AC power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
Namenone
Vendornone
Vendor URLnone
Versionnone
Availablenone
Bitnessnone
Notesnone
Operating System os_1
NameOracle Solaris 11.3
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.3.1.5.0
AvailableOct-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u66
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_66
AvailableOct-2015
Bitness64
NotesNone
Other Software other_1
Namenone
Vendornone
Vendor URLnone
Versionnone
Availablenone
Bitnessnone
Notesnone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning none
Notes none
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning none
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning The controller JVM was run with critical thread priority.
Notes none
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line priocntl -e -c FX -m 60 -p 60 java -Xmx362g -Xms362g -Xmn340g -XX:+UseParallelOldGC -XX:ParallelGCThreads=207 -XX:+UseLargePages -XX:LargePageSizeInBytes=256m -XX:+AlwaysPreTouch -XX:+AggressiveOpts -XX:-UseBiasedLocking
Tuning Each backend was run with critical threads priority.
Notes none
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning Each transaction injector was run with critical threads priority.
Notes none
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 119132 120603 122074 123545 125015
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 41917 59713 63978 66920 74274 60280
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1471 - / 1471 - / 1471 - / 1471 - / 1471 - / 1471
1000us 1471 / 2942 - / 1471 - / 1471 - / 1471 - / 1471 - / 1471
5000us 108837 / 110308 88246 / 89717 32357 / 33828 26474 / 27945 17649 / 19120 - / 1471
10000us 110308 / 111779 92659 / 94129 64714 / 66185 57360 / 58831 41182 / 42652 - / 1471
25000us 114720 / 116191 108837 / 110308 100012 / 101483 94129 / 95600 63243 / 57360 22062 / 4412
50000us 114720 / 116191 110308 / 111779 102954 / 104425 94129 / 95600 63243 / 64714 22062 / 4412
75000us 114720 / 116191 111779 / 113249 102954 / 104425 100012 / 95600 66185 / 67655 22062 / 4412
100000us 116191 / 117662 111779 / 113249 104425 / 105895 100012 / 95600 77951 / 70597 22062 / 4412
200000us 116191 / 117662 114720 / 116191 107366 / 108837 102954 / 101483 88246 / 86775 55889 / 51477
500000us 120603 / - 116191 / 117662 111779 / 113249 110308 / 111779 102954 / 101483 94129 / 95600
1000000us 120603 / - 120603 / - 120603 / - 120603 / - 120603 / - 105895 / 107366

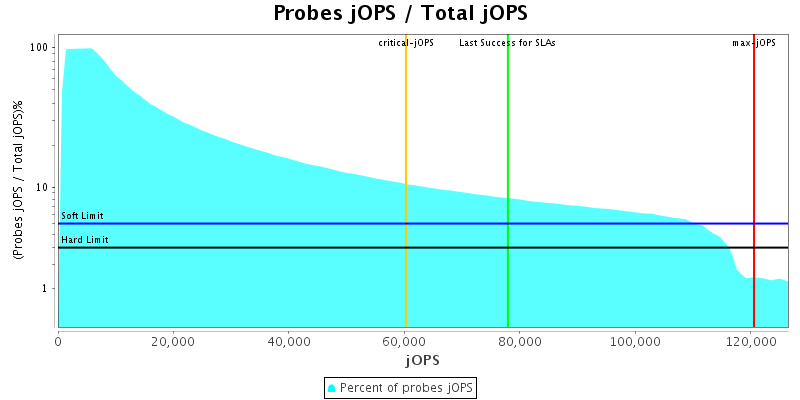

Probes jOPS / Total jOPS

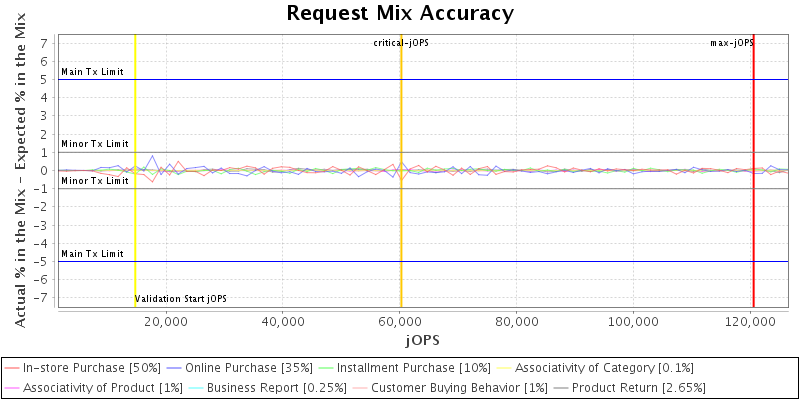

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

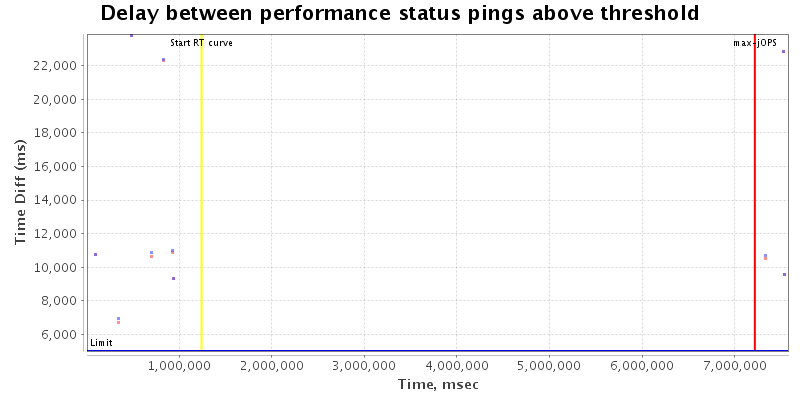

Delay between status pings

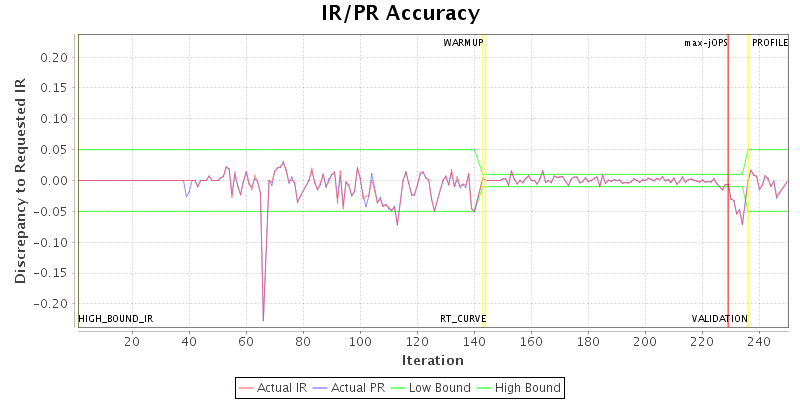

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 256
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=80}
specjbb.forkjoin.workers 256 {Tier1=256, Tier2=20, Tier3=40}
specjbb.group.count 1 1
specjbb.heartbeat.threshold 100000 100000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 147077 IR
High-bound (settled) is 125776 IR
