Hewlett-Packard Company HP Integrity Superdome X CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Ft. Collins, CO, USA Test date: Oct 22, 2014
SPEC license #: 3 Hardware Availability: Dec-2014 Software Availability: Oct-2014 Publication: Dec 01, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

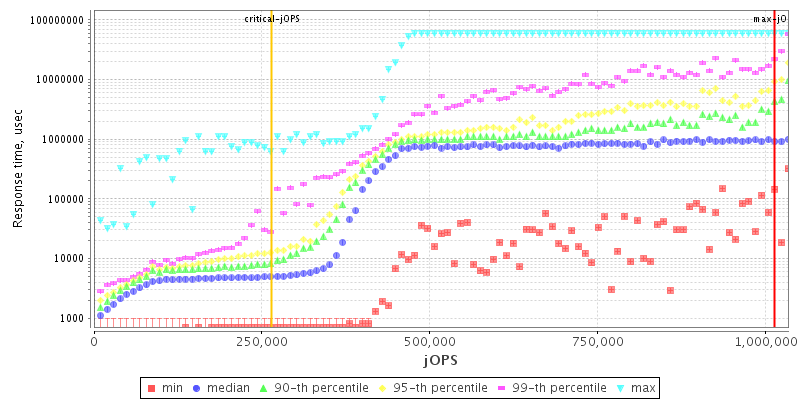

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips16
Total Cores240
Total Threads480
Total Memory Amount (GB)4096
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP Integrity Superdome X
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableDec-2014
ModelHP Integrity Superdome X
Form Factor42U
CPU NameIntel Xeon E7-2890 v2
CPU Characteristics15 Core, 2.80 GHz, 37.5 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System16
Cores Per System240
Cores Per Chip15
Threads Per System480
Threads Per Core2
VersionP79 02/21/2014
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D per core
Secondary Cache256 KB I+D per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk8 x C8S59A, 900 GB 10K RPM SAS
File SystemEXT4
Memory Amount (GB)4096
# and size of DIMM(s)128 x 32768 MB
Memory Details128 x 32GB 4Rx4 PC3-14900L ECC CL13; memory slots 1, 6, 7, 12, 13, 18, 19, and 24 associated with each processor are populated
# and type of Network Interface Cards (NICs)8 x Hewlett-Packard Company Ethernet 10Gb 2-port 560FLB Adapter
Power Supply Quantity and Rating (W)12 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.6 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server release 6.6 (Santiago) kernel 2.6.32-504.el6.x86_64
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u25
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_25
AvailableOct-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Firmware Settings:
    • Memory RAS Configuration set to Maximum Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • Kernel Boot options:
    • intel_idle.max_cstate=1
    • selinux=0
  • OS Tuneables:
    • "GOVERNOR=performance" was set in /etc/sysconfig/cpuspeed
    • ulimit -n 65536
    • sysctl -w kernel.sched_min_granularity_ns=6000000
    • sysctl -w kernel.sched_wakeup_granularity_ns=15000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize the Controller to a single numa node:
  • numactl --cpunodebind=6
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx238g -Xms238g -Xmn190g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:LargePageSizeInBytes=2m -XX:ParallelGCThreads=30 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 993889 1003633 1013377 1023121 1032865
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 131544 256592 297192 326424 394632 264402
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 9744 - / 9744 - / 9744 - / 9744 - / 9744 - / 9744
1000us 9744 / 19488 - / 9744 - / 9744 - / 9744 - / 9744 - / 9744
5000us 370272 / 380016 282576 / 292320 77952 / 87696 68208 / 77952 58464 / 68208 - / 9744
10000us 380016 / 389760 350784 / 360528 282576 / 292320 204624 / 214368 126672 / 136416 - / 9744
20000us 389760 / 399504 370272 / 380016 331296 / 341040 321552 / 311808 214368 / 224112 - / 9744
50000us 399504 / 409248 380016 / 389760 360528 / 370272 341040 / 350784 263088 / 243600 48720 / 38976
100000us 409248 / 418992 389760 / 399504 370272 / 380016 360528 / 370272 321552 / 272832 146160 / 38976
200000us 428736 / 438480 399504 / 409248 389760 / 399504 370272 / 380016 321552 / 331296 146160 / 38976
500000us 857473 / 740545 438480 / 448224 418992 / 428736 409248 / 418992 389760 / 399504 146160 / 126672
1000000us 1013377 / - 1013377 / - 604129 / 555409 457968 / 467712 438480 / 448224 370272 / 155904

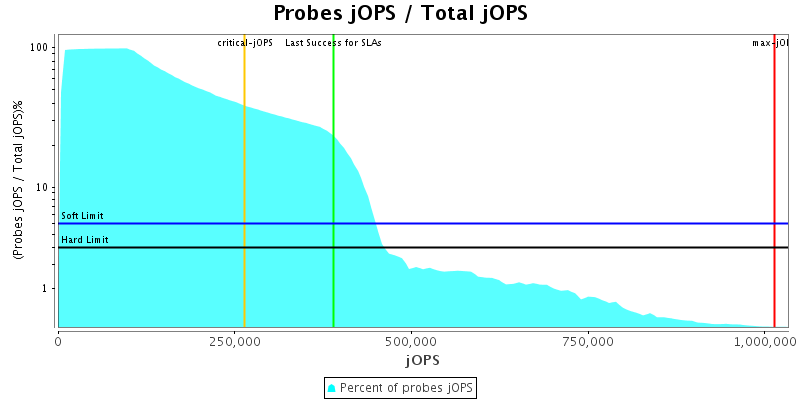

Probes jOPS / Total jOPS

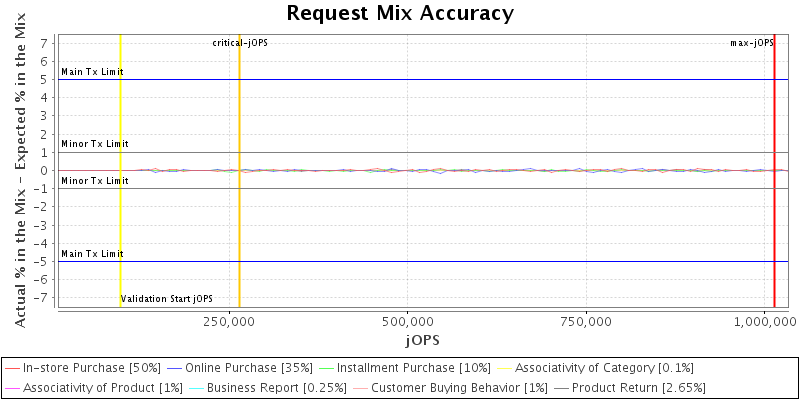

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

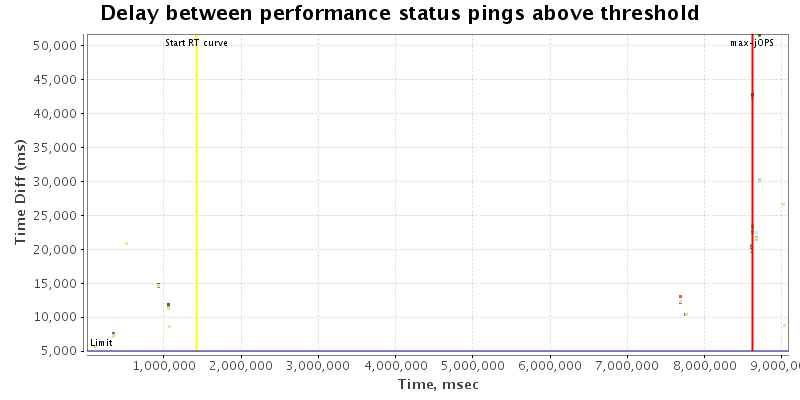

Delay between status pings

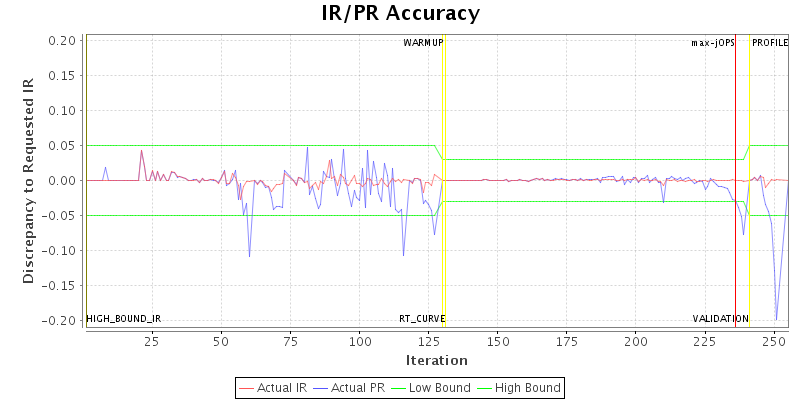

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 450
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 480 270
specjbb.group.count 1 16
specjbb.heartbeat.period 10000 60000
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 480 480
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 974401 IR
High-bound (settled) is 921651 IR
