SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP Integrity Superdome X CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Ft. Collins, CO, USA Test date: Nov 5, 2014
SPEC license #: 3 Hardware Availability: Dec-2014 Software Availability: Oct-2014 Publication: Dec 01, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

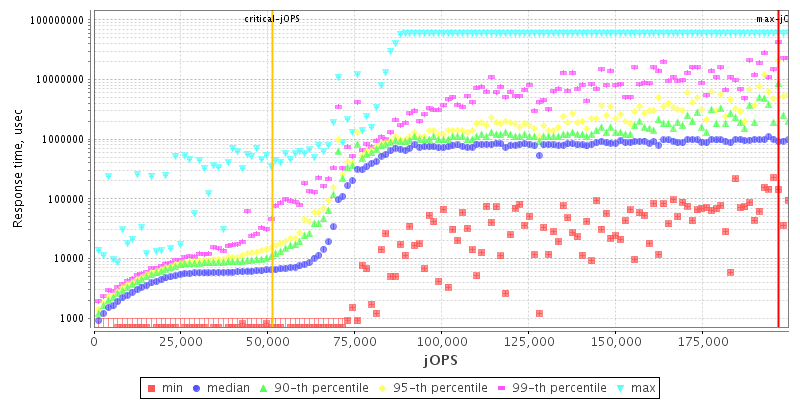

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores40
Total Threads80
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP Integrity Superdome X
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableDec-2014
ModelHP Integrity Superdome X
Form Factor42U
CPU NameIntel Xeon E7-8891 v2
CPU Characteristics10 Core, 3.20 GHz, 37.5 MB L3 Cache (Turbo Boost Technology up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System40
Cores Per Chip10
Threads Per System80
Threads Per Core2
VersionP79 02/21/2014
CPU Frequency (MHz)3200
Primary Cache32 KB I + 32 KB D per core
Secondary Cache256 KB I+D per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk8 x C8S59A, 900 GB 10K RPM SAS
File SystemEXT4
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768 MB
Memory Details32 x 32GB 4Rx4 PC3-14900L ECC CL13; memory slots 1, 6, 7, 12, 13, 18, 19, and 24 associated with each processor are populated
# and type of Network Interface Cards (NICs)2 x Hewlett-Packard Company Ethernet 10Gb 2-port 560FLB Adapter
Power Supply Quantity and Rating (W)12 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.6 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server release 6.6 (Santiago) kernel 2.6.32-504.el6.x86_64
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u25
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_25
AvailableOct-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Firmware Settings:
    • Memory RAS Configuration set to Maximum Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Kernel Boot options:
    • intel_idle.max_cstate=1
    • selinux=0
  • OS Tuneables:
    • "GOVERNOR=performance" was set in /etc/sysconfig/cpuspeed
    • ulimit -n 65536
    • sysctl -w kernel.sched_min_granularity_ns=6000000
    • sysctl -w kernel.sched_wakeup_granularity_ns=15000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize the Controller to a single numa node:
  • numactl --cpunodebind=1
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx238g -Xms238g -Xmn190g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:LargePageSizeInBytes=2m -XX:ParallelGCThreads=20 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 194050 195426 196802 198179 199555
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 25460 49774 59866 65371 70876 51190
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1376 - / 1376 - / 1376 - / 1376 - / 1376 - / 1376
1000us 2752 / 4129 1376 / 2752 - / 1376 - / 1376 - / 1376 - / 1376
5000us 67436 / 68812 22020 / 23396 15139 / 16515 13762 / 15139 11010 / 12386 - / 1376
10000us 68812 / 70188 61931 / 63307 48168 / 49545 37158 / 38535 24772 / 26149 6881 / 1376
20000us 70188 / 71564 67436 / 68812 59178 / 60555 55050 / 56426 42663 / 44040 24772 / 4129
50000us 71564 / 72941 68812 / 70188 66060 / 67436 61931 / 63307 50921 / 44040 37158 / 4129
100000us 74317 / 75693 70188 / 71564 67436 / 68812 67436 / 68812 59178 / 60555 37158 / 4129
200000us 127990 / 82574 72941 / 74317 68812 / 70188 68812 / 70188 66060 / 64683 37158 / 4129
500000us 162396 / 136248 81198 / 82574 77069 / 70188 74317 / 70188 71564 / 70188 63307 / 23396
1000000us 196802 / - 196802 / 194050 127990 / 92208 89456 / 75693 83951 / 70188 71564 / 68812

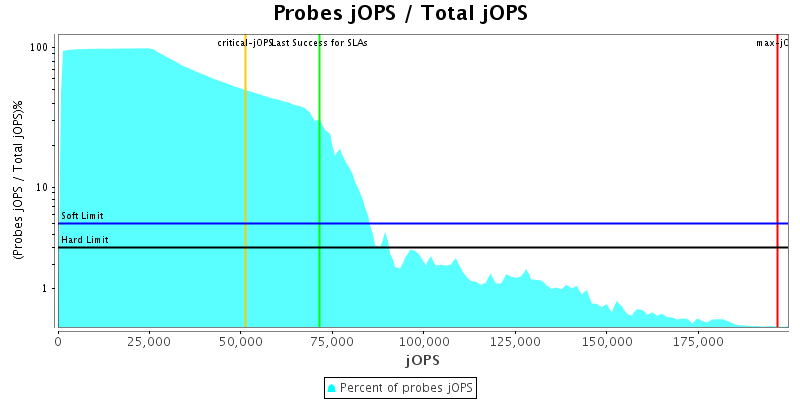

Number of probes
Probes jOPS / Total jOPS

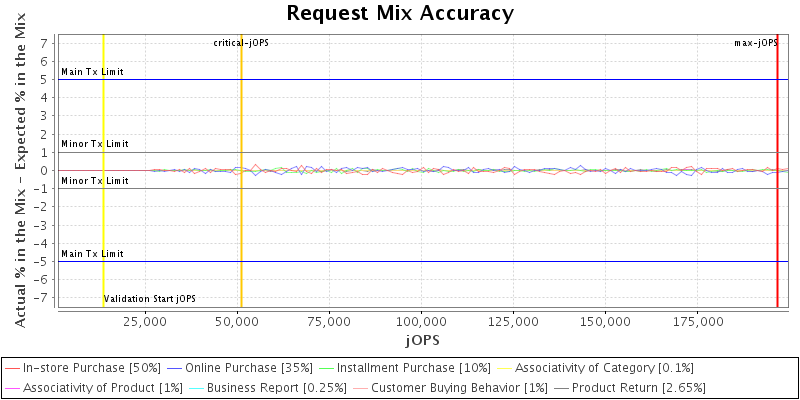

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

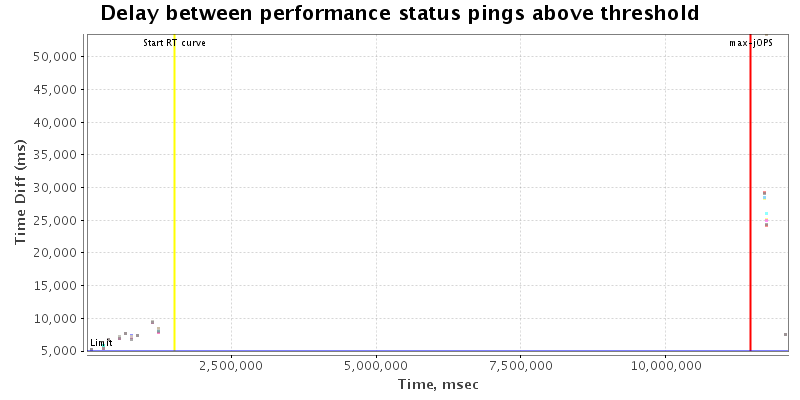

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

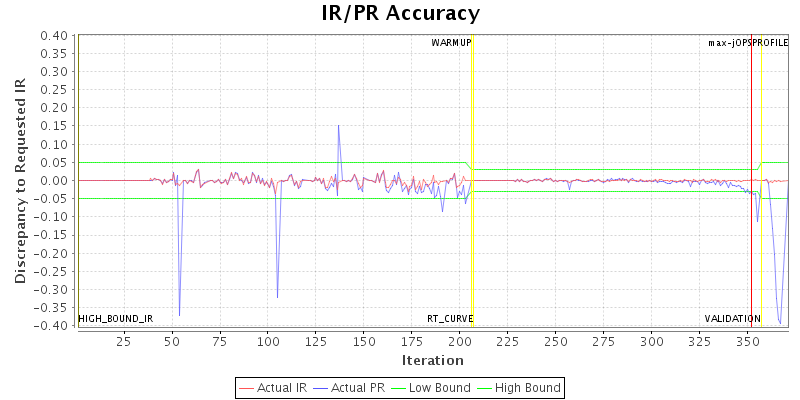

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 450
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 80 270
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 60000
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 80 480
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 137624 IR
High-bound (settled) is 128466 IR
