Hewlett-Packard Company HP ProLiant DL580 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Nov 5, 2014
SPEC license #: 3 Hardware Availability: Mar-2014 Software Availability: Oct-2014 Publication: Dec 01, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

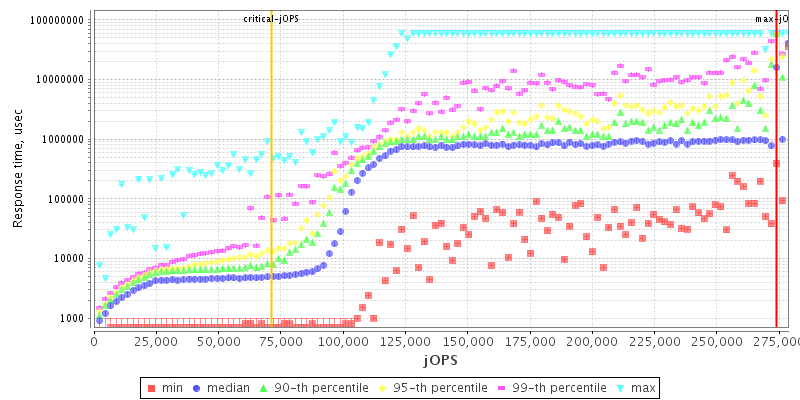

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL580 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableMar-2014
ModelHP ProLiant DL580 Gen8
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15 Core, 2.80 GHz, 37.5 MB L3 Cache, Turbo Boost Technology up to 3.40 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionP79 03/19/2014
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SAS, 10 K RPM, RAID 0
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768 MB
Memory Details32 GB 4Rx4 PC3L-14900R ECC CL13, running at 1333 MHz, slot 1,4,9,12 of each memory board (totally 8) populated
# and type of Network Interface Cards (NICs)1 x BCM5719 Quad Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.6 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.6 (Santiago) kernel 2.6.32-504.el6.x86_64
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u25
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_25
AvailableOct-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration:
  • HP Power Profile = Maximum Performance
  • Thermal Configuration = Maximum Cooling
  • Collaborative Power Control = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Kernel Boot options:
    • intel_idle.max_cstate=1
    • selinux=0
  • OS Tuneables:
    • "GOVERNOR=performance" was set in /etc/sysconfig/cpuspeed
    • ulimit -n 65536
    • sysctl -w kernel.sched_min_granularity_ns=6000000
    • sysctl -w kernel.sched_wakeup_granularity_ns=15000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize the Controller to a single numa node:
  • numactl --cpunodebind=2
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx238g -Xms238g -Xmn190g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:LargePageSizeInBytes=2m -XX:ParallelGCThreads=30 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 269508 271754 274000 276246 278492
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 37057 70585 77608 88713 101626 71203
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2246 - / 2246 - / 2246 - / 2246 - / 2246 - / 2246
1000us 4492 / 6738 2246 / 4492 - / 2246 - / 2246 - / 2246 - / 2246
5000us 96574 / 98820 74115 / 76361 20213 / 22459 17967 / 20213 15721 / 17967 4492 / 2246
10000us 98820 / 101065 92082 / 94328 76361 / 78606 53902 / 56147 35934 / 38180 4492 / 6738
20000us 101065 / 103311 96574 / 98820 87590 / 85344 80852 / 83098 65131 / 62885 29197 / 6738
50000us 103311 / 105557 98820 / 101065 92082 / 94328 87590 / 89836 76361 / 62885 29197 / 11229
100000us 105557 / 107803 101065 / 103311 94328 / 96574 92082 / 94328 87590 / 69623 35934 / 11229
200000us 116787 / 119033 103311 / 105557 101065 / 103311 94328 / 96574 87590 / 89836 35934 / 17967
500000us 271754 / 150475 114541 / 116787 107803 / 110049 105557 / 107803 103311 / 96574 80852 / 56147
1000000us 274000 / - 271754 / 274000 143738 / 130262 121279 / 123524 112295 / 114541 103311 / 83098

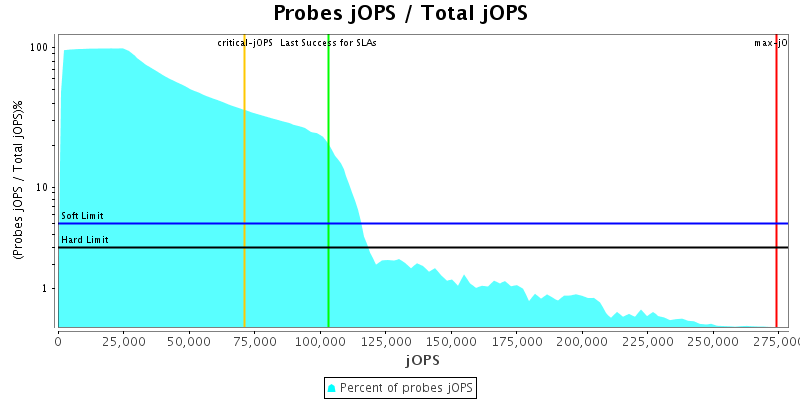

Probes jOPS / Total jOPS

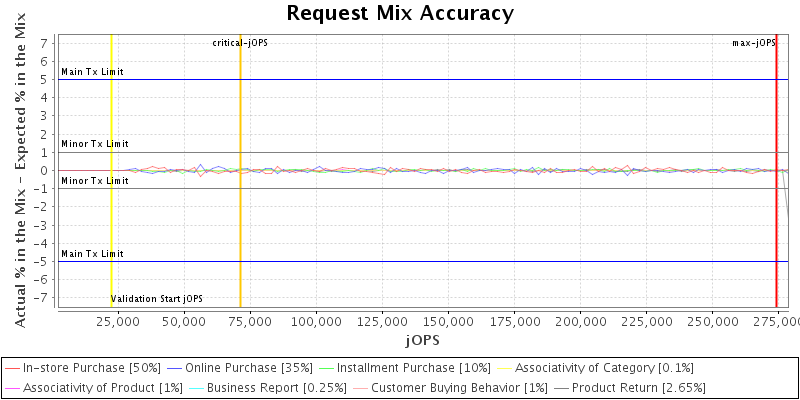

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

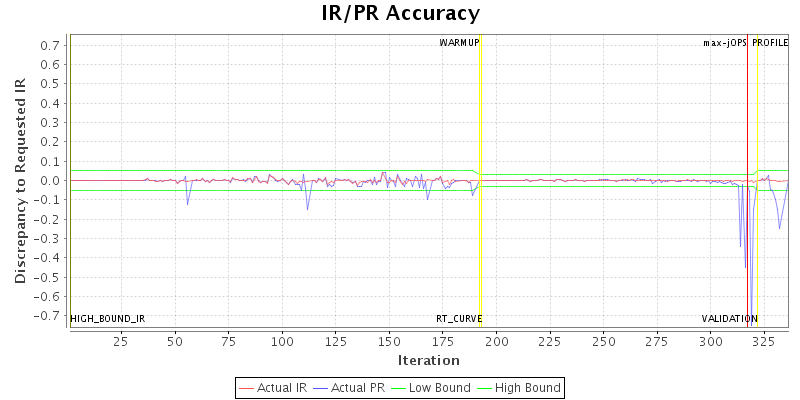

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 450
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 120 270
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 60000
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 120 480
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 224590 IR
High-bound (settled) is 211402 IR
