Lenovo Group Limited IBM System x3650 M5 CODE DEFECT (CD) RESULT
Tested by: Lenovo Group Limited Test Sponsor: Lenovo Group Limited Test location: Taipei, Taiwan Test date: Oct 23, 2014
SPEC license #: 9017 Hardware Availability: Dec-2014 Software Availability: Aug-2014 Publication: Nov 20, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Group Limited
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameIBM System x3650 M5
VendorLenovo Group Limited
Vendor URLhttp://www.lenovo.com
AvailableNov-2014
ModelIBM System x3650 M5
Form Factor2U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz, 45MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32 KB(I) + 32 KB(D) on chip per core
Secondary Cache256 KB (I+D) on chip per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 250 GB SAS 10K RPM
File Systemext4
Memory Amount (GB)512GB
# and size of DIMM(s)16 x 32678MB
Memory Details32GB 4DRx4 PC4-2133P-LD0-10-DC0
# and type of Network Interface Cards (NICs)4x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u20
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM Version 1.8.0_20
AvailableAug-2014
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Operating Mode: Custom Mode
  • CPU C State: Disabled
  • C1 Enable Mode: Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • SELinux disabled
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn3g -Xms4g -Xmx4g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms236g -Xmx236g -Xmn176g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=36 -XX:MaxTenuringThreshold=15 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn3g -Xms4g -Xmx4g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 234938 236444 237950 239456 240962
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 5271 44577 57830 62499 65511 35405
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1506 - / 1506 - / 1506 - / 1506 - / 1506 - / 1506
1000us 3012 / 4518 1506 / 3012 - / 1506 - / 1506 - / 1506 - / 1506
5000us 69276 / 70782 58734 / 60240 12048 / 13554 10542 / 12048 3012 / 4518 - / 1506
10000us 69276 / 70782 64758 / 63252 45180 / 46686 21084 / 19578 4518 / 6024 - / 1506
20000us 70782 / 72288 67770 / 69276 61746 / 63252 57228 / 58734 6024 / 7530 - / 1506
50000us 72288 / 73794 69276 / 70782 64758 / 63252 64758 / 63252 48192 / 42168 1506 / 3012
100000us 73794 / 75300 70782 / 72288 67770 / 69276 64758 / 63252 60240 / 54216 6024 / 3012
200000us 75300 / 76807 72288 / 73794 69276 / 70782 67770 / 63252 61746 / 63252 18072 / 9036
500000us 236444 / 105421 73794 / 75300 72288 / 73794 70782 / 72288 67770 / 63252 61746 / 25602
1000000us 236444 / - 236444 / - 236444 / 85843 236444 / 81325 72288 / 73794 67770 / 63252

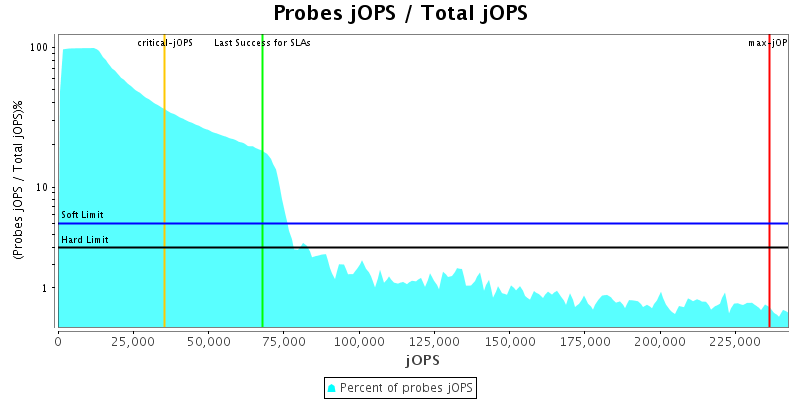

Probes jOPS / Total jOPS

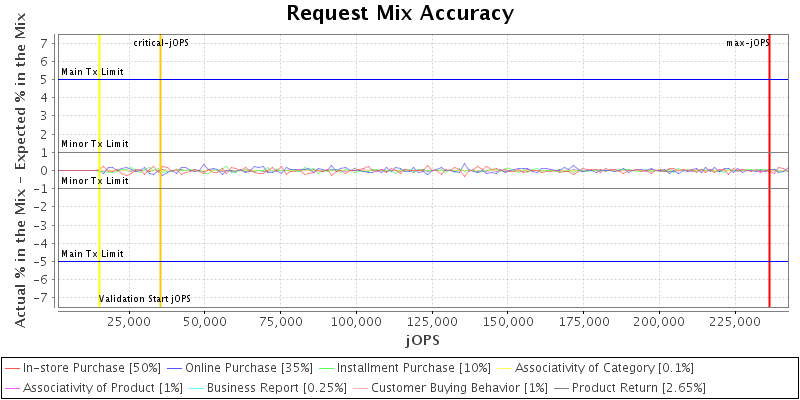

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

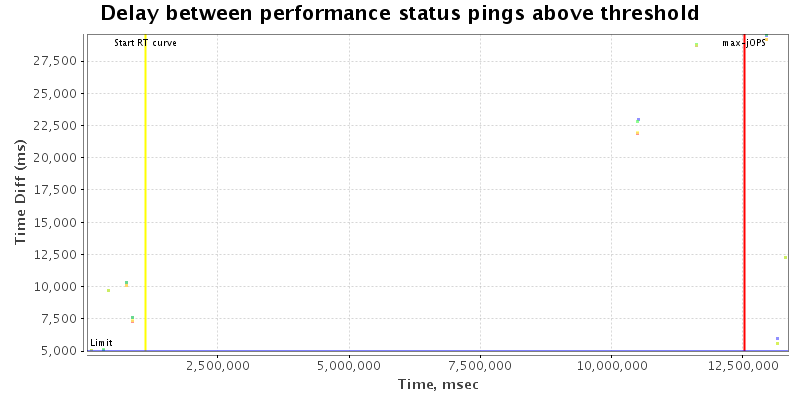

Delay between status pings

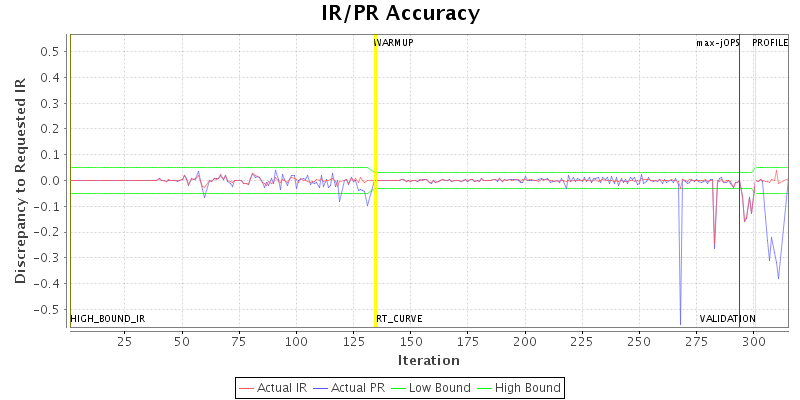

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 480
specjbb.comm.connect.timeouts.connect 60000 6000000
specjbb.controller.handshake.timeout 600000 60000000
specjbb.customerDriver.threads 64 {=64, saturate=128}
specjbb.forkjoin.workers 72 270
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 150601 IR
High-bound (settled) is 139207 IR
